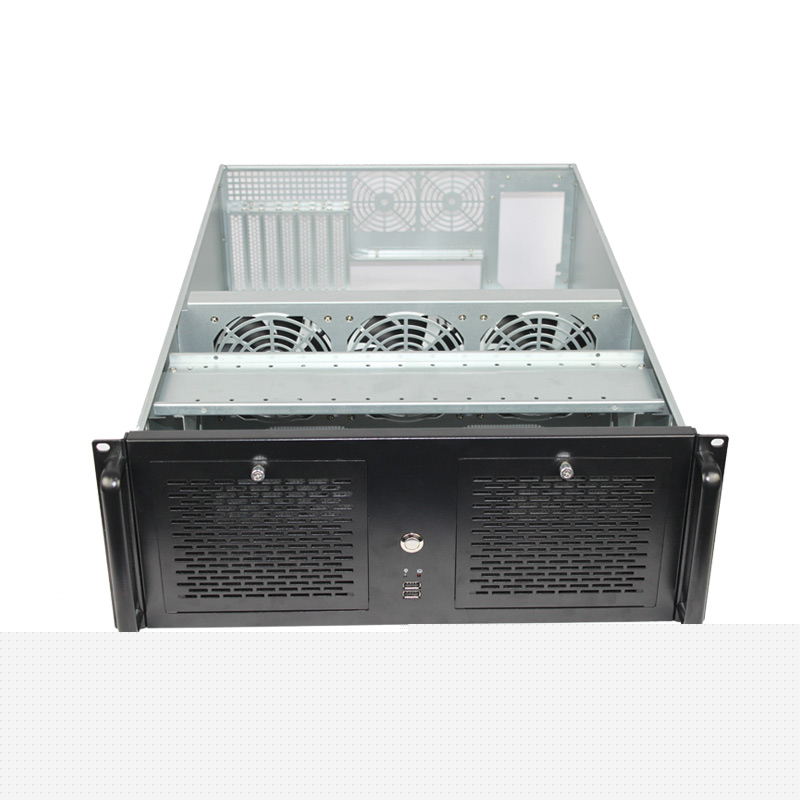

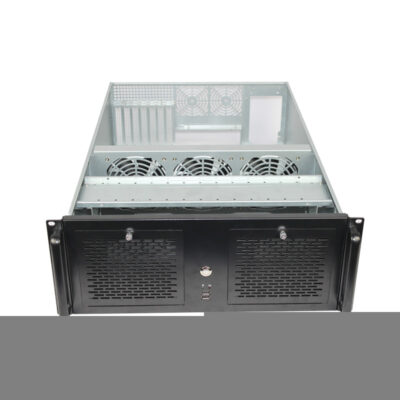

4U 13-Bay ATX Rackmount Chassis for Enterprise Projects

ISC RC4U650F M is a 4U rackmount chassis supporting up to 13 x 3.5-inch HDDs, seven full-height PCI slots, three 12025 fans, ATX PSU configurations and front USB 2.0 for enterprise storage and OEM/ODM procurement.

Categories: , Tags: , ,
Share your love

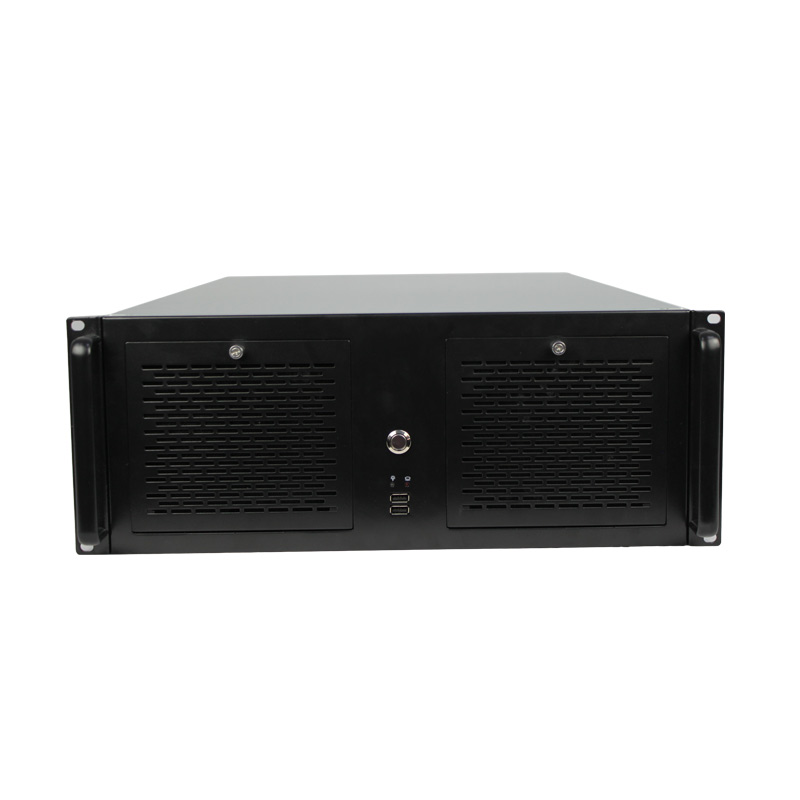

Product Overview: ISC RC4U650F M is a 4U rackmount chassis for storage-focused server integration.
Product Category: 13-bay rackmount case for enterprise IT and data center projects.
Key Configuration: Supports up to 13 x 3.5-inch HDDs, seven full-height PCI slots, three 12025 fans and front USB 2.0.
Compatibility: Suitable for ATX configurations and ATX power supplies; backplane, hot-swap parts, rails and accessories depend on the ordered configuration.
Applications: Enterprise storage, private cloud, security monitoring and managed services.
Procurement Value: Supports OEM/ODM development, prototyping, bulk sourcing and distributor cooperation.

Model

ISC-RC4U650F-M
Dimensions(mm)

482(W)*650(D)*178 mm(H)
Main Board

12"* 13"(305*340MM)
Hard Disk

Thirteen 3.5-inch Hard Disks
CD-ROM

None
Power

ATX Power

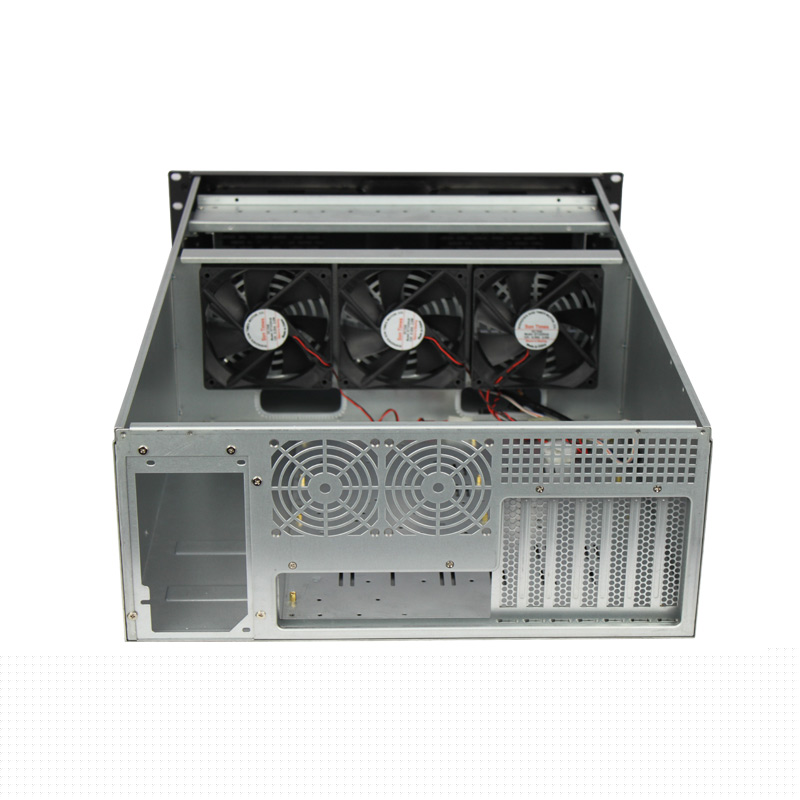

Fan

Three 12025 Fans

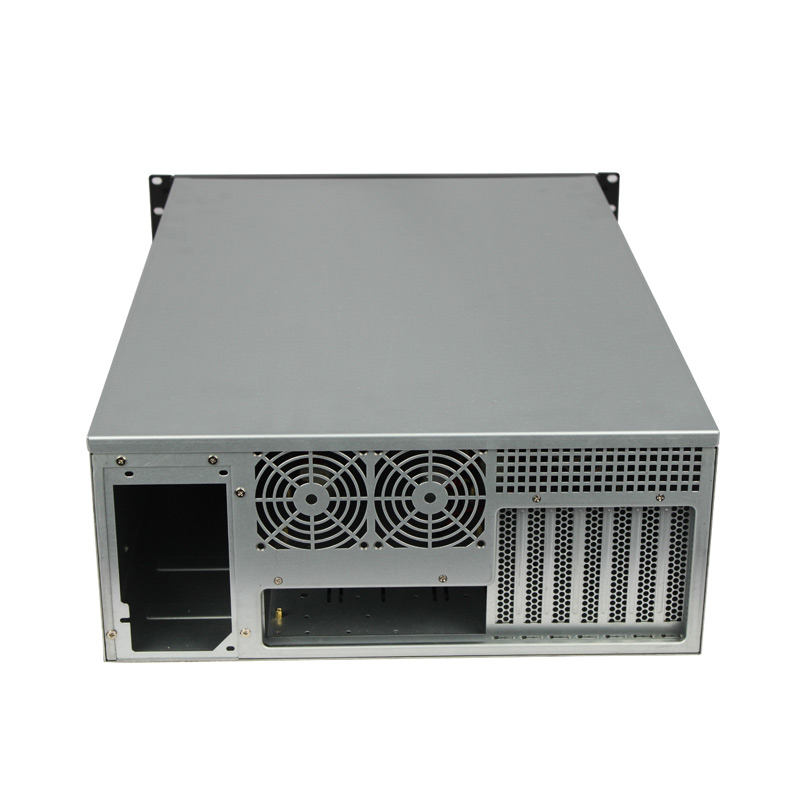

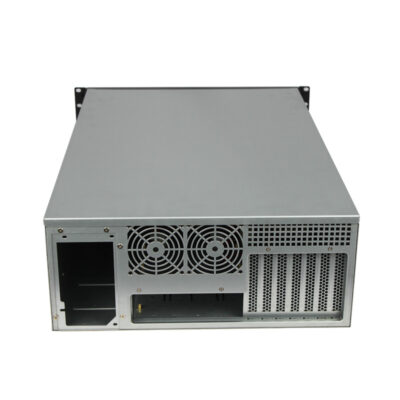

Expansion Slot

Seven Full High and Straight Slots

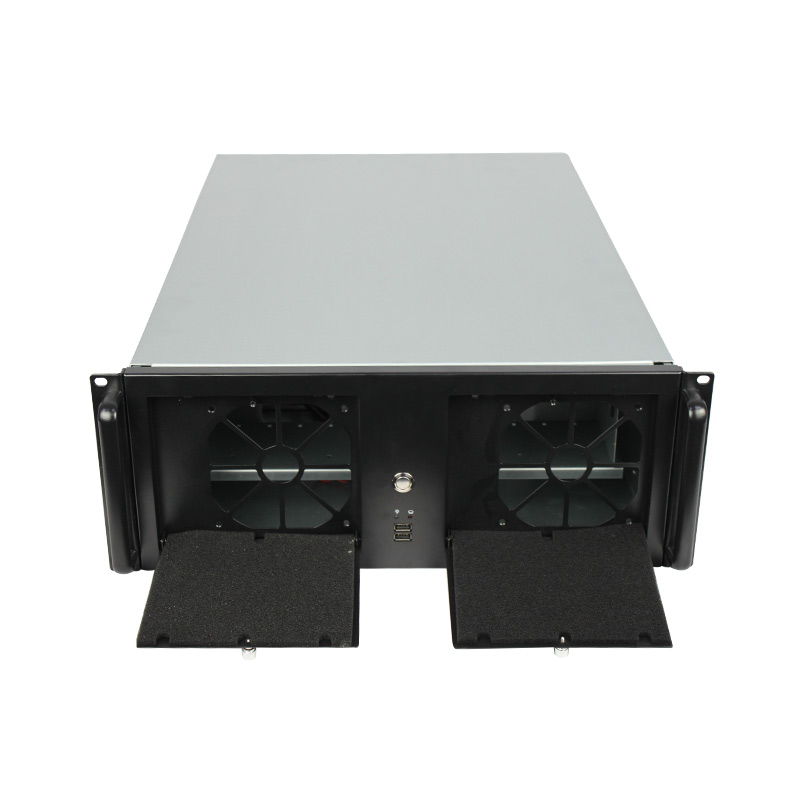

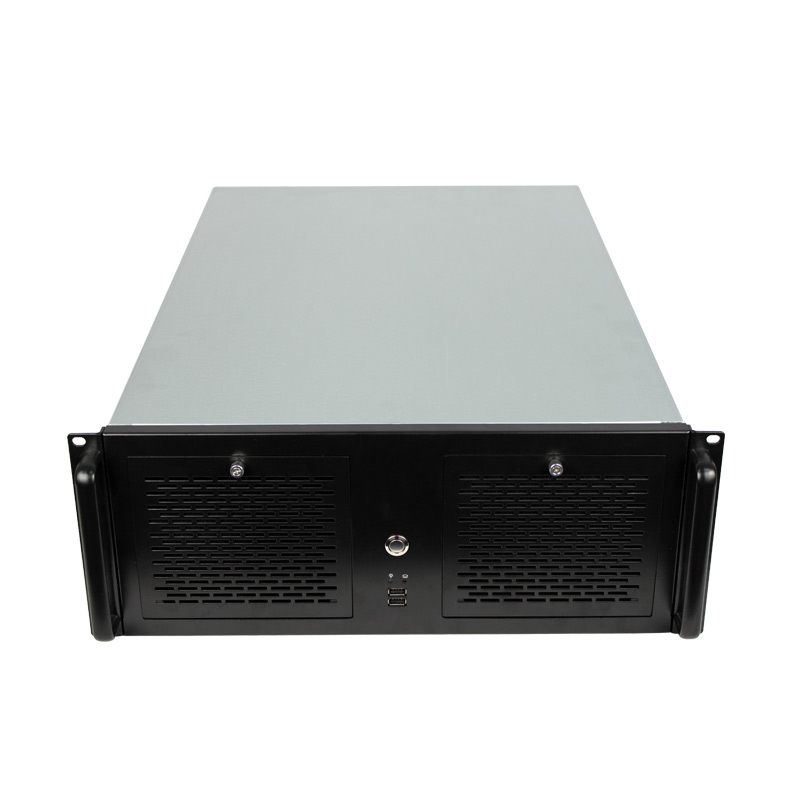

Panel Setting

Two USB2.0; One Power Switch;One Power Indicator;One HD Indicator
Case Material

Ma Steel flowers-free zinc plating
Material Thickness

1.2MM
Packaging size

80*56*28.5CM(0.128CBM)
Gross weight

15.465KG
N.W

12.308KG
