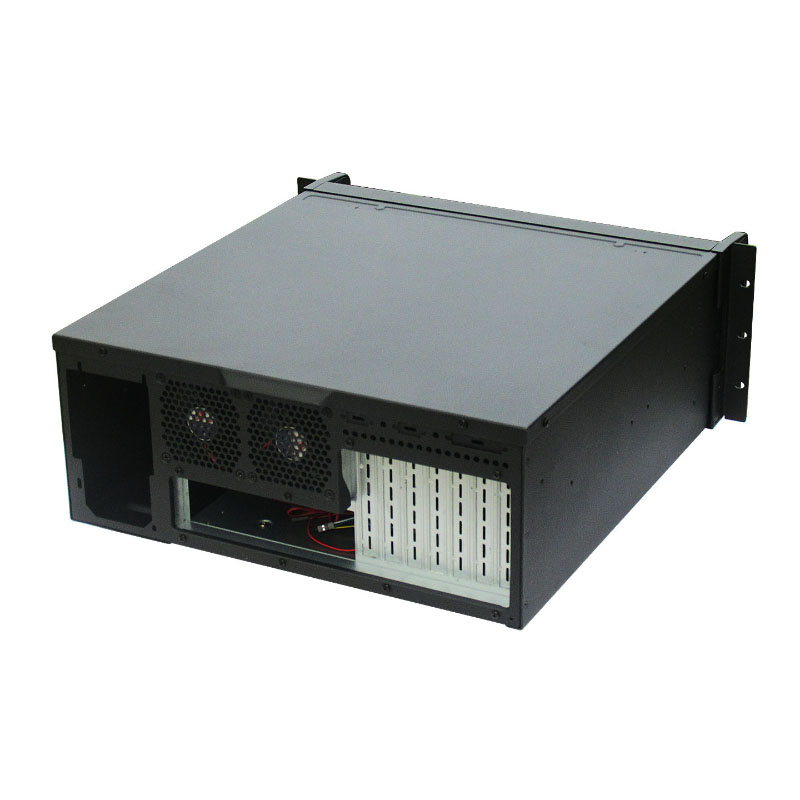

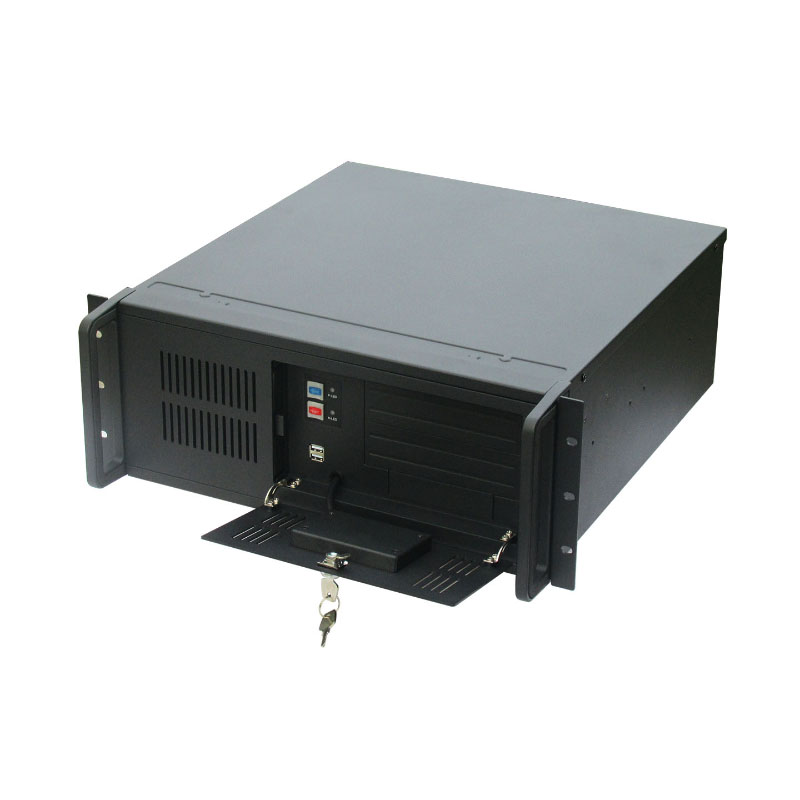

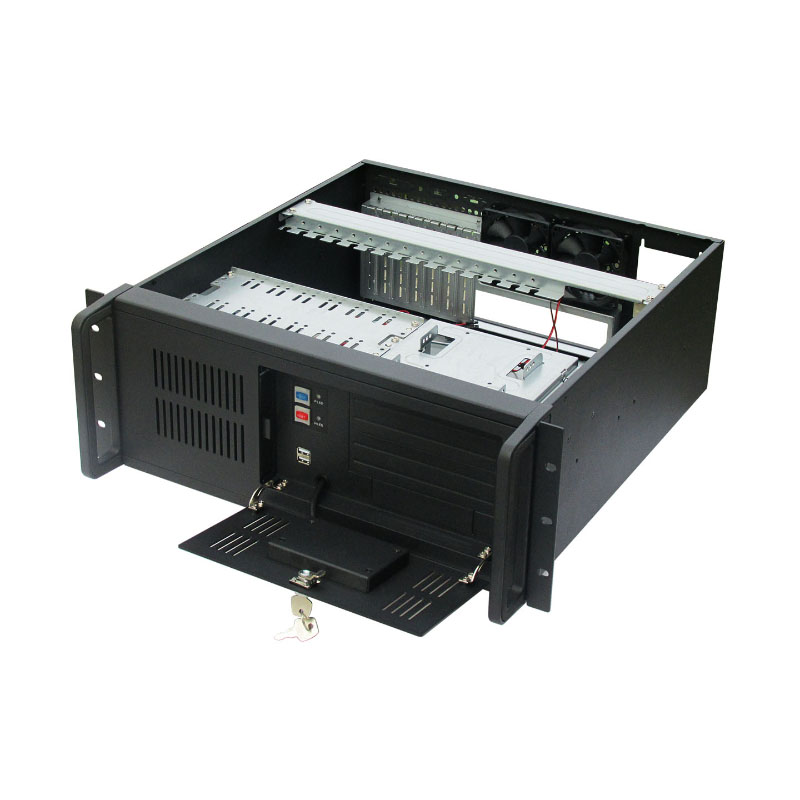

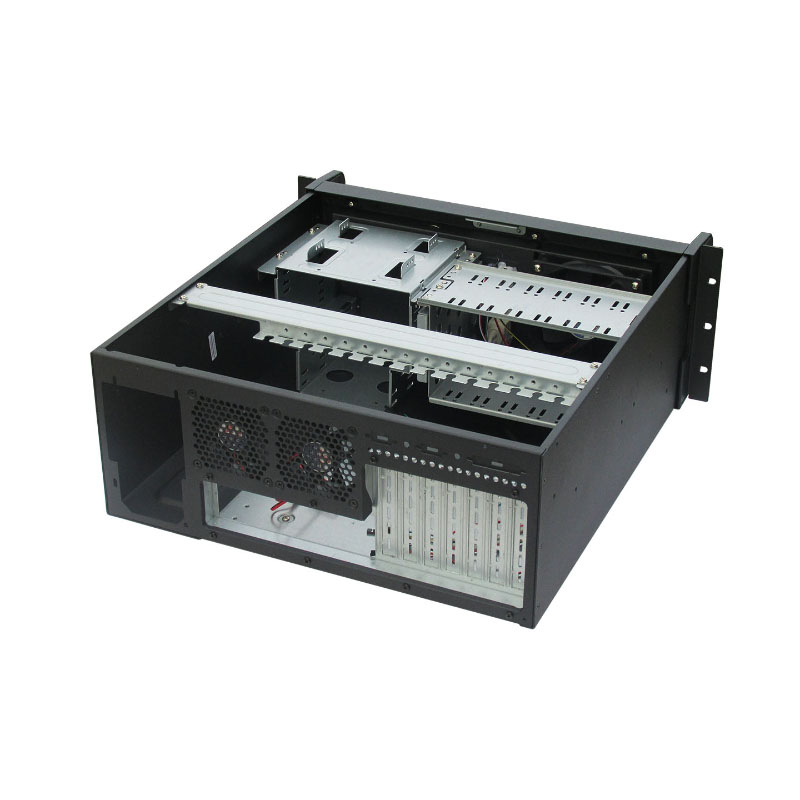

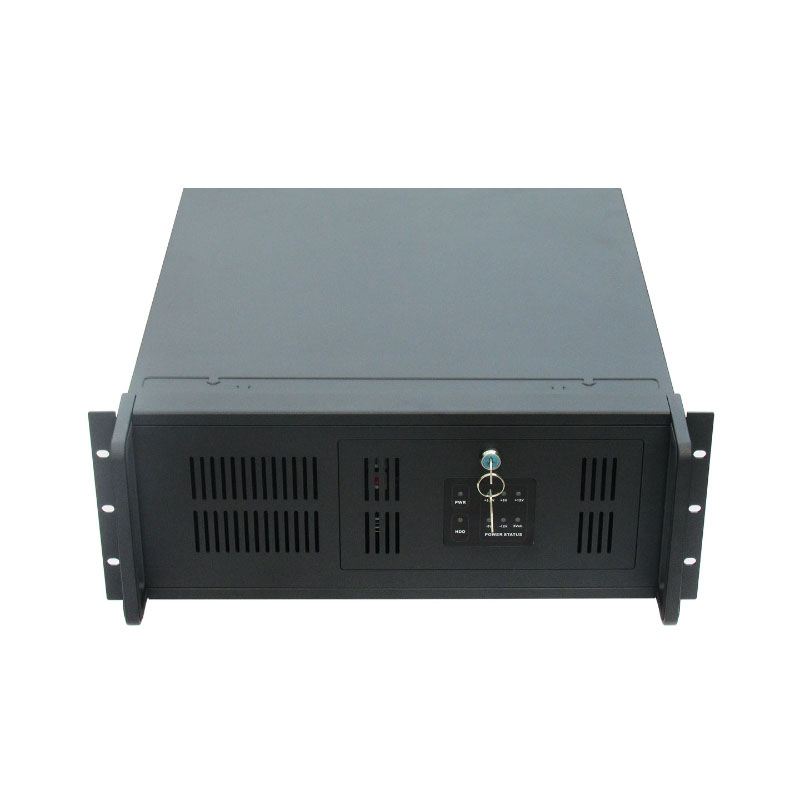

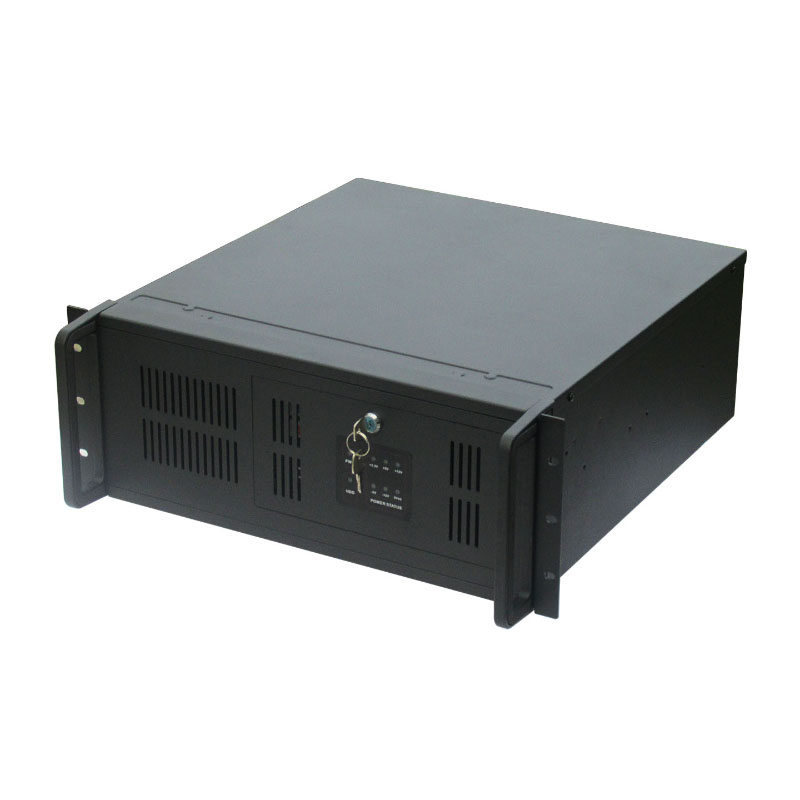

ISC-RC4U510HB-T is a 4U rackmount chassis with eight 3.5-inch bays, two 5.25-inch bays, seven full-height PCI/PCIe slots, front USB, PS2 PSU support, and airflow for industrial control, IoT, security, and integrator procurement.
ISC-RC4U510HB-T is a 4U rackmount chassis for industrial system integration.
Product Category:
Rackmount Case for storage, control, security, and edge deployments.
Key Configuration:
Eight 3.5-inch HDD bays, two 5.25-inch bays, seven full-height PCI/PCIe slots, front USB, 1.2 mm SGCC, one 120 mm front fan, and two 80 mm rear fans.
Compatibility:
Supports motherboards up to 12 x 9.6 inches and PS2 power supplies. Confirm hot-swap parts, backplane, rails, PSU, and drives before ordering.
Applications:
Industrial control, IoT, automation, transportation, and surveillance.
Procurement Value:
For integrators, OEM buyers, distributors, and volume chassis projects.
| Model | ISC-RC4U510HB-T |
|---|---|
| Dimensions (mm) | Depth 450mm × Width 427mm × Height 177mm, standard rack-mounted industrial chassis |
| Material | Environmentally friendly, fingerprint-resistant 1.2mm/SGCC |
| HDD slot | 8 3.5" hard drive bays |
| FDD slot | 1 3.5" floppy drive bay, compatible with 3.5" hard drives |
| CD-ROM slot | 2 5.25" optical drive bays |
| Power supply | Standard PS2 power supply |
| Fan slot | 1 12025 fan on the front panel, 2 8025 fans on the rear window |
| Expansion space | 7 PCI/PCIE full-height expansion slots |
| USB interface | Supports 2 front USB ports |
| Suitable for motherboard | Supports motherboards of 12"×9.6" and below |
| Application area | Widely used in industrial control, intelligent transportation, mechanical automation, Internet of Things, security monitoring and other fields |
ISC-SC1U650A-H10-T is a 1U SGCC steel rackmount chassis with 10 front 2.5-inch…

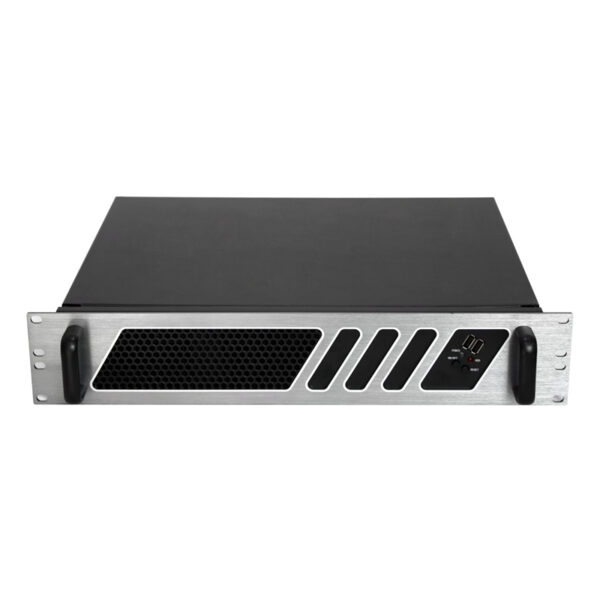

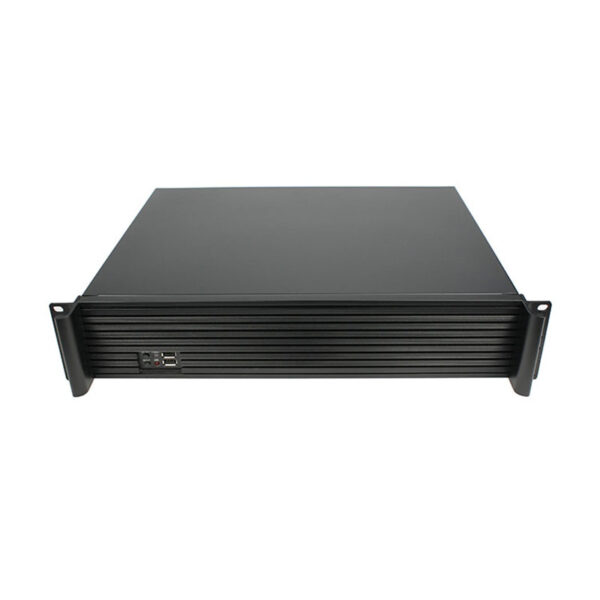

ISC-RC2U350L1-M is a 2U SGCC steel rackmount chassis for up to a…
Compact 2U rackmount server chassis in 1.2 mm SGCC steel, with configurable…
The ISC-SC1U650F-M is a 650 mm-deep 1U rackmount chassis for 12 x…

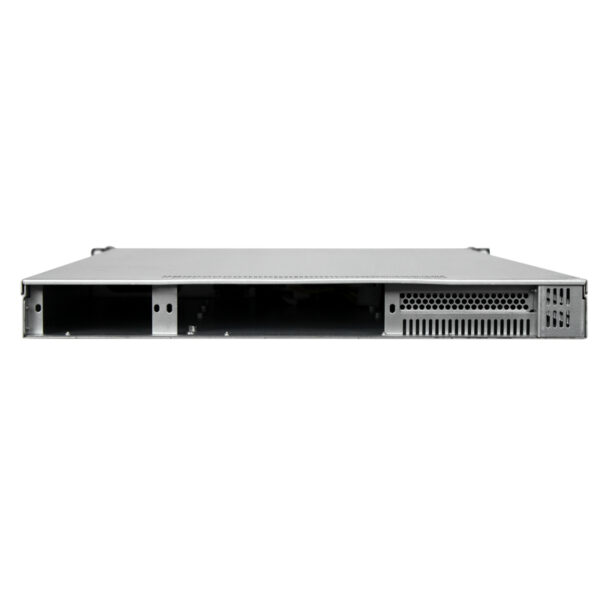

ISC-SC1U650L2-M is a 1U rackmount server chassis with four 2.5 drive positions,…
