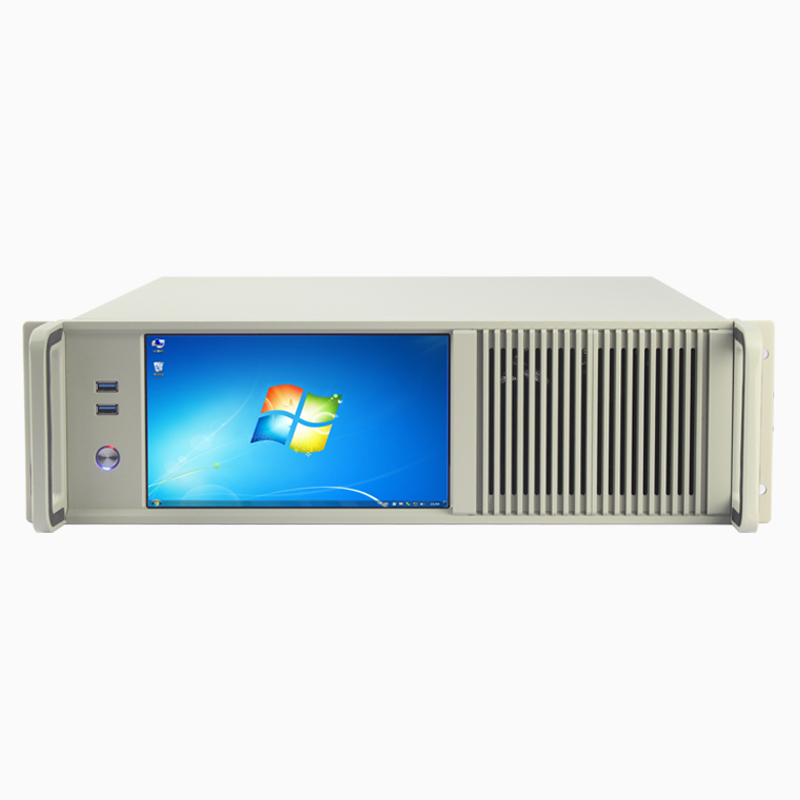

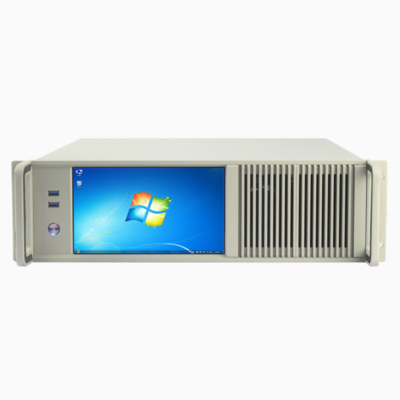

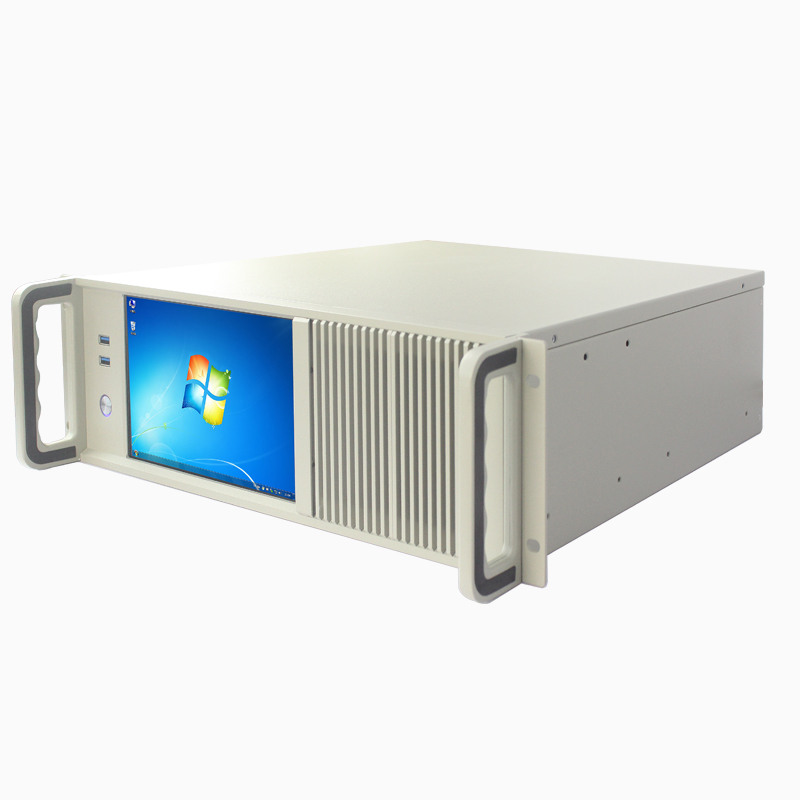

ISC RC3U400LC M is a 3U rackmount server chassis for ATX, M-ATX and ITX builds, with 8 x 3.5-inch drive support, 4 PCIe slots and a 120mm fan. Suited to storage, enterprise IT and OEM/ODM procurement.
The ISC RC3U400LC M is a 3U rackmount chassis made from 1.2 mm SGCC steel with an aluminum front panel. Its 400 mm depth, top-access design, handles and 120 mm fan support durable rack installation, efficient airflow and convenient assembly or maintenance.
It supports ATX, M-ATX and ITX motherboards, eight 3.5-inch drives and four PCIe slots for storage, enterprise IT, edge and industrial systems. Hot-swap, backplane, PSU and rail options require confirmation. The chassis targets integrators, data center teams, distributors and OEM/ODM buyers seeking configurable enclosures for project sourcing, bulk procurement and scalable deployment.
| Model | ISC-RC3U400LC-M |
|---|---|
| Container loading quantity | 20" 350 40：890 40HQ：940 |
| Dimensions(mm) | 482(W)*400(D)*133 mm(H) |
| Main Board | ATX 12*9.6" (305*245mm) M-ATX：9.6*9.6"(245*245mm) ITX ：7*7"(170*170mm) |
| Hard Disk | 8*3.5" HDD |
| CD-ROM | None |
| Power | ATX Power Supply |
| Fan | 1*12025 fan (4PIN interface) |
| Expansion Slot | 4*PCI-E slot |
| Panel Setting | 2*USB3.0; One Power Switch with indicator; 8.9" touch screen |
| Case Material | SGCC and Aluminum panel |
| Material Thickness | 1.2MM |
| Packaging size | 58*55*24CM(0.082CBM) |
| Gross weight | 7.6 KGS |
| N.W | 6.5 KGS |
