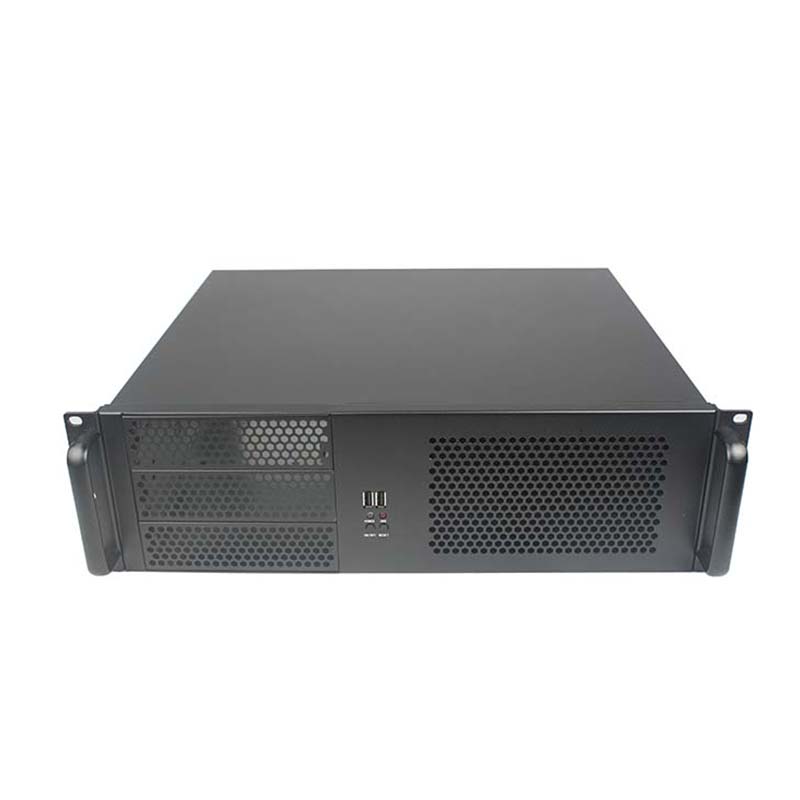

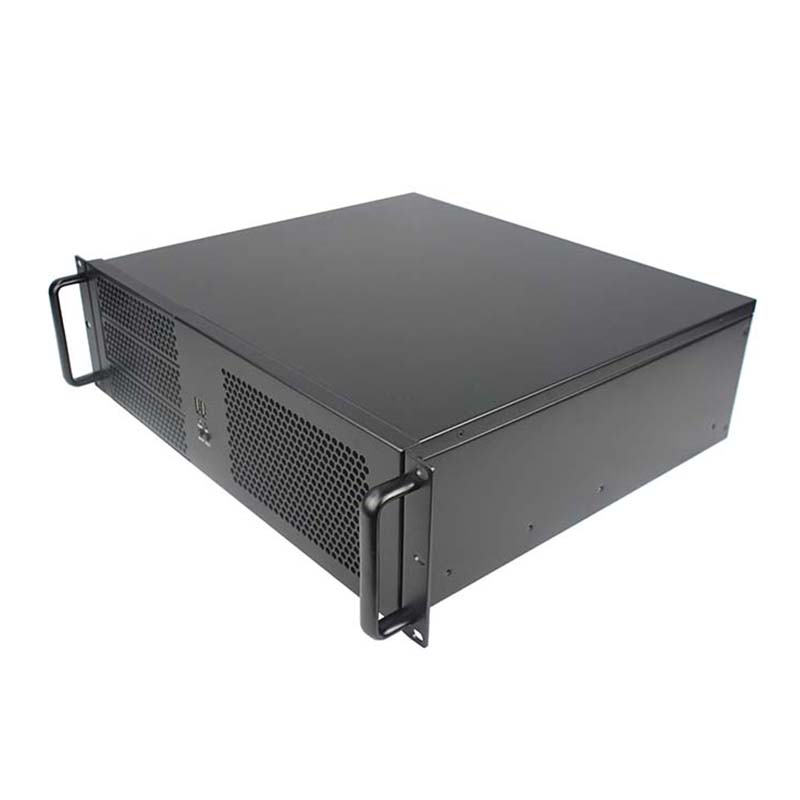

ISC-RC3U390F-M is a 3U rackmount chassis for ATX builds, with eight 3.5-inch HDD bays, three 5.25-inch bays, five full-height slots, ATX PSU support, and two 8025 fans. Suited to enterprise storage, system integration, wholesale, and OEM/ODM projects.

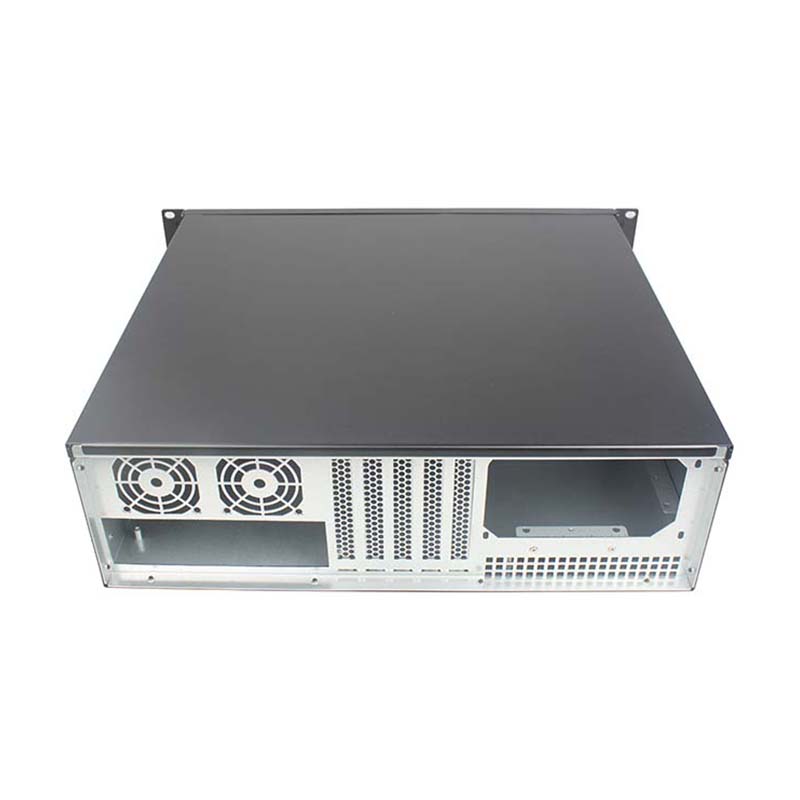

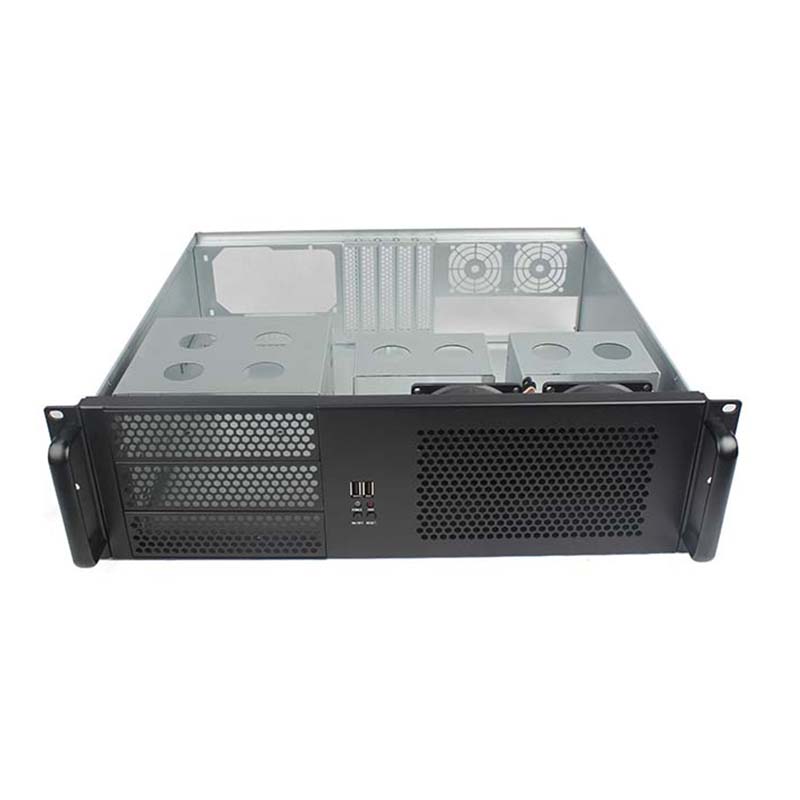

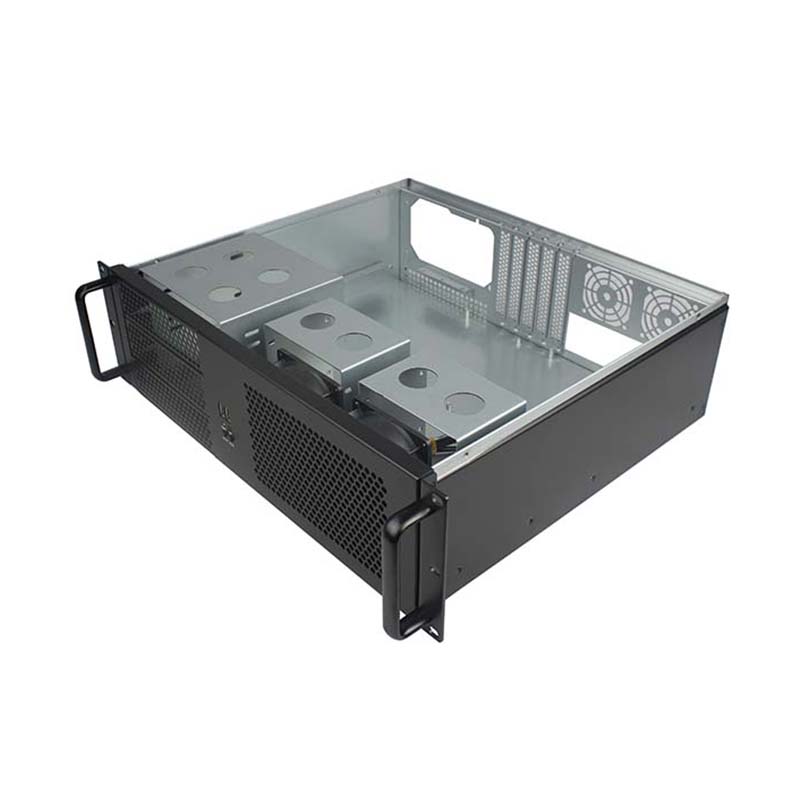

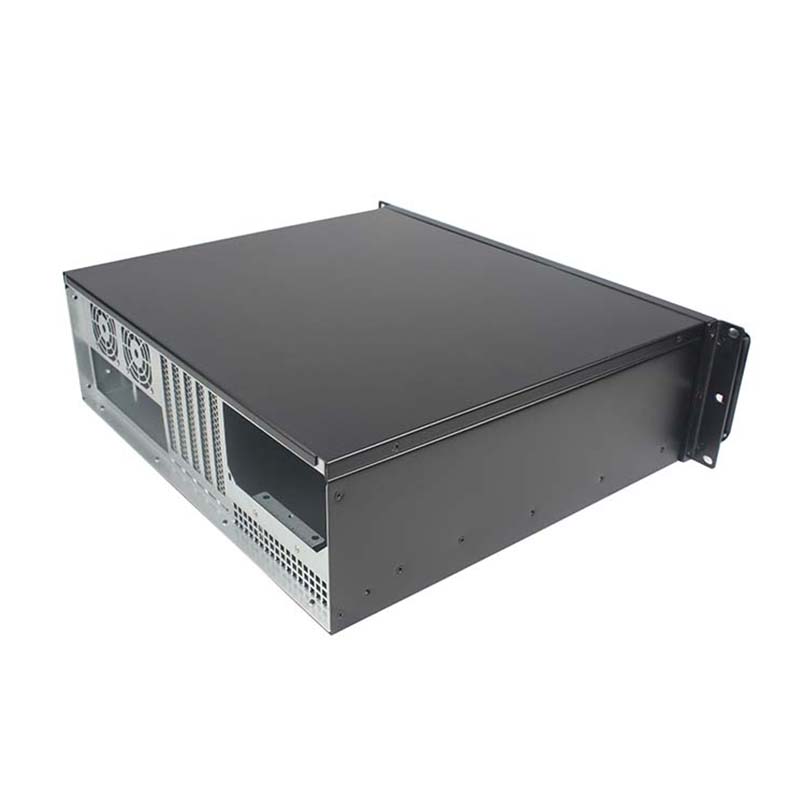

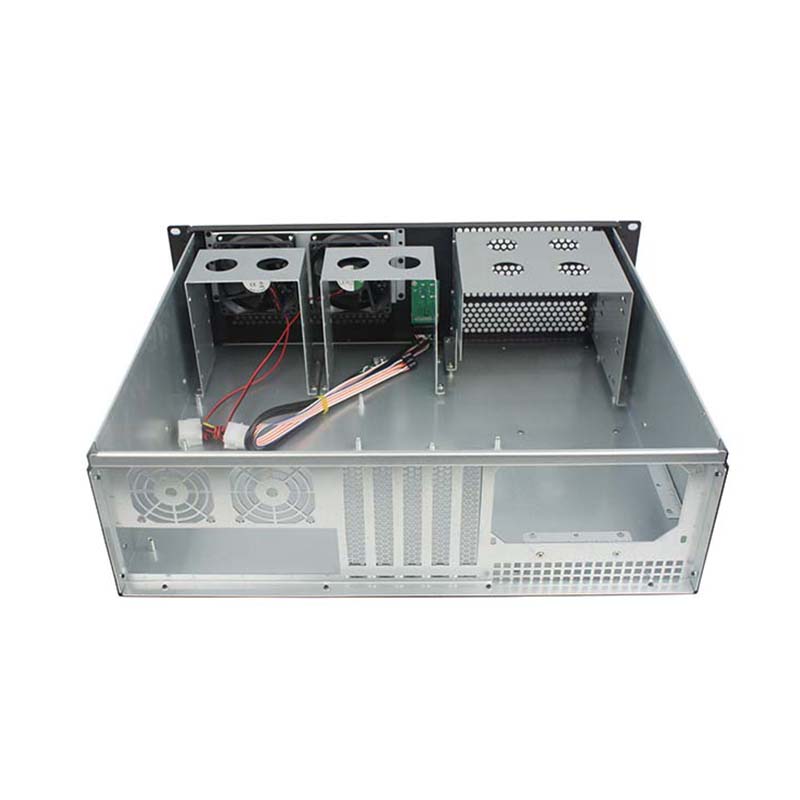

ISC-RC3U390F-M is a 3U rackmount chassis made from 1.0 mm zinc-plated steel for rack deployment. A 390 mm depth, two 8025 fans, front USB 2.0 ports, switches, and status indicators support airflow and routine service. Hot-swap hardware, backplane, rails, locks, and accessories are not specified; confirm before ordering.

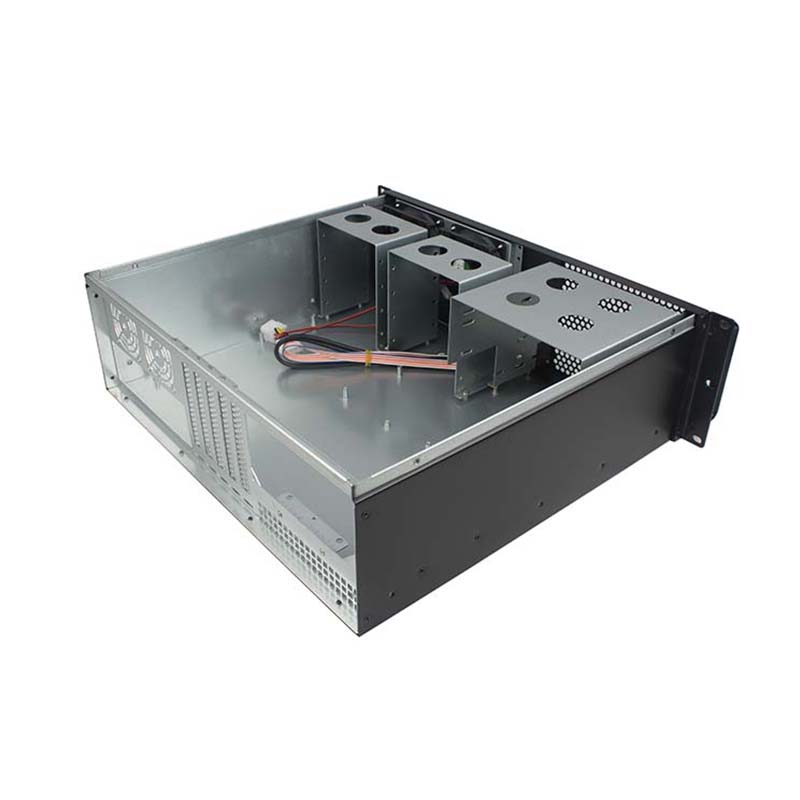

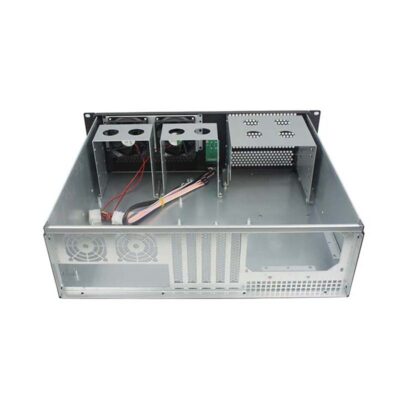

For enterprise storage, private cloud, monitoring, research, and general server workloads, it supports an ATX motherboard up to 305 × 245 mm, eight 3.5-inch HDDs, three 5.25-inch devices, five full-height slots for selected expansion cards, and an ATX PSU. It targets integrators, data-center operators, OEM customers, distributors, and project buyers needing bulk procurement and OEM/ODM support.
| Model | ISC-RC3U390F-M |
|---|---|
| Dimensions(mm) | 482(W)*390(D)*133MM(H) |
| Main Board | 12"*9.6"(305*245MM) |
| Hard Disk | Eight 3.5-inch Hard Disks |
| CD-ROM | Three 5.25-inch CD-ROMs |
| Power | ATX PSU |
| Fan | Two 8025 Fans |
| Expansion Slot | Five Full High and Straight Slot |
| Panel Setting | Two USB2.0; One Power Switch; One Restart Switch; One Power Indicator and One HD Indicator |
| Case Material | Ma Steel flowers-free zinc plating |
| Material Thickness | 1.0MM |
| Packaging size | 58*55*24 CM |
| Gross weight | 7.58KG |
| N.W | 5.85KG |
