ISC-RC2550A-L is a 2U SGCC steel rackmount chassis with three 80mm fans, flexible six-drive storage, ATX, Micro ATX and Mini-ITX support, 7 half-height PCIe slots, and multiple PSU formats for integrators, enterprise storage, and OEM/ODM procurement.
Built from 1.0 mm SGCC steel, the ISC-RC2550A-L is a durable 2U rackmount enclosure for enterprise IT, storage, edge, and industrial use. Three 80 mm fans support internal airflow, while the front USB 2.0 port, power and restart controls, and status indicators aid routine operation and service.
The chassis supports ATX, Micro ATX, and Mini-ITX boards up to 12 x 9.6 inches, with 6 x 3.5-inch bays or 4 x 3.5-inch plus 2 x 2.5-inch bays, 7 half-height PCIe slots, and 1U, 2U, or ATX PSU formats. It suits NAS, private cloud, monitoring, and system-integration projects for integrators, operators, and distributors. Hot-swap, backplane, rail, and accessory options should be confirmed for OEM/ODM or volume orders.
| Model | ISC-RC2550A-L |
|---|---|
| Color | Silver |
| Materia | Quality Fine 1.0mm SGCC |

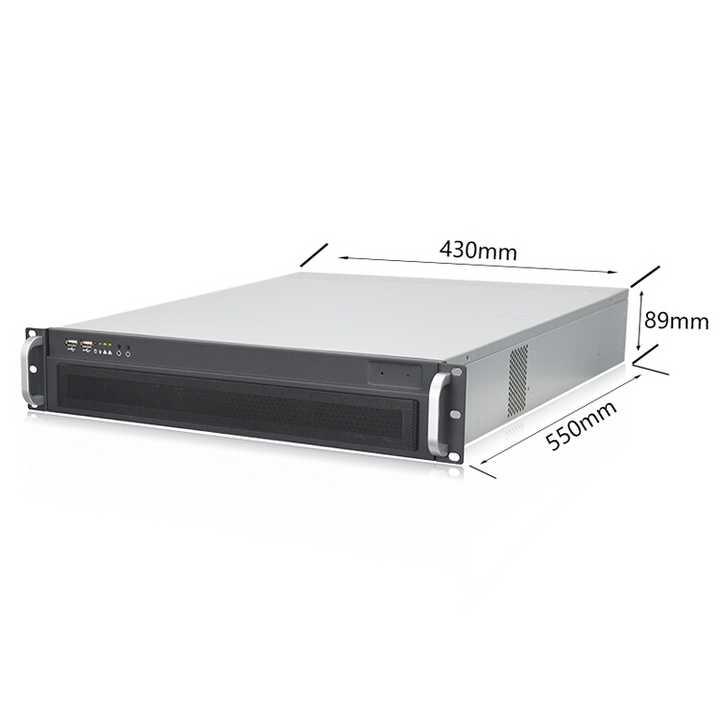

| Dimension D*W*H | L550mm*W430mm*H89mm |
| HDD Bay | 6*3.5" bays or 4*3.5"+2*2.5" bays |

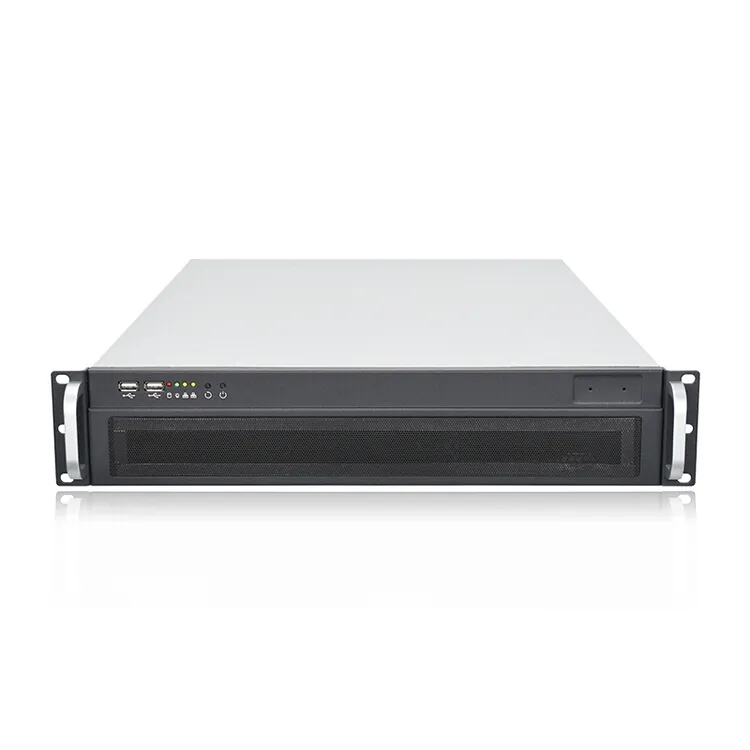

| Front Panel Control | 1 USB2.0, 1 power button, 1 restart button, 1 hard disk indicator, 1 system fault indicator, 1 network indicators |

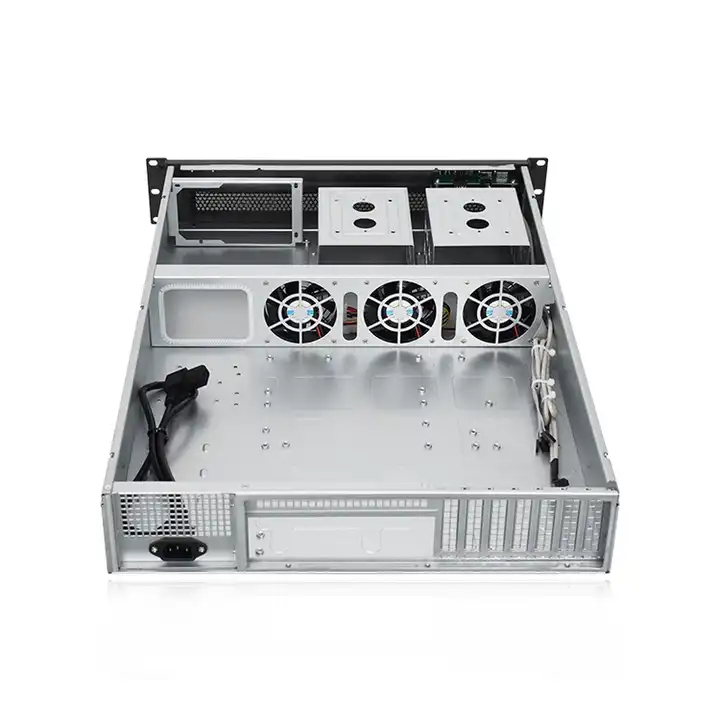

| Cooling Fan | 3pcs 80mm fans |
| Suitable Motherboard | ATX(12"*9.6")/Micro ATX(9.6"*9.6")/Mini-ITX(6.7"*6.7") |
| Suitable PSU | 1U Single / 2U single/ATX standard power supply |
| Epansion Space | 7 half-height PCIe expansion card slots |
| Packaging Details | Carton with PE foam |
| Selling Units | Single item |
| Single package size | 67X55X21 cm |
| Single gross weight | 11.000 kg |
