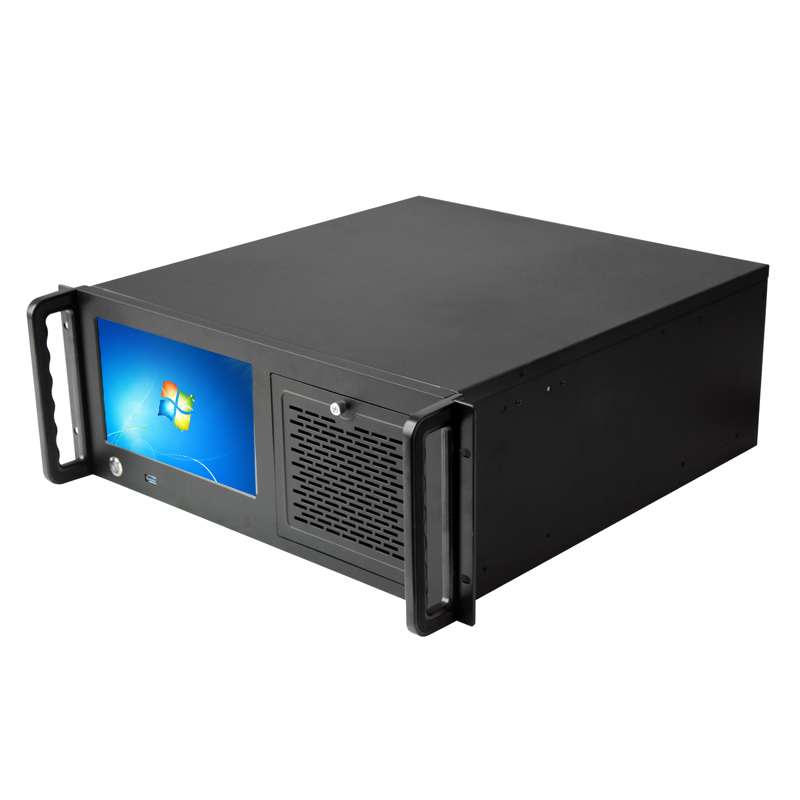

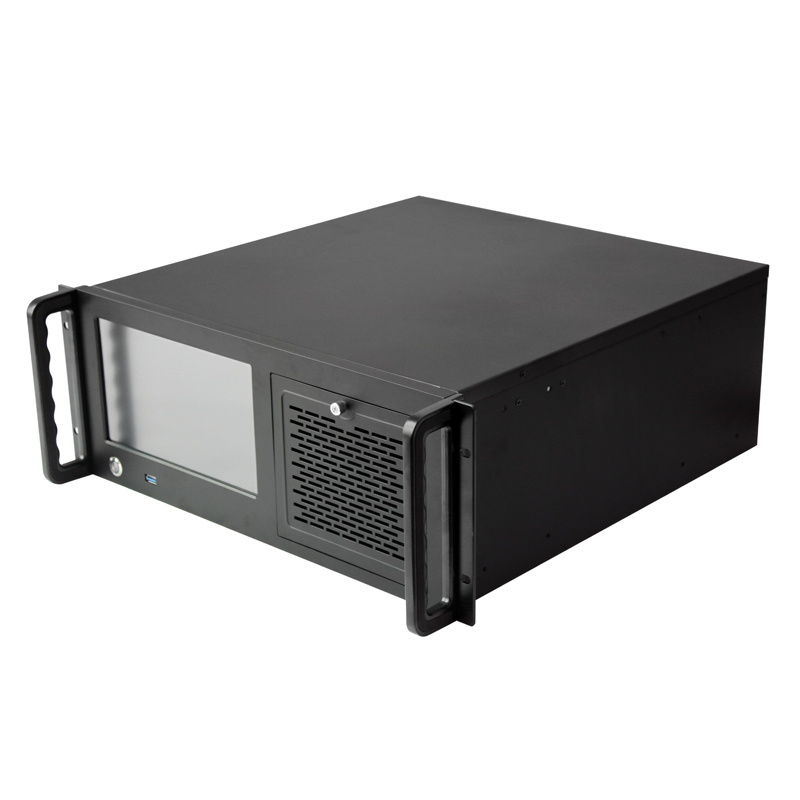

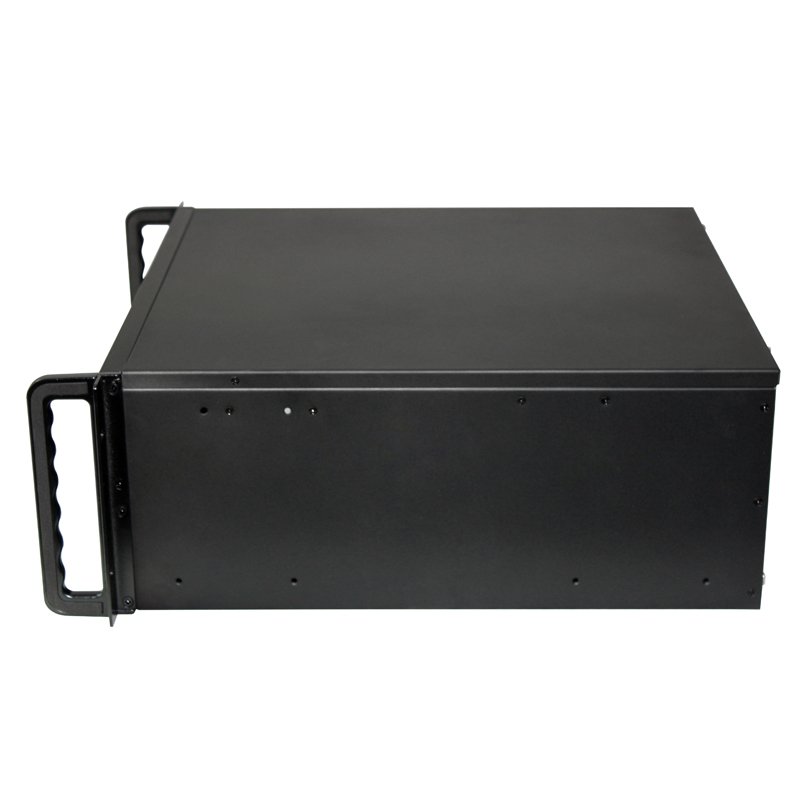

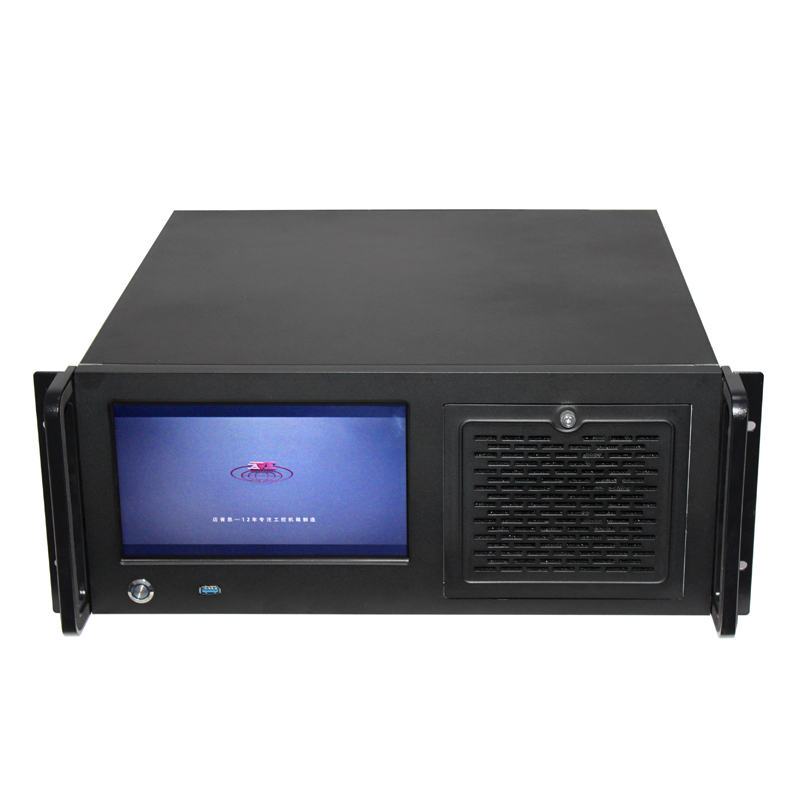

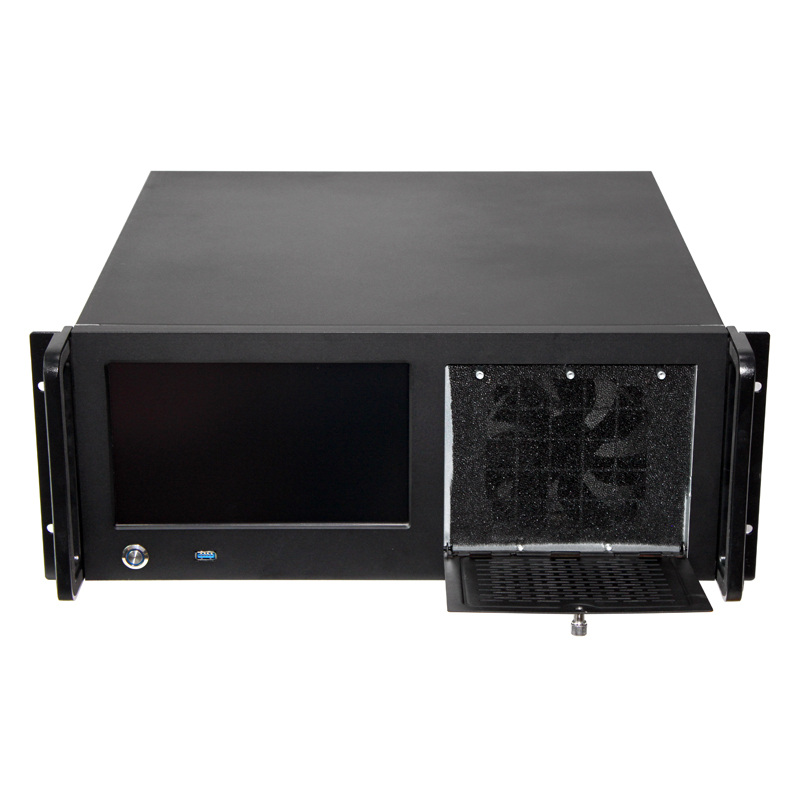

The ISC-RC4U450C-M is a 4U SGCC steel rackmount case with 7 full-height PCIe slots, flexible 3.5/2.5-inch drive mounting, ATX PS2 PSU support, and front controls for enterprise servers, HPC, storage, system integration, and OEM/ODM procurement.
ISC-RC4U450C-M is a 4U rackmount server chassis for enterprise computing, storage, HPC, and system integration.
Product Category:
4U Rackmount Case.
Key Configuration:

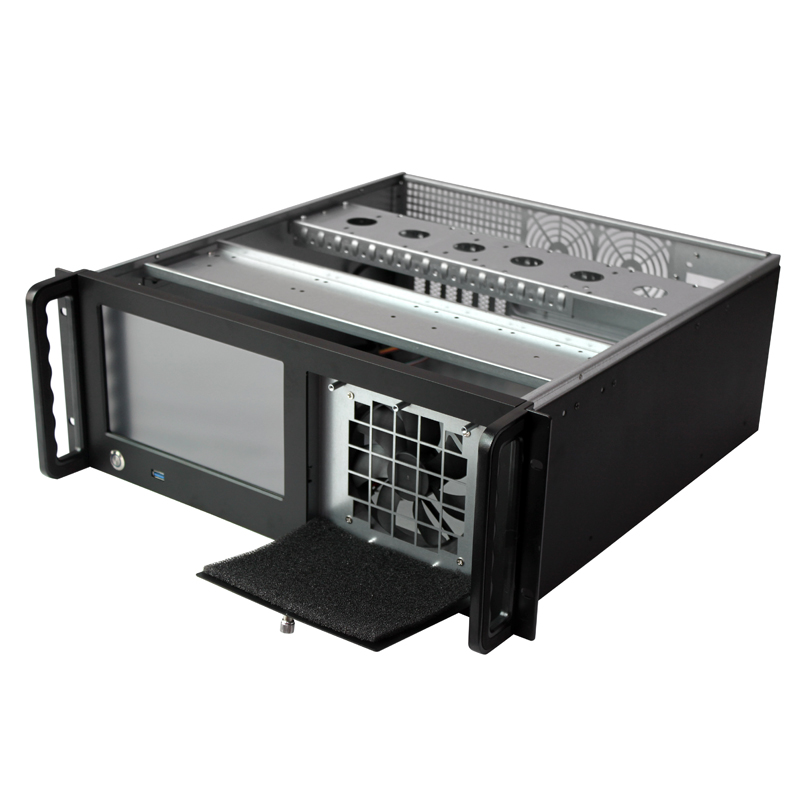

482 x 450 x 178 mm, 1.2 mm SGCC steel, 7 full-height PCIe slots, flexible 3.5/2.5-inch drive mounting, one 120 mm fan, and rear support for two 60 mm fans.
Compatibility:
Supports a standard ATX PS2 PSU. Motherboard, GPU, backplane, hot-swap, rails, and accessories depend on configuration.
Applications:
Data centers, private cloud, industrial IT, research, and managed services.
Procurement Value:
For integrators, OEM/ODM buyers, distributors, and volume sourcing.
| Model | ISC-RC4U450C-M |
|---|---|
| Dimensions(mm) | 482(W)* 450(D)*178MM(H) |
| Main Board | 12"*9.6"（305*245mm) |
| Hard Disk | Two 3.5-inch HDDs or one 3.5-inch + two 2.5-inch HDDs |
| CD-ROM | None |
| Power | Ordinary desktop ATX power supply PS2 |

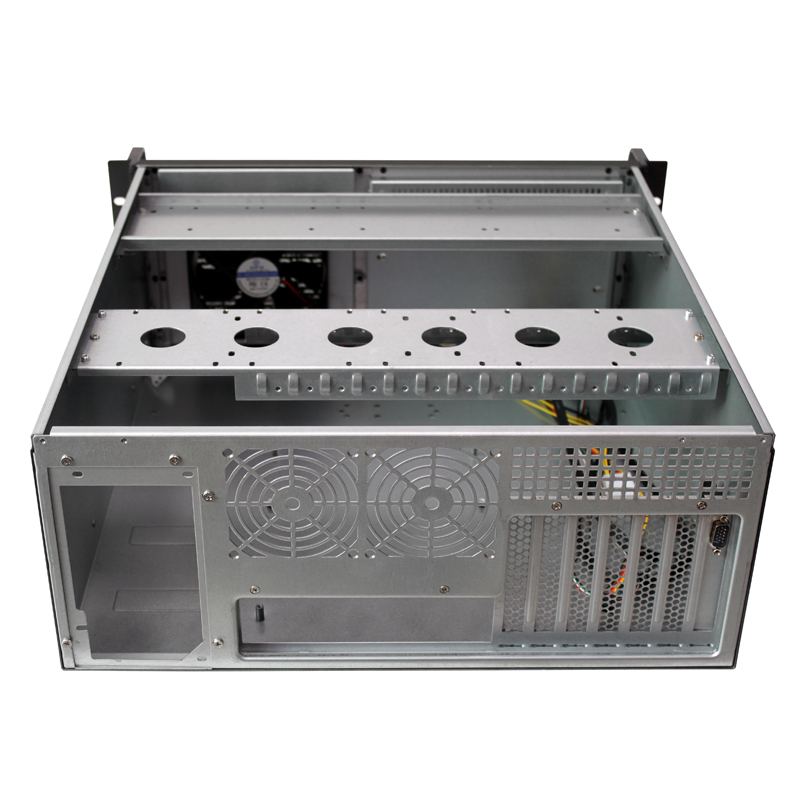

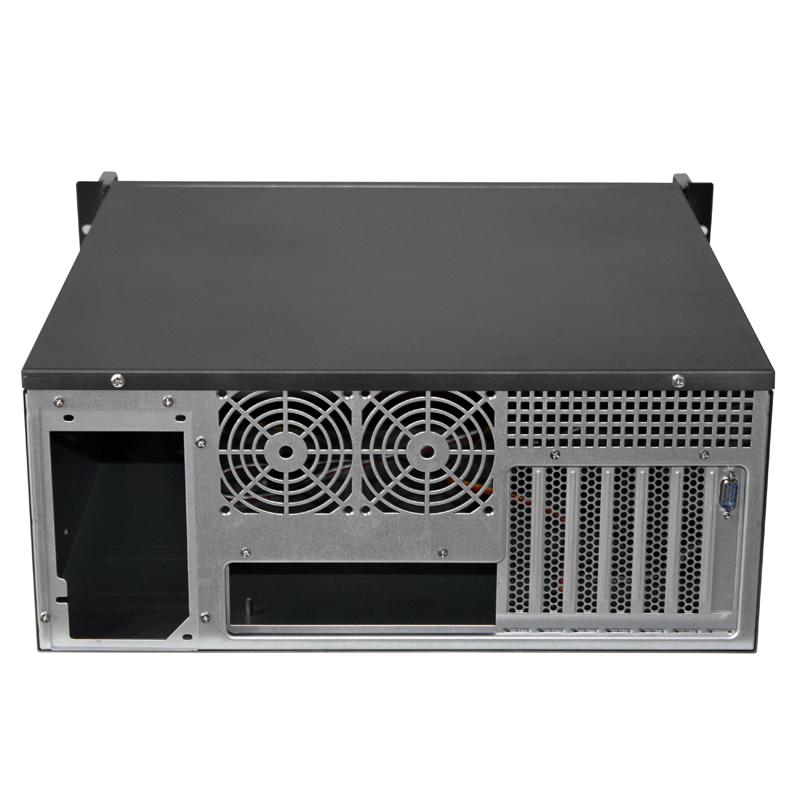

| Fan | 1×12 fan, 2x6CM fans are reserved for the rear window |

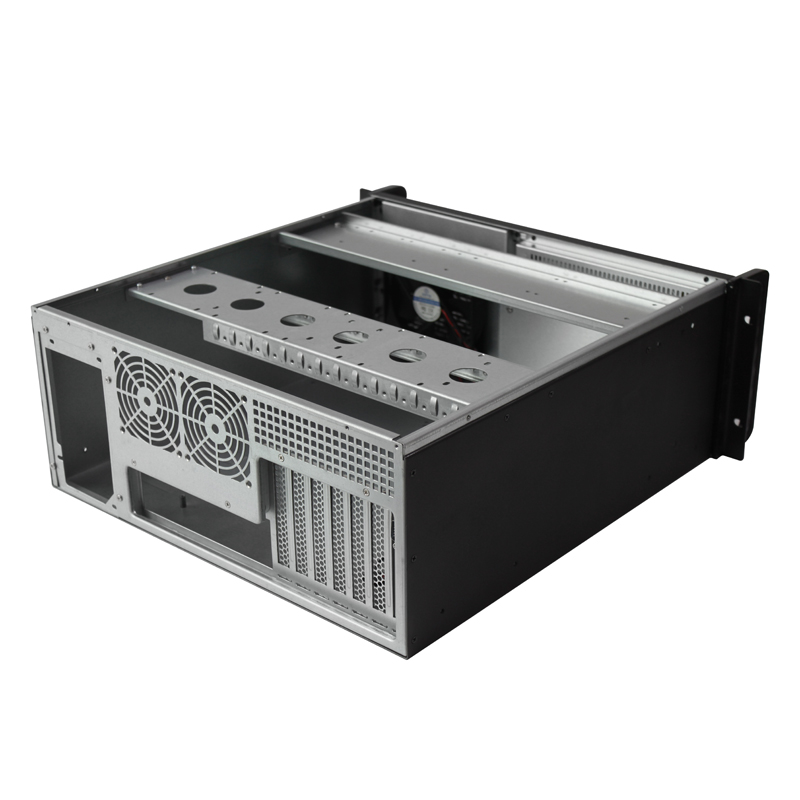

| Expansion Slot | 7 full height straight slots |

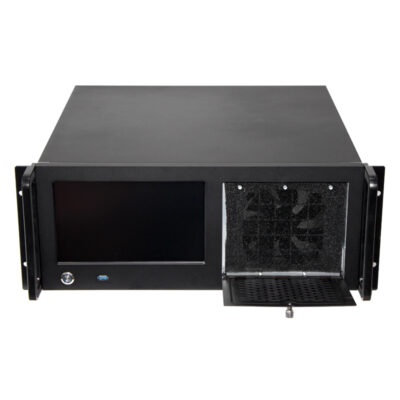

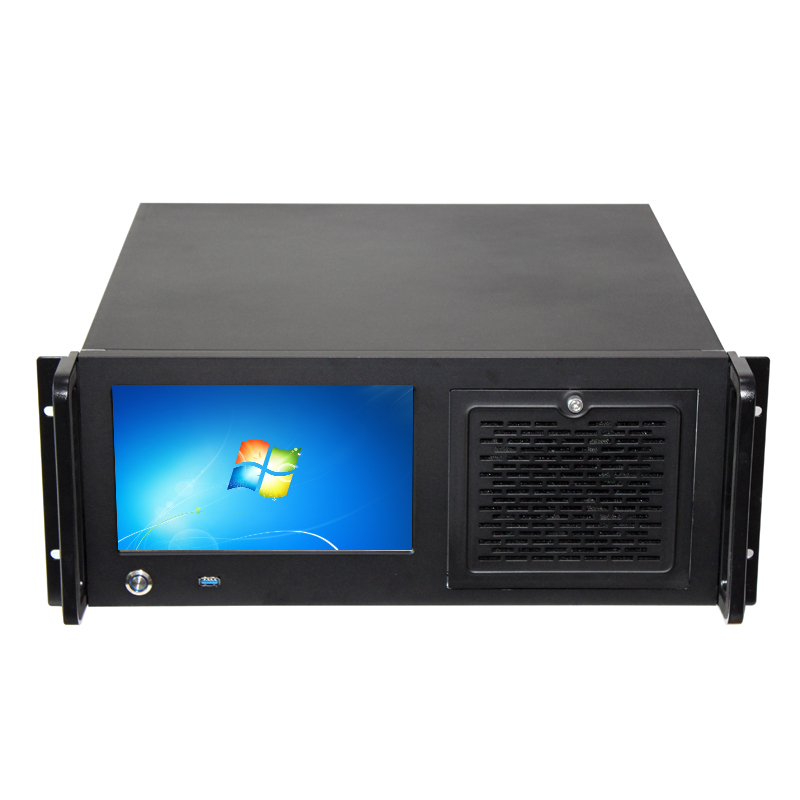

| Panel Setting | One Power Switch;One Restart Switch;One Power Indicator;HDD Indicator;Two USB2.0 |
| Case Material | SGCC |
| Material Thickness | 1.2MM |
| Packaging size | 59.5* 55.5*28CM (0.092CBM) |
| Gross weight | 8.91KG |
| N.W | 13.95KG |
