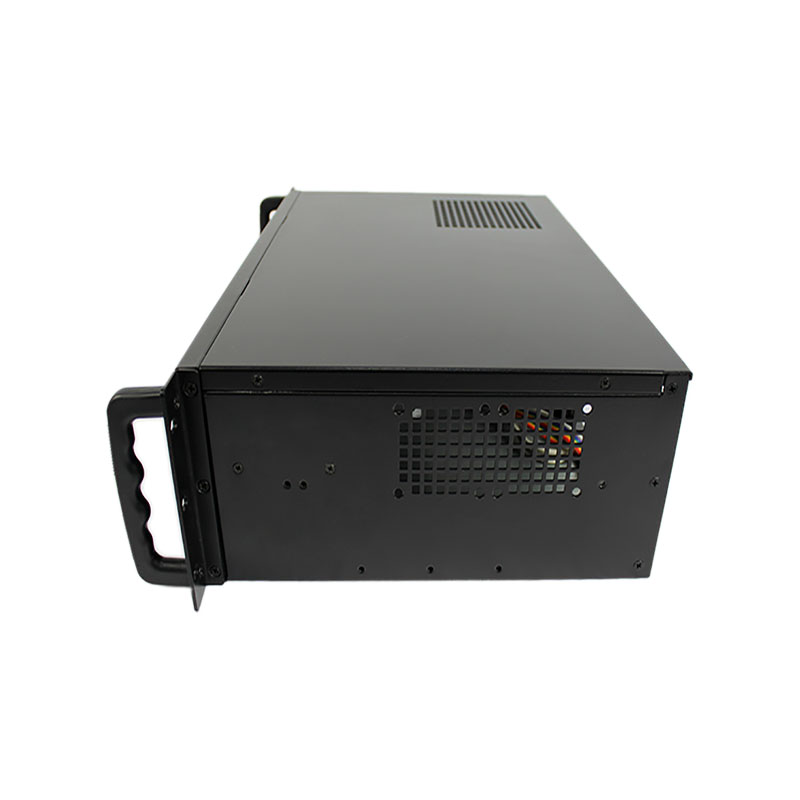

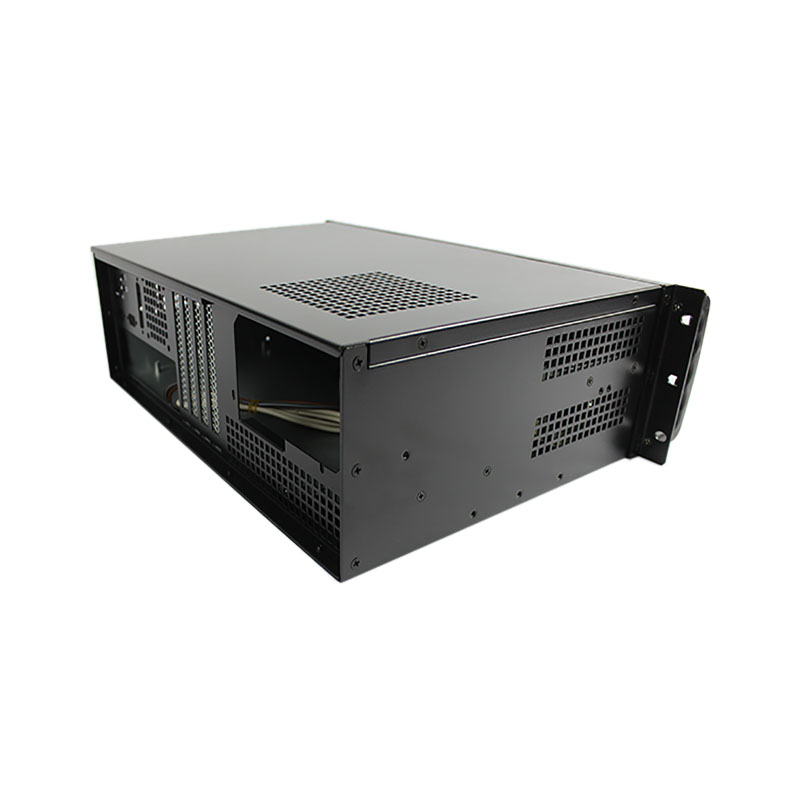

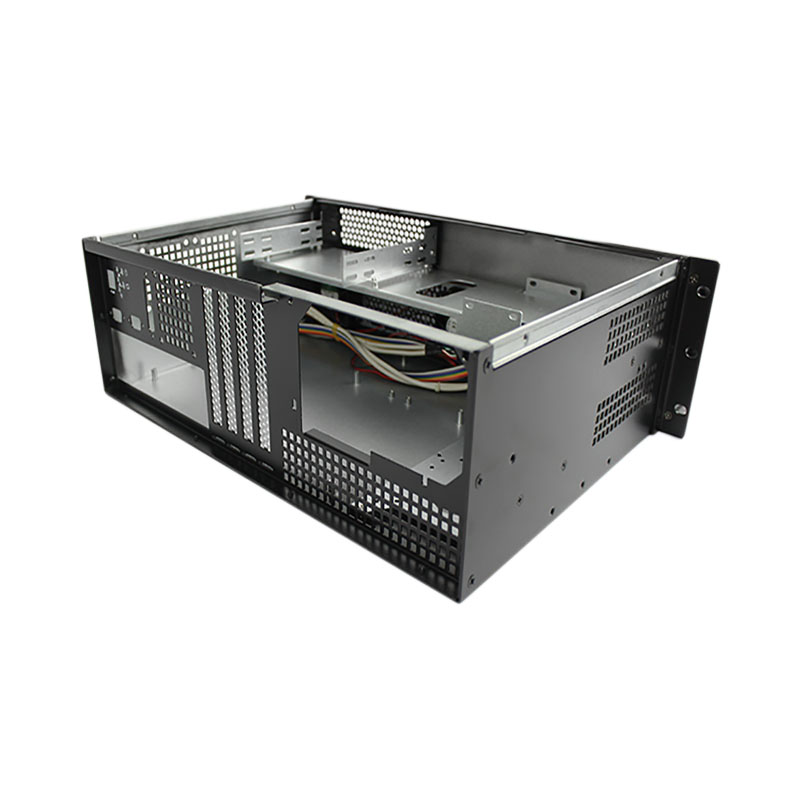

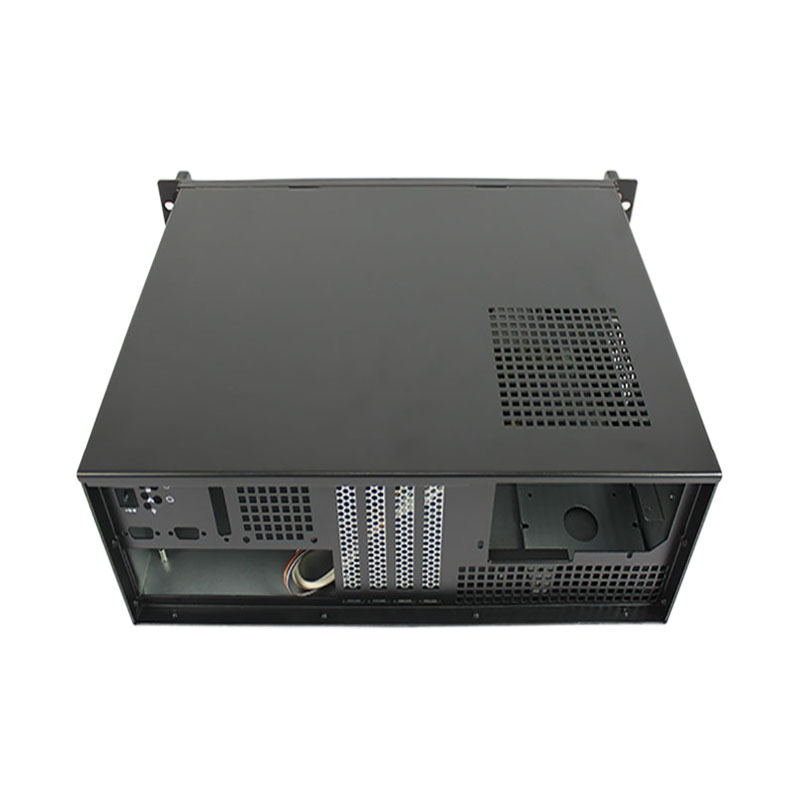

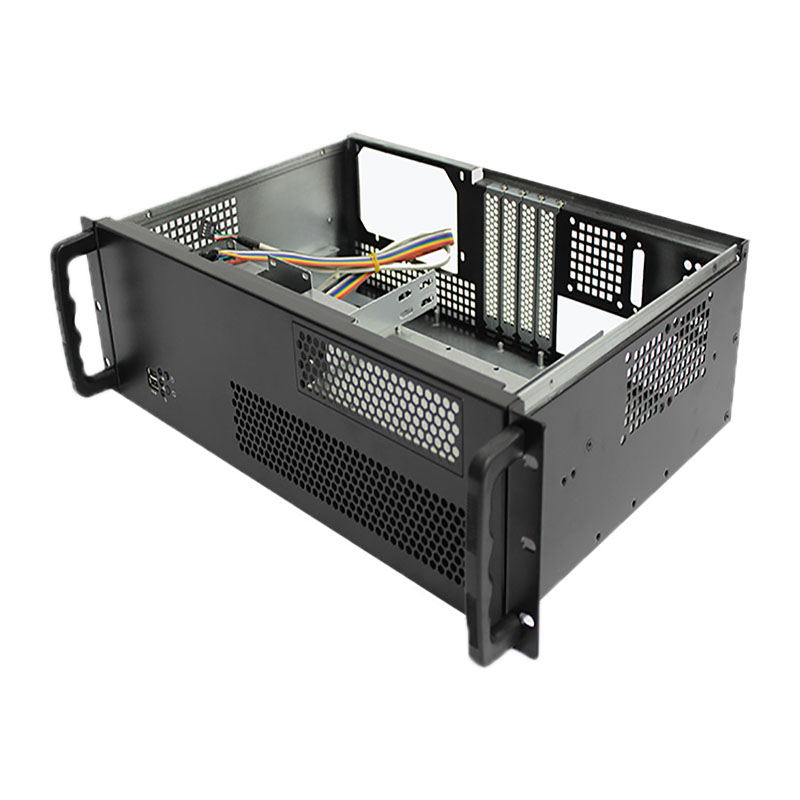

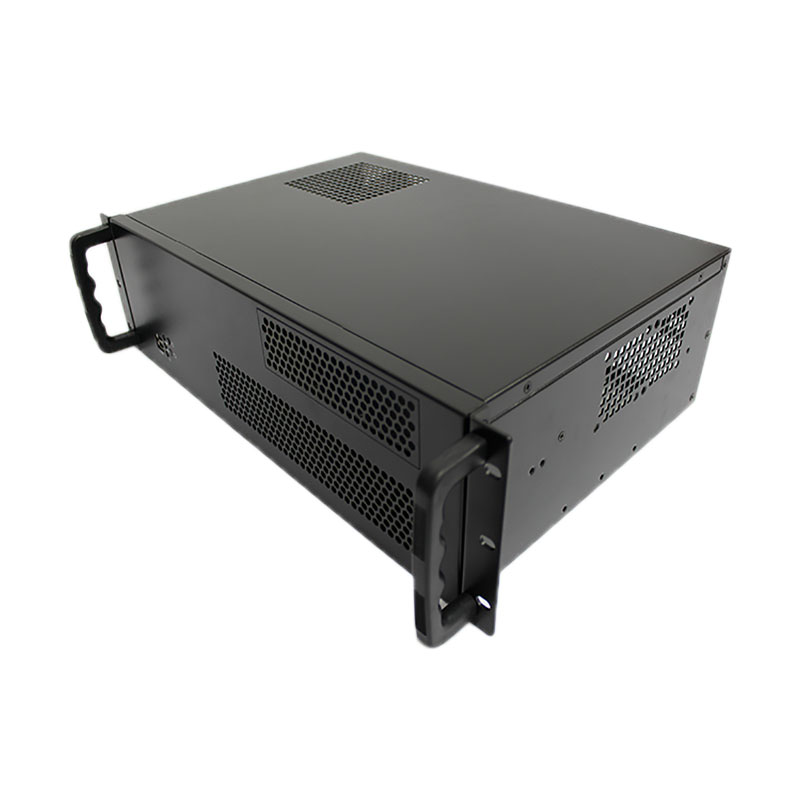

ISC-RC3U300F-M is a 3U steel rackmount chassis with two 3.5-inch drive bays, four full-height PCI slots, dual 6025 fans, ATX PSU support and front USB 2.0. Designed for server, storage and industrial IT integration, with OEM/ODM and volume procurement support.
The ISC-RC3U300F-M is a 1.2 mm steel 3U rackmount chassis with 300 mm depth, open-top access and ventilated panels. Two 6025 fans support airflow, while the compact fixed-drive layout eases installation and service in server rooms, edge sites and industrial IT racks.
As a chassis rather than a complete server, it supports two 3.5-inch drives, four full-height PCI slots, an ATX PSU and front USB 2.0. It suits storage, enterprise IT, security, cloud and selected AI workloads depending on installed hardware. iSTONECASE supports OEM/ODM development, prototypes, bulk procurement and distributor sourcing; confirm motherboard fit, rails and optional parts before ordering.
| Model | ISC-RC3U300F-M |
|---|---|
| Dimensions(mm) | 482(W)*300(D)*133 mm(H) |
| Main Board | 12"*9.6"(305*245MM) |
| Hard Disk | Two 3.5-inch Hard Disks |
| CD-ROM | One 5025 CD-ROM |
| Power | ATX Power |
| Fan | Two 6025 Fans |
| Expansion Slot | Four Full High and Straight Slots |
| Panel Setting | Two USB2.0; One Power Switch;One Restart Switch;One Power Indicator;One HD Indicator |
| Case Material | S |
| Material Thickness | 1.2MM |
| Packaging size | 55*44*22CM(0.053CBM) |
| Gross weight | 6.827KG |
| N.W | 5.309KG |
