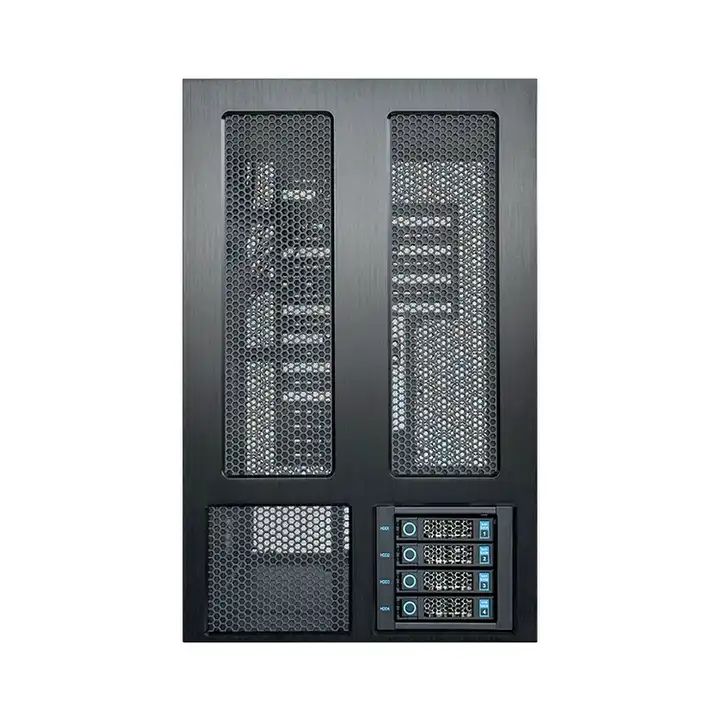

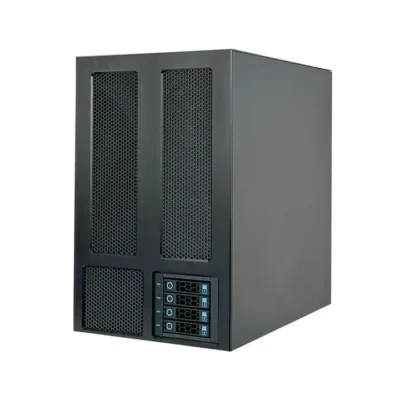

WS06A-2 is a 6U GPU server case for up to six compatible 290–355 mm GPUs, 11 full-height expansion slots, flexible fixed or optional hot-swap storage, dual ATX PSU support, and high-capacity cooling for AI, HPC, data center, OEM/ODM, and bulk integration projects.

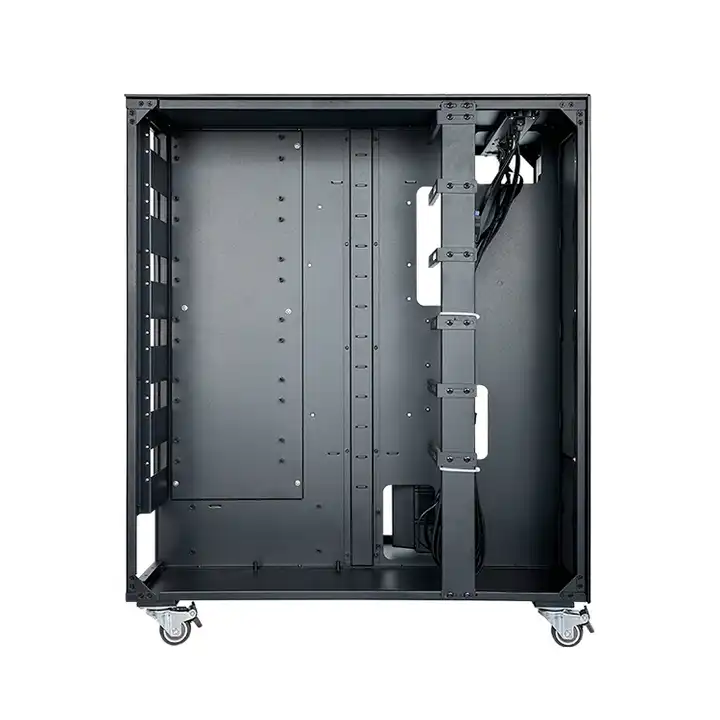

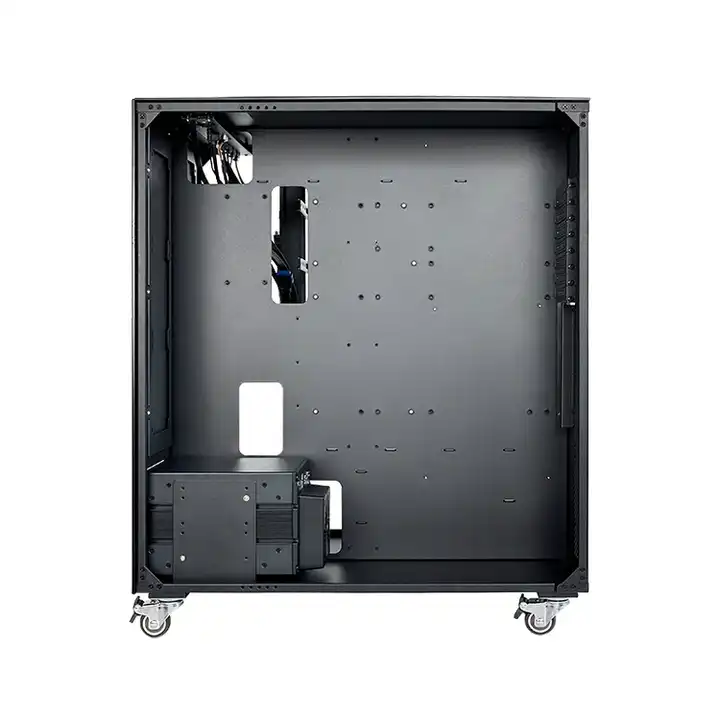

The WS06A-2 is a 6U GPU server chassis made from 1.2 mm SGCC steel and 4.0 mm aluminum alloy. Its accessible internal frame supports easier assembly and maintenance. Front dual 480 mm radiator or eight 120 mm fan positions, top 360 mm radiator support, and rear fan mounts enable configurable airflow.
Designed for AI, deep learning, HPC and data center builds, it supports up to six compatible 290–355 mm GPUs and 11 full-height PCIe slots. Storage options include four 3.5-inch or seven 2.5-inch fixed drives, plus an optional four-bay SAS/SATA/NVMe hot-swap structure. Dual ATX PSU support and front USB 3.0 controls suit OEM/ODM, wholesale and project procurement.
| Model | WS06A-2 |
|---|---|
| Color | Black |
| Materia | Quality Fine 1.2mm SGCC,4.0mm Aluminum Alloy |
| Dimension D*W*H | D550mm*W380mm*H685mm |
| HDD Bay | 4*3.5"/2.5" SAS/SATA/NVMe hot-swap hard drives, 4 3.5" or 7 2.5" non-hot-swappable hard drives |

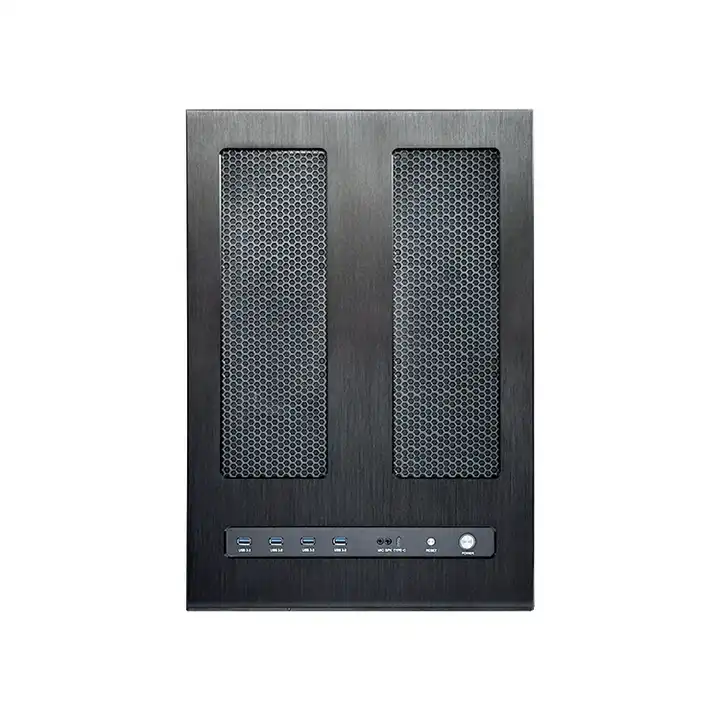

| Front Panel Control | 2 USB3.0, 1 power button, 1 restart button |
| Cooling Fan | The front panel can hold two 480mm liquid cooling radiators or eight 12cm fans. The top supports one 360mm liquid cooling radiator |
| Suitable Motherboard | (15"*13")/EATX(12"*13")/CEB(12"*10.5")/ATX(12"*9.6")/Micro ATX(9.6"*9.6") |
| Suitable PSU | 2 standard ATX power supplies |

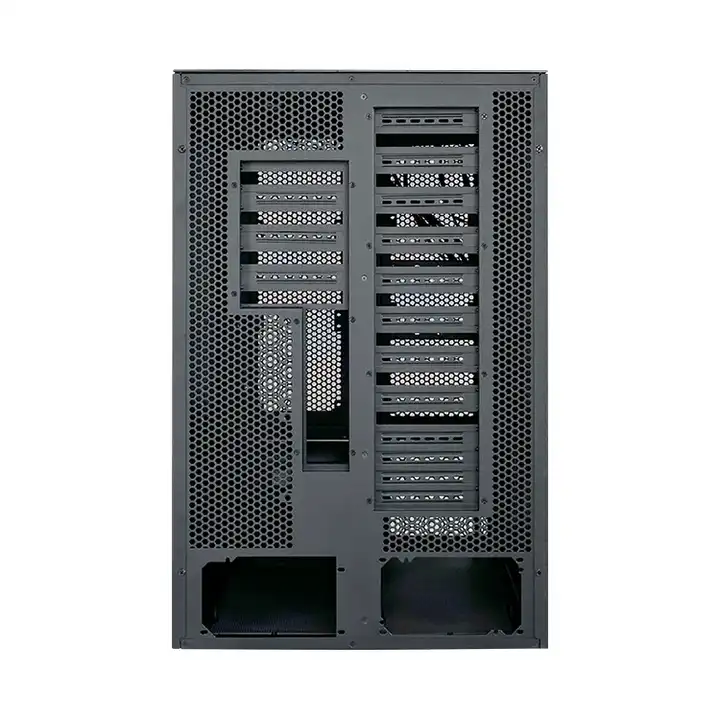

| Epansion Space | 11 full-height PCIe expansion card slots |
| Graphics Support | Support 6 4-width 4090 gaming cards(The length is limited to 290 – 355 MM) |
| Radiator height limit | 155MM |
| Packaging Details | Carton with PE foam |
| Single package size | L795*W660*H500MM |
| Single gross weight | 34kg |
