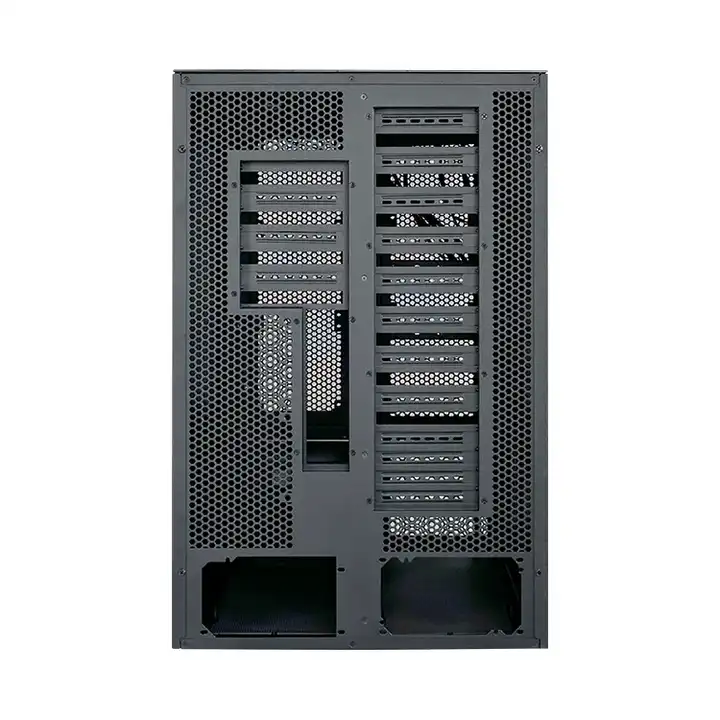

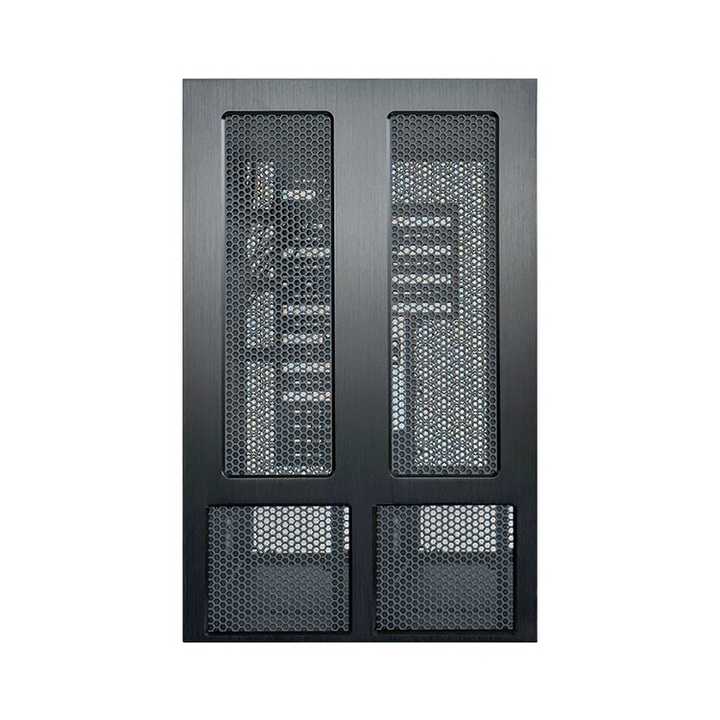

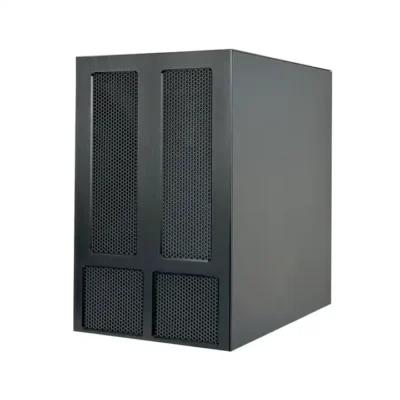

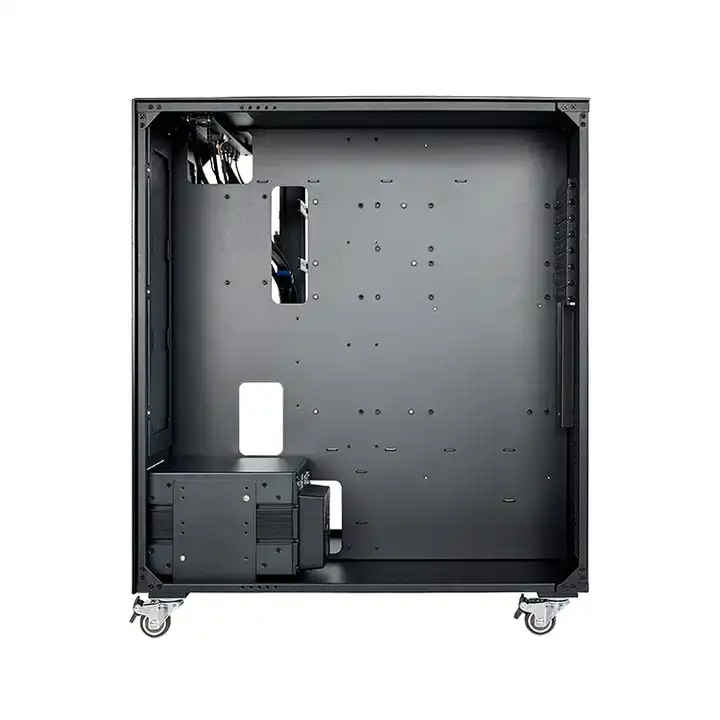

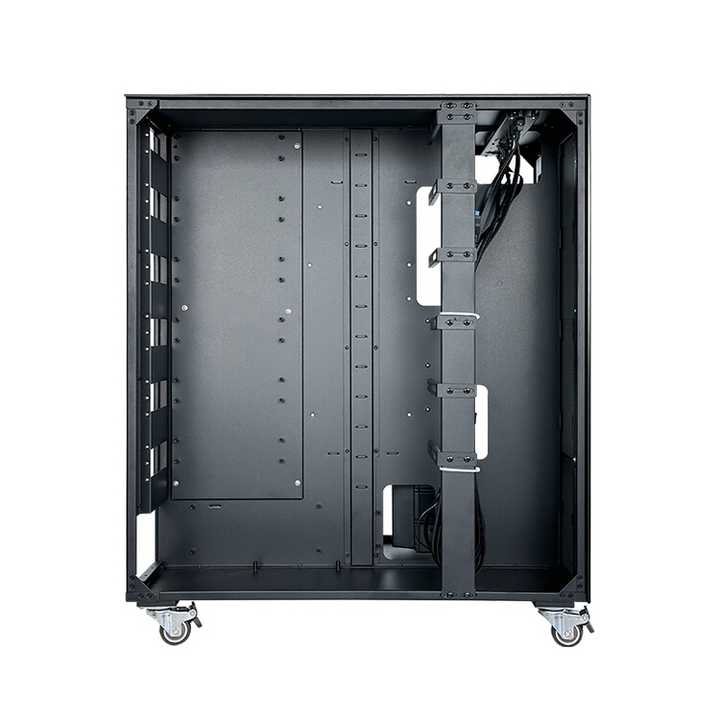

ISC-WS06A-1 is a 6U GPU server chassis with 11 full-height PCIe slots, support for up to six RTX 4090 GPUs, EATX/CEB/ATX/Micro ATX boards, dual ATX PSUs, and flexible liquid or fan cooling for AI, HPC, system integration, and volume procurement.
The ISC-WS06A-1 is a 6U GPU server case built from 1.2mm SGCC steel and 4.0mm aluminum alloy for durable rack deployment. Its roomy layout supports installation and service access, with front cooling for two 480mm radiators or eight 120mm fans, top support for a 360mm radiator, and rear airflow options.
For AI, HPC, rendering, data centers, and system integration, it offers 11 full-height PCIe slots and support for up to six RTX 4090 GPUs. EATX, CEB, ATX, and Micro ATX motherboard compatibility plus dual ATX PSU support make it suitable for OEM/ODM projects, distributors, integrators, and volume procurement.
| Model | ISC-WS06A-1 |
|---|---|
| Color | Black |
| Materia | Quality Fine 1.2mm SGCC,4.0mm Aluminum Alloy |
| Dimension D*W*H | L550mm*W380mm*H685mm |

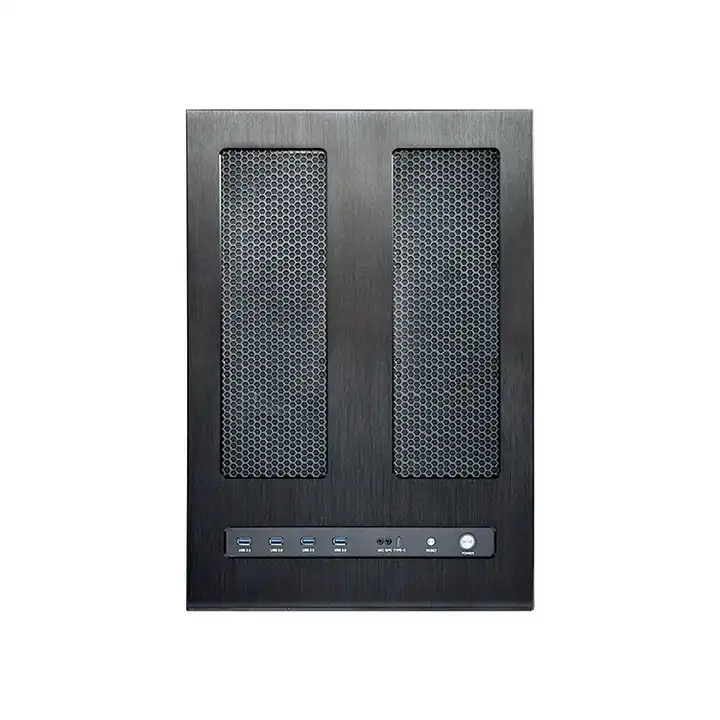

| Front Panel Control | 2 USB3.0, 1 power button, 1 restart button |
| HDD Bay | 4 3.5" or 7 2.5" non-hot-swappable hard drives |
| Cooling Fan | The front panel can hold two 480mm liquid cooling radiators or eight 12cm fans. The top supports one 360mm liquid cooling radiator and three 12cm fans. The rear window can hold one 9cm fan and one 12cm fan. |
| Suitable Motherboard | (15"*13")/EATX(12"*13")/CEB(12"*10.5")/ATX(12"*9.6")/Micro ATX(9.6"*9.6") |
| Suitable PSU | 2 standard ATX power supplies |
| Epansion Space | 11 full-height PCIe expansion card slots |
| Graphics Support | Support 6 4-width 4090 gaming cards(The length is limited to 290 – 350 MM) |
| Radiator height limit | 155mm |
| Packaging Details | Carton with PE foam |
| Single package size | L795*W660*H500MM |
| Single gross weight | 34kg |
ISC-RC2U550F-M is a 2U SGCC steel rackmount chassis with eight 3.5-inch drive…
ISC NS12S4 is a rackmount 12-bay NAS chassis with 12 hot-swap 3.5…
ISC-WS04A2-1 is a 4U GPU server chassis with EATX-to-Micro ATX support, seven…
ISC-GS5U890-61 is a 5U rackmount GPU server chassis with 11 full-height PCIe…
WS06A-2 is a 6U GPU server case for up to six compatible…
The ISC-WS04A2-2 is a 4U GPU server chassis with SGCC steel and…

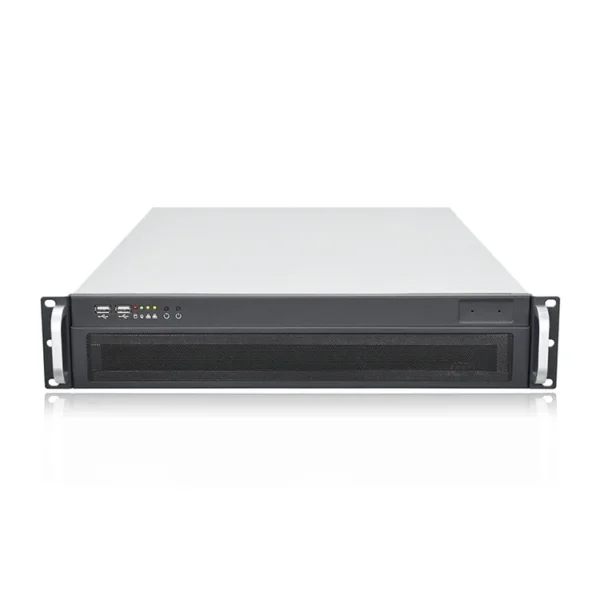

ISC-RC2550A-L is a 2U SGCC steel rackmount chassis with three 80mm fans,…
