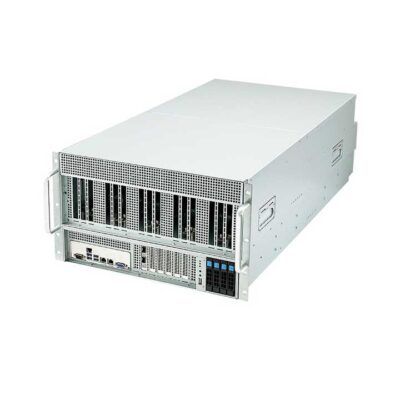

ISC6U860101 is a 6U rackmount GPU server chassis with 8 PCIe slots, four hot-swap 2.5-inch SATA bays, a 6Gb/s SAS backplane with SGPIO, and multi-form-factor motherboard support. Designed for AI, HPC, data center, and OEM/ODM procurement.

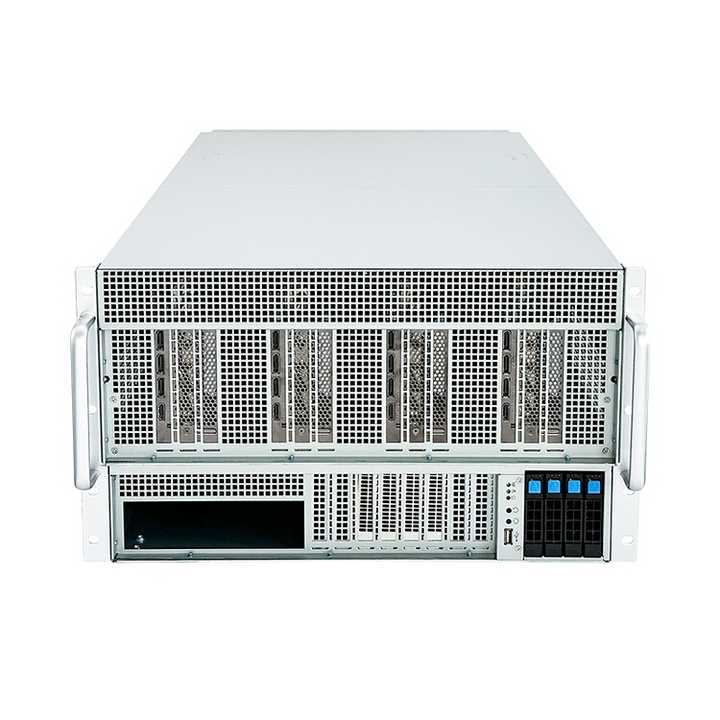

ISC6U860101 is a 6U rackmount GPU server chassis made from SECC steel and aluminum alloy. Its ventilated front, side handles, status indicators, hot-swap access, and six-fan temperature-controlled cooling layout support airflow, durability, and easier maintenance in dense compute deployments.

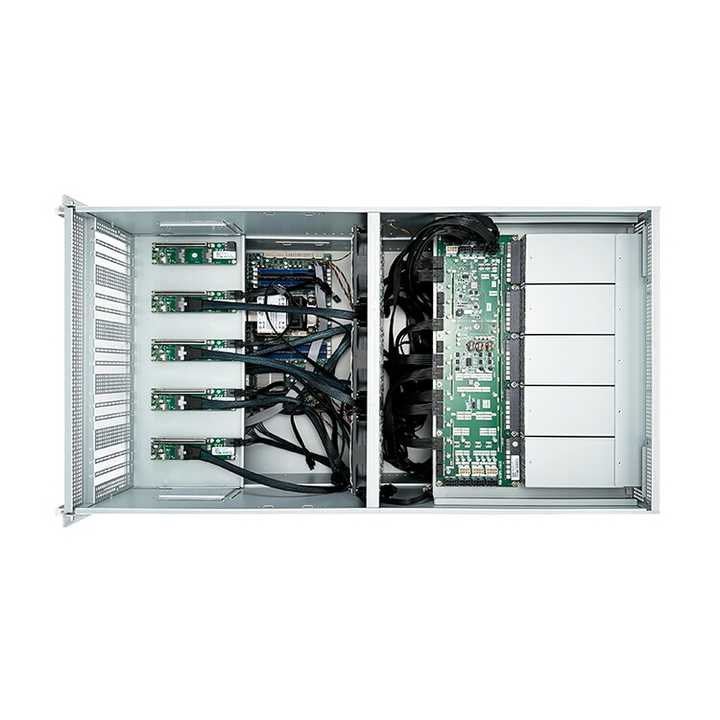

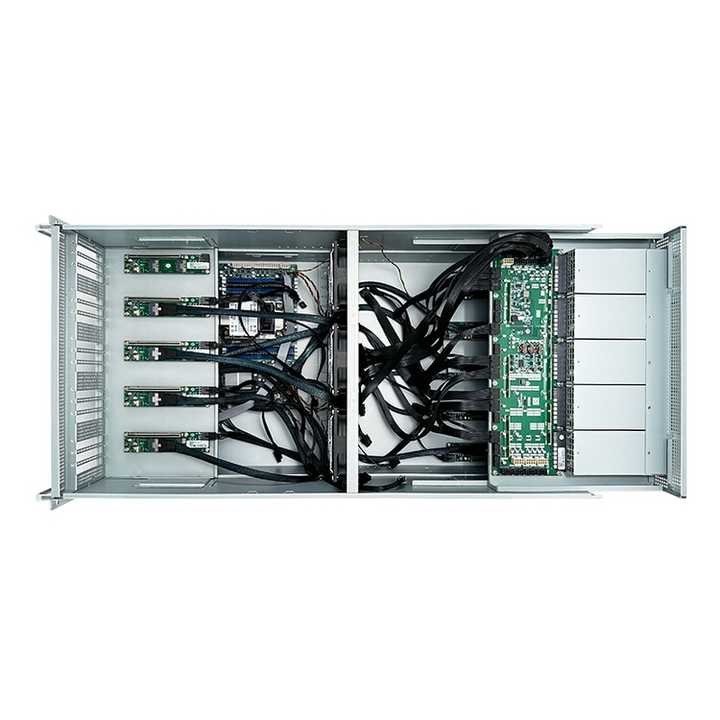

The chassis provides 8 PCIe slots, four hot-swap 2.5-inch SATA bays, and a 6Gb/s SAS backplane with SGPIO. It supports selected EATX, ATX, CEB, and Micro ATX boards plus CRPS redundant power configurations. Designed for AI, HPC, data center, private cloud, and integrator projects, it offers OEM/ODM and volume sourcing value. Confirm rails, rack depth, and final component compatibility before ordering.
| Model | ISC6U860101 |
|---|---|
| Color | Silver |
| Materia | Quality Fine 1.0mm SECC,Aluminum Alloy, Plastic |
| Dimension D*W*H | L860mm*W447mm*H265mm |
| HDD Bay | 4*2.5"hot-swap Sata drive bays |
| HDD Backplane | 6Gb/s SAS Backplane,Supports SGPIO |
| Front Panel Control | 2 USB3.0, 1 power button, 1 restart button, 1 hard disk indicator, 1 system fault indicator, 1 network indicators,Front Mask |

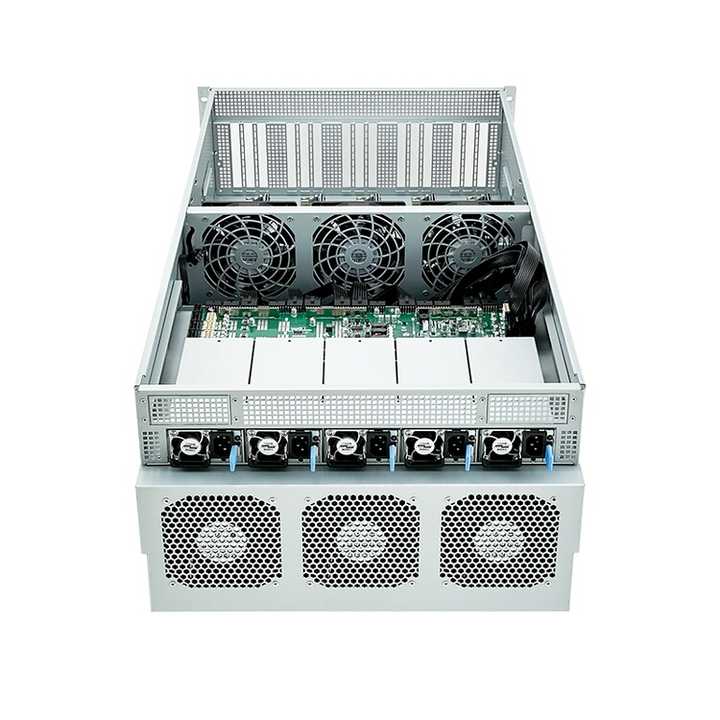

| Cooling Fan | Supports intelligent-temperature control,6pcs 12038 fans |
| Suitable Motherboard | EATX(12"*13")/CEB(12"*10.5")/ATX(12"*9.6")/Micro ATX(9.6"*9.6") |

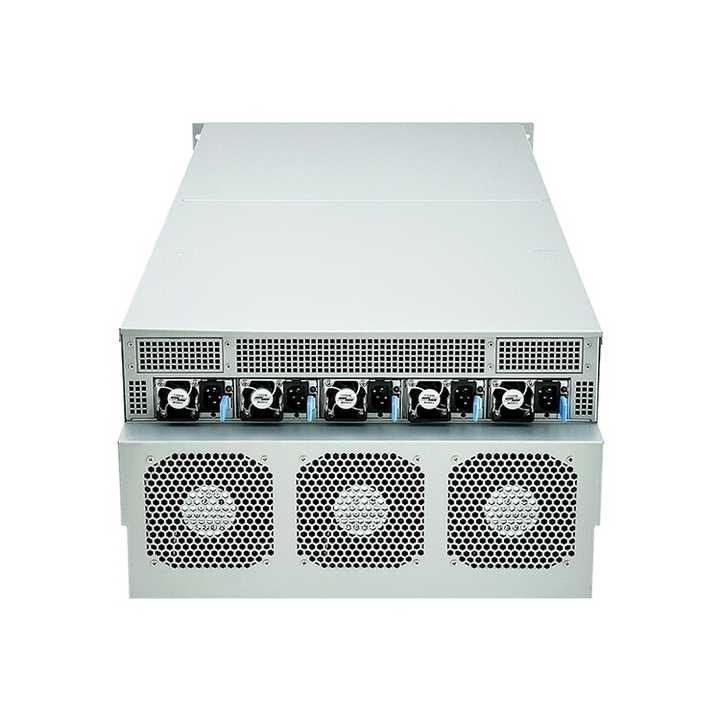

| Suitable PSU | 4+1 CRPS power supply+psu backplane |
| Epansion Space | 8 half-height PCIe expansion card slots |
| Packaging Details | Carton with PE foam |
| Single package size | L1080mm*W600mm*H410mm |
| Single gross weight | 35kg |
