ISC NS09S2 rackmount NAS chassis with 12 hot-swap 3.5/2.5-inch SATA/SAS bays, four internal 2.5-inch bays, 8 expansion slots and ATX PSU support for enterprise storage projects and OEM/ODM procurement.

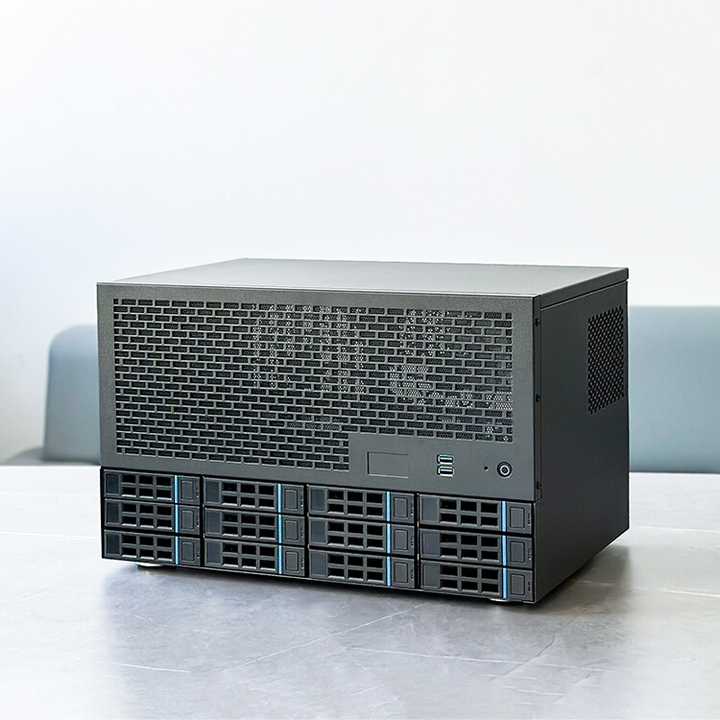

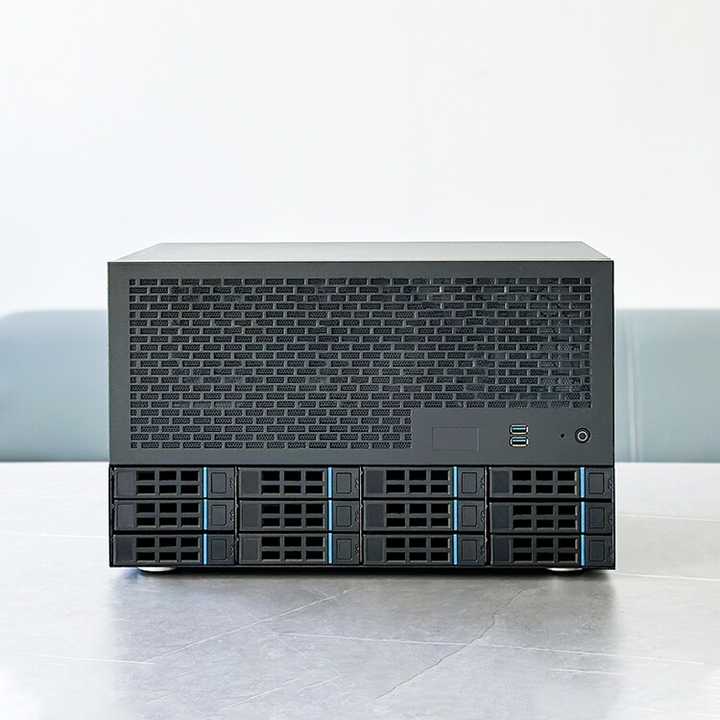

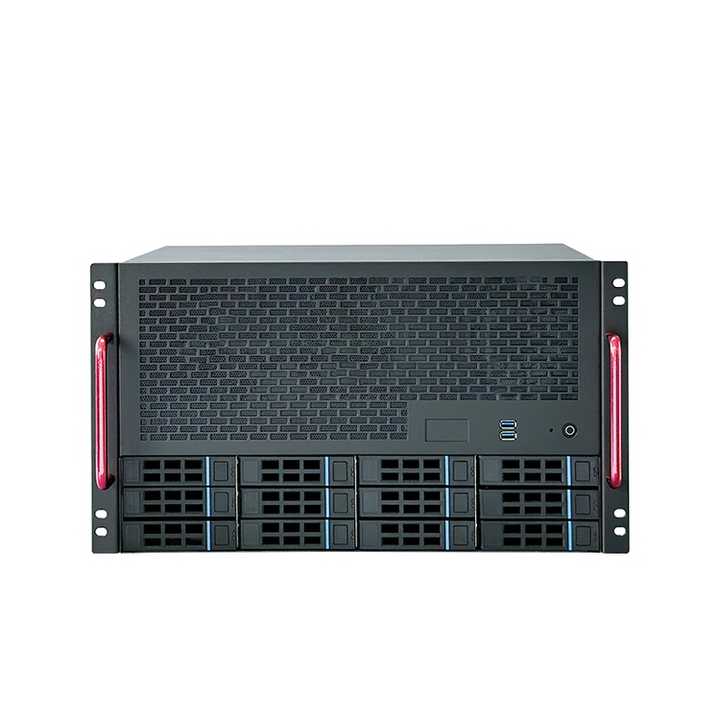

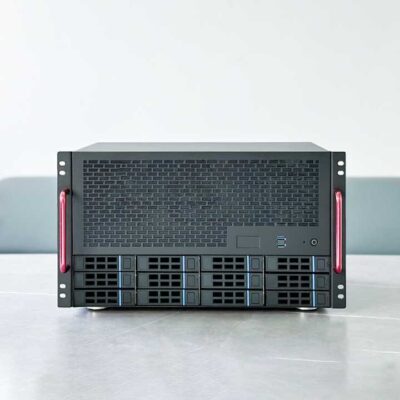

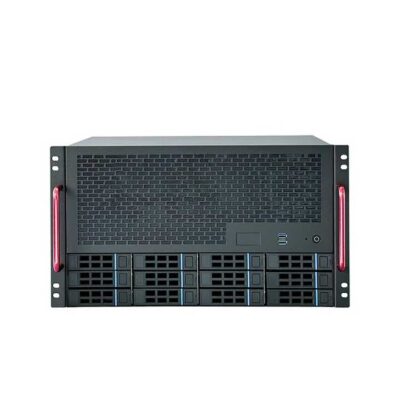

Product Overview: ISC NS09S2 is a rackmount NAS chassis for dense, serviceable storage.
Product Category: 12-bay NAS enclosure.

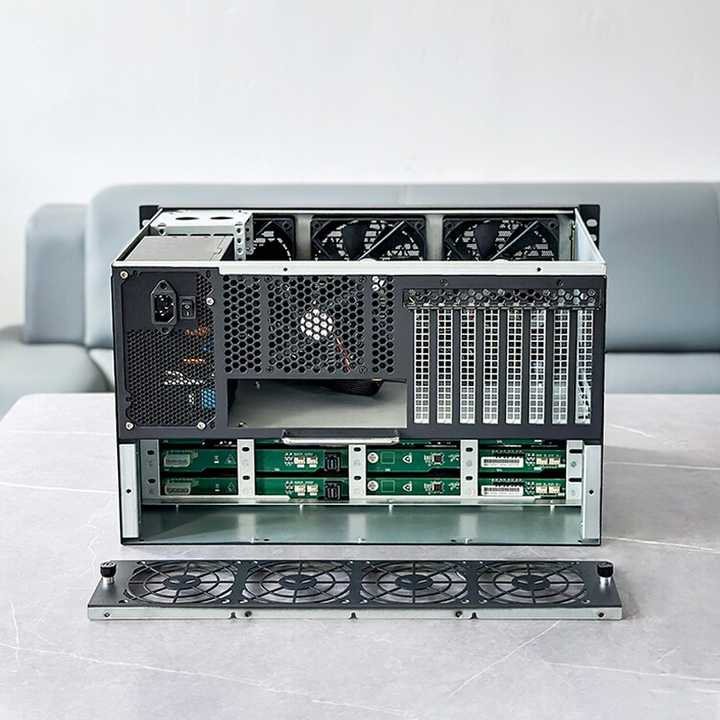

Key Configuration: 12 hot-swap 3.5/2.5-inch SATA/SAS bays, four internal 2.5-inch bays, eight PCI/PCIe slots, a 12Gb/s Mini-SAS backplane, and five 90mm fans.
Compatibility: Supports boards up to 12 x 9.6 inches, including MicroATX, and ATX power supplies; confirm rails and optional fans before ordering.
Applications: Enterprise storage, private cloud, data centers, research, monitoring, and system integration.
Procurement Value: Designed for system integrators, OEM/ODM projects, bulk sourcing, distributor supply, and scalable storage deployment.
| Model | ISC-NS09S2-5-L |
|---|---|
| Color | Black |
| Materia | Quality Fine 1.0mm SGCC Steel |
| Dimension D*W*H | L306mm*W432mm*H271mm |
| HDD Bay | 12×3.5''/2.5''hot-swap Sata/Sas drive bay, built-in 4×2.5'' drive bays |
| HDD Backplane | 12Gb/s MINI SAS Backplane |

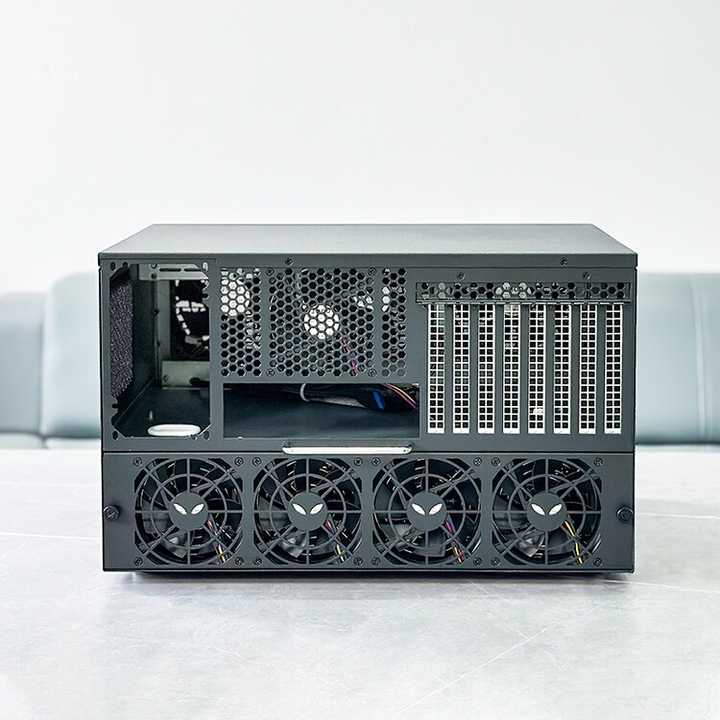

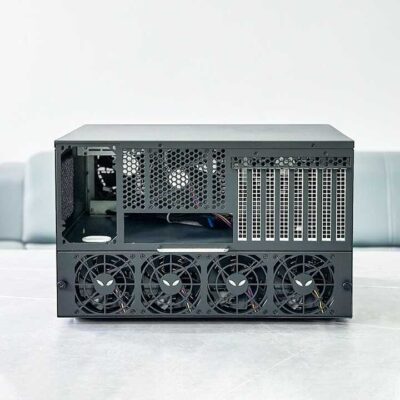

| Cooling Fan | 5pcs 90mm fan，3pcs 120mm fan position |
| Suitable Motherboard | Max support 12''x9.6'' |
| Suitable PSU | ATX standard power suppy |
| Epansion Space | 8 PCI/PCIE expansion slots |
| Packaging Details | Double Carton with PE foam |
| Single package size | 56X43X40 cm |
| Single gross weight | 14.000 kg |
