A wallmount industrial chassis is a protective enclosure that installs computing hardware on a wall, machine or work surface instead of using rack space. It serves engineers, technical integrators, equipment manufacturers, automation companies, and industrial buyers who need reliable hardware packaging near machines, controls, sensors, or test equipment.

What Is a Wallmount Chassis?

This metal enclosure secures processing, storage, add-in cards, cooling components, and cabling in an accessible vertical or horizontal installation. It can reduce cabinet demand while keeping field-service access close to the equipment for nearby maintenance.

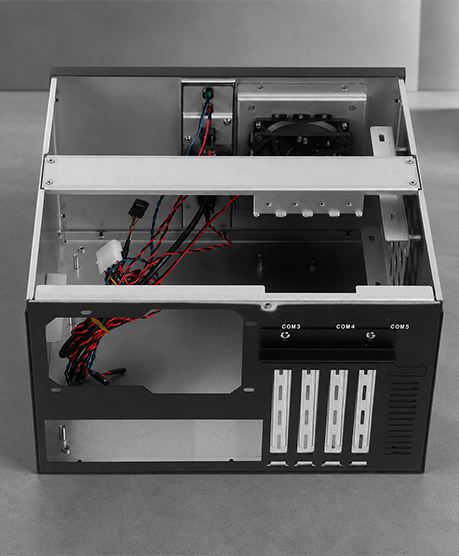

Wallmount Chassis 03

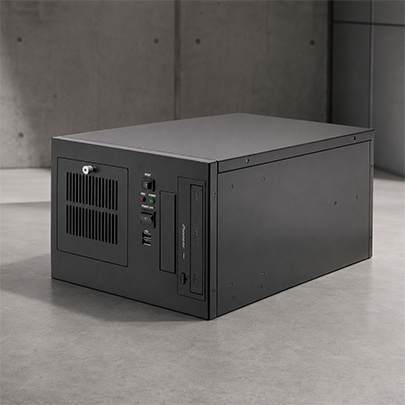

Wallmount Chassis

Two architectures are common: motherboard chassis with I/O, or SBC chassis on a passive backplane.

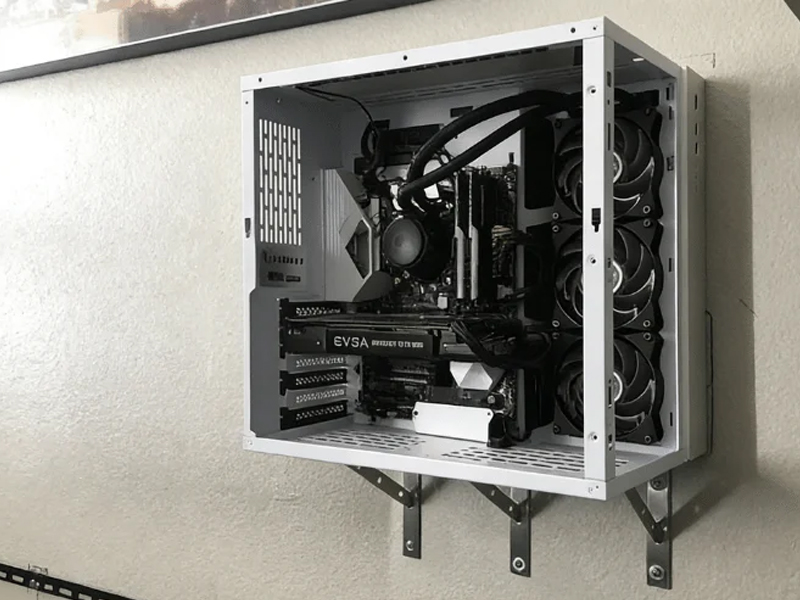

What Is a Wallmount Chassis

Catégorie de boîtier mural Fiches techniques de produits connexes

Choose by deployment environment first, then verify motherboard size, power supplies, drive bays, expansion, cooling, rack depth, and cable routing. Build quality and serviceability matter because server infrastructure must stay protected and accessible.

Image du produit Model Product Link Type Dimensions (L×P×H mm) Carte mère prise en charge (mm/in) Baies de disque Lecteur optique Alimentation électrique Les fans Emplacements d'extension Face avant Matériau et épaisseur Personnalisable

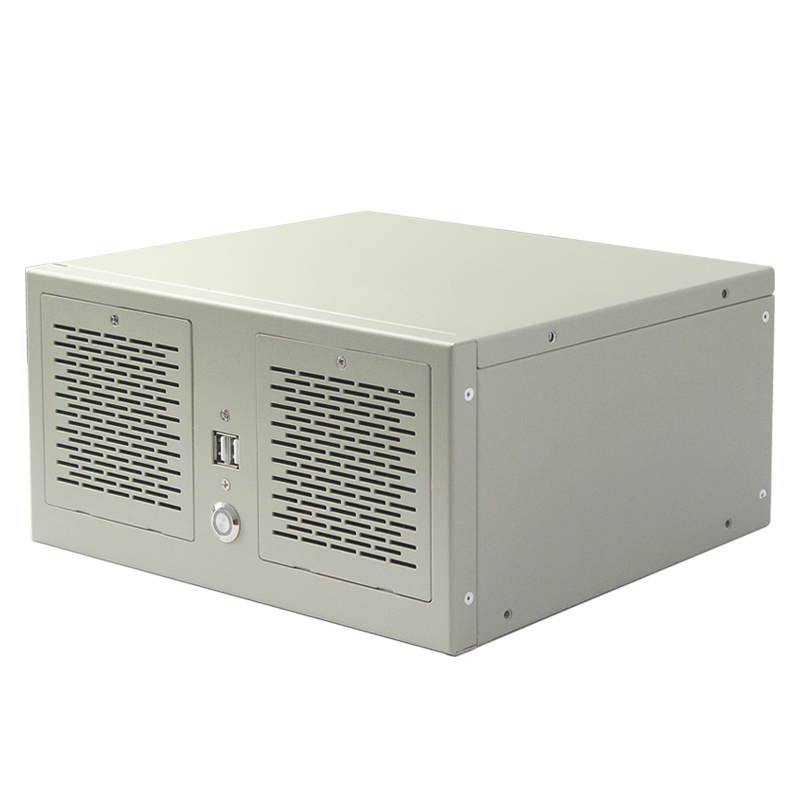

Compact Rackmount Chassis Valise murale ISC-WMS34TW-M Montage en rack (2 emplacements) 263 × 232 × 130 Micro-ATX 245 × 245 (9.6 × 9.6") 1 × 3,5" HDD ; 1 × 2,5" HDD Aucun BLOC D'ALIMENTATION ATX 2 × 80 × 25 mm 2 × PCI-E ; 4 × COM Port USB Acier SGCC, 1,2 mm Oui

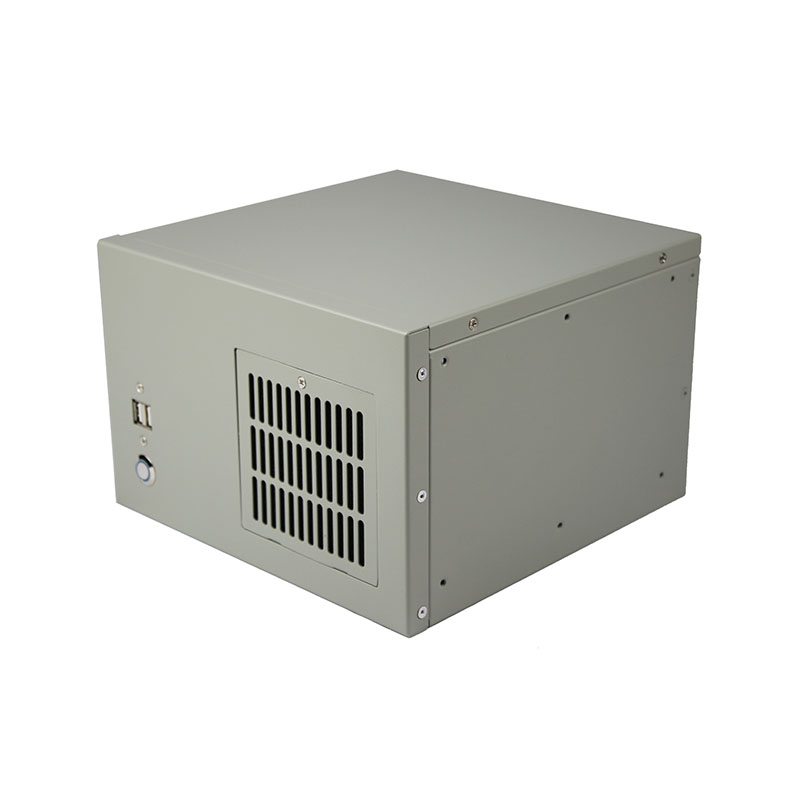

Dust-Filtered Wallmount Chassis Valise murale ISC-WMS31W-M Support mural (2 emplacements) 230 × 230 × 155 Mini-ITX 170 × 170 (7 × 7") Jusqu'à 2 disques durs de 2,5 pouces ou 1 disque dur de 3,5 pouces Aucun BLOC D'ALIMENTATION 1U FLEX 1 × 80 × 25 mm 2 × pleine hauteur 2 × USB 2.0 ; interrupteur d'alimentation/LED ; panneau amovible pour le filtre à poussière Acier zingué, 1,2 mm Oui

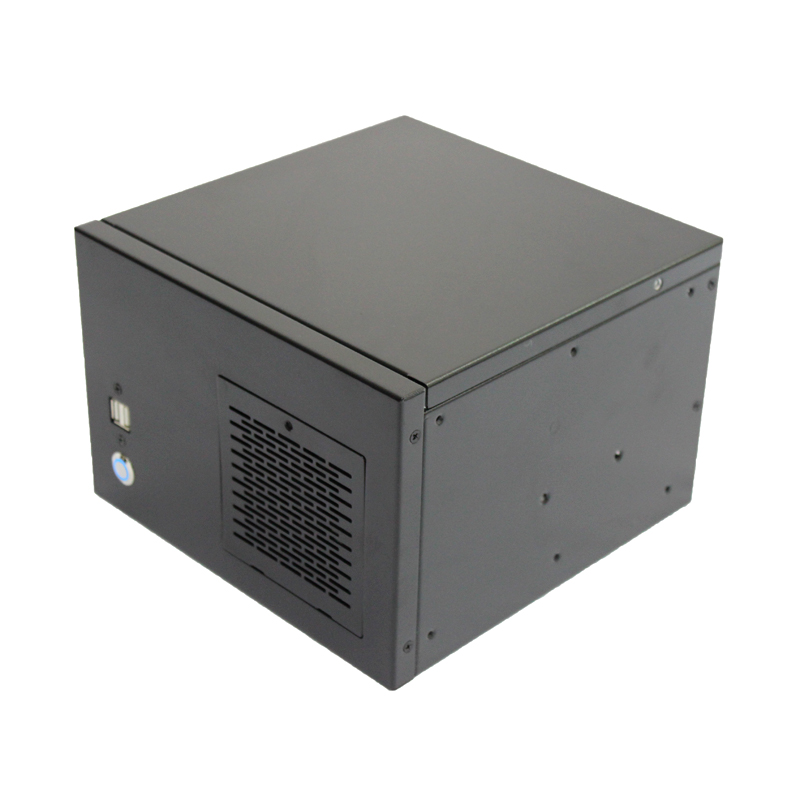

Steel Wallmount Server Chassis Valise murale ISC-WMS31B-M Support mural (2 emplacements) 230 × 230 × 155 Mini-ITX 170 × 170 (7 × 7") Jusqu'à 2 disques durs de 2,5 pouces ou 1 disque dur de 3,5 pouces Aucun BLOC D'ALIMENTATION 1U FLEX 1 × 80 × 25 mm 2 × pleine hauteur 2 × USB 2.0 ; interrupteur d'alimentation/LED ; panneau amovible pour le filtre à poussière Acier zingué, 1,2 mm Oui

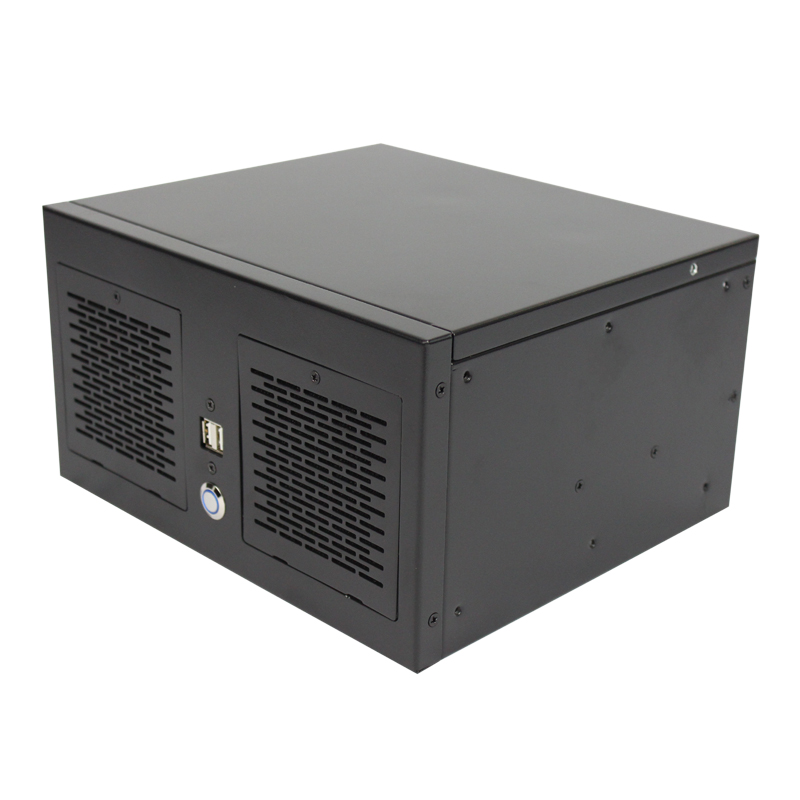

Steel Wallmount Server Case Valise murale ISC-WMS33B-M Support mural (4 emplacements) 263 × 230 × 145 190 × 245 (8.5 × 9.6") Jusqu'à 2 disques durs de 2,5 pouces ou 1 disque dur de 3,5 pouces Aucun BLOC D'ALIMENTATION 1U FLEX - 4 × pleine hauteur ; 6 × COM 2 × USB 2.0; Power & HDD LEDs Acier zingué, 1,2 mm Oui

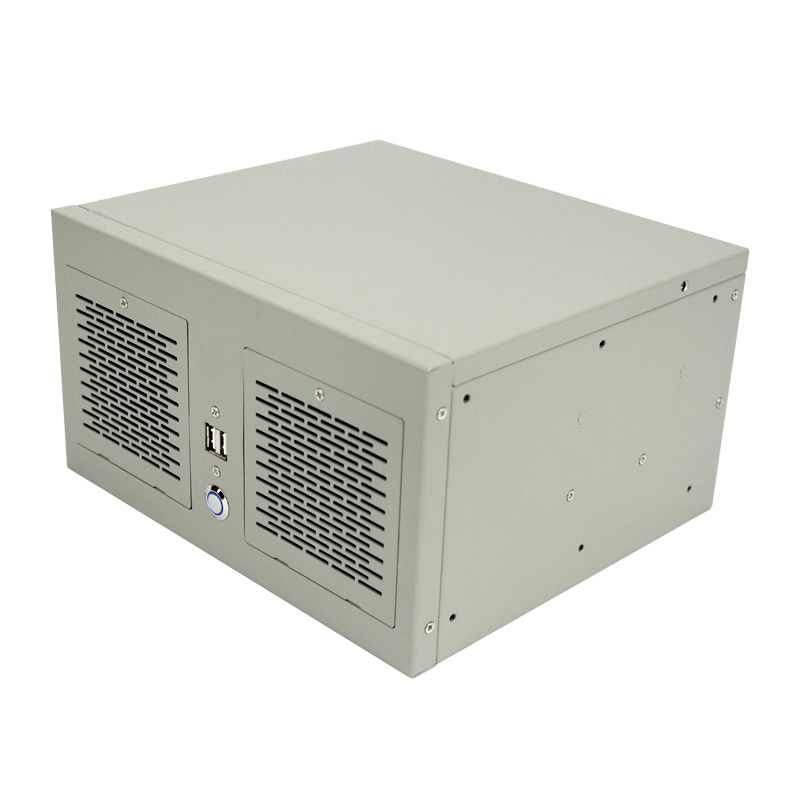

4-Slot Steel Wallmount Chassis Valise murale ISC-WMS33W-M Support mural (4 emplacements) 263 × 230 × 145 190 × 245 (8.5 × 9.6") Jusqu'à 2 disques durs de 2,5 pouces ou 1 disque dur de 3,5 pouces Aucun BLOC D'ALIMENTATION 1U FLEX - 4 × pleine hauteur ; 6 × COM 2 × USB 2.0; Power & HDD LEDs Acier zingué, 1,2 mm Oui

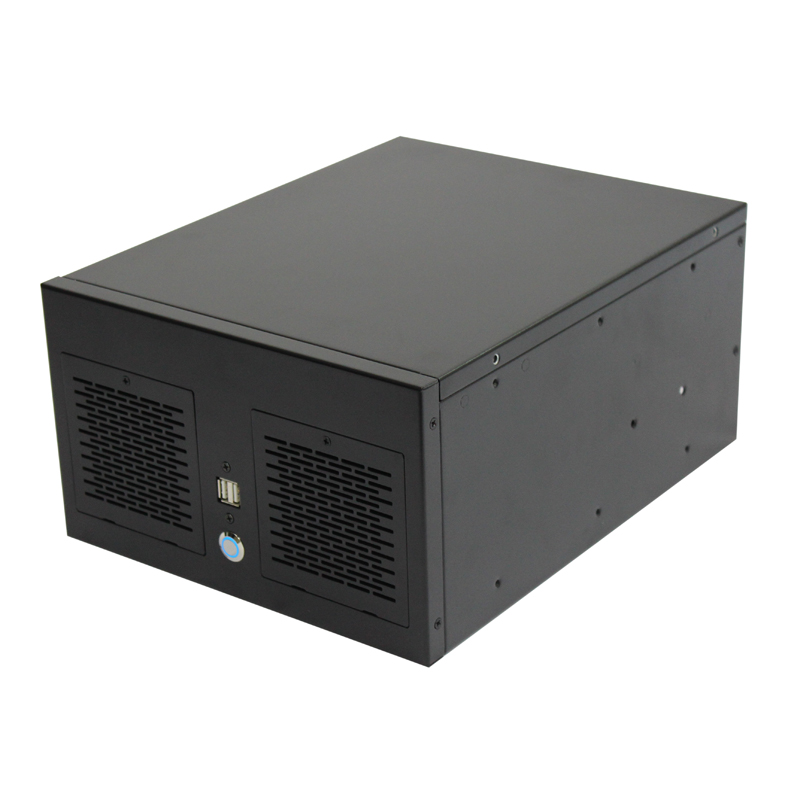

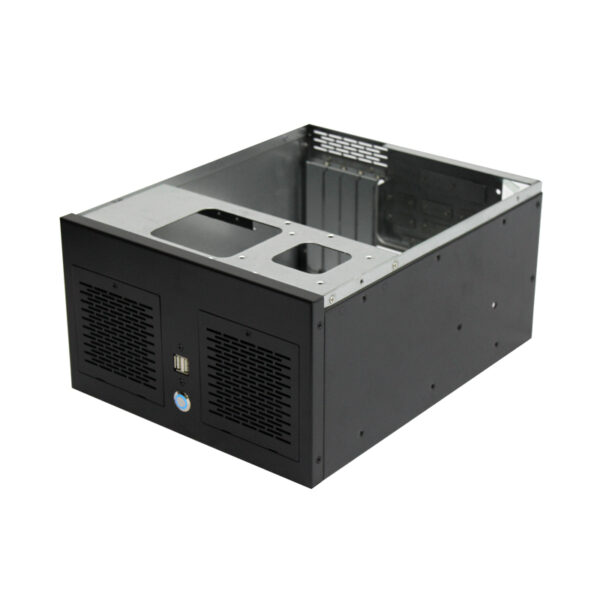

4-Slot Wallmount Chassis Valise murale ISC-WMS34B-M Support mural (4 emplacements) 260 × 330 × 155 Micro-ATX 245 × 245 (9.6 × 9.6") 1 × disque dur 2,5" ou 1 × disque dur 3,5 Aucun BLOC D'ALIMENTATION 1U FLEX 2 × 80 × 25 mm 4 × pleine hauteur 2 × USB 2.0 ; LED d'alimentation ; panneau amovible avec filtre à poussière Acier zingué, 1,2 mm Oui

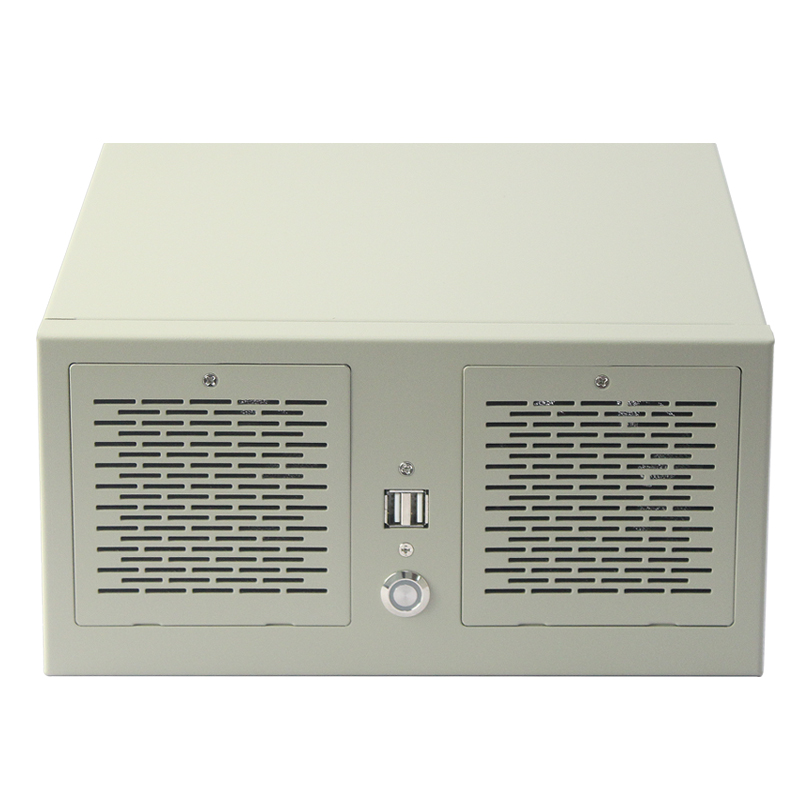

4-Slot Wallmount Server Chassis Boîtier mural 4 slots Modèle ISC WMS34W M Support mural (4 emplacements) 263 × 232 × 130 245 × 200 (9.6 × 8.2") 1 × 3,5" HDD ; 1 × 2,5" HDD Aucun BLOC D'ALIMENTATION ATX 2 × 80 × 25 mm 4 × PCI-E ; 4 × COM Port USB Acier Oui

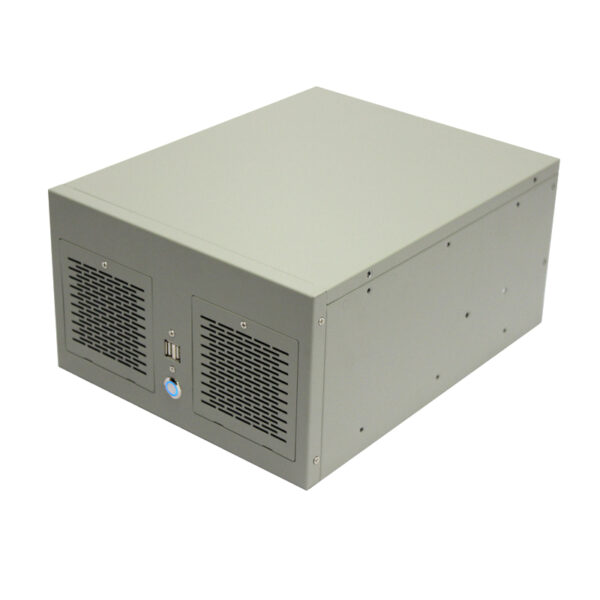

4-Slot Wallmount Server Chassis Boîtier mural ISC-WMS34W-M Support mural (4 emplacements) 260 × 330 × 155 Micro-ATX 245 × 245 (9.6 × 9.6") 1 × disque dur 2,5" ou 1 × disque dur 3,5 Aucun BLOC D'ALIMENTATION 1U FLEX 2 × 80 × 25 mm 4 × pleine hauteur 2 × USB 2.0 ; LED d'alimentation ; panneau amovible avec filtre à poussière Acier zingué, 1,2 mm Oui

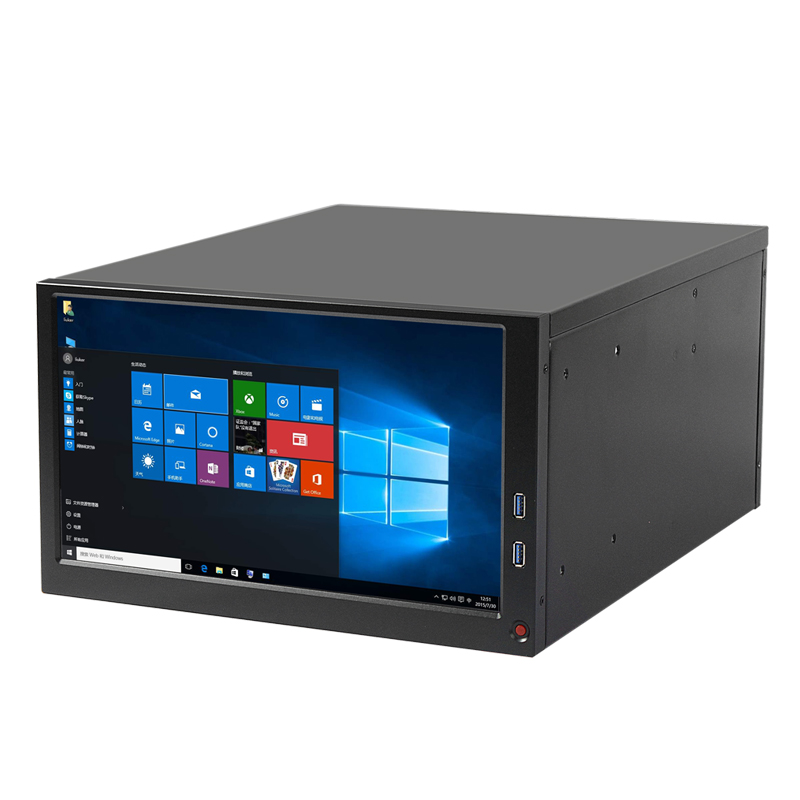

6-Slot Wallmount Chassis Valise murale ISC-WMS38CB-M Support mural (6 emplacements) 330 × 410 × 200 ATX 305 × 245 (12 × 9.6") 1 × 3,5" HDD ; 2 × 2,5" HDD Aucun BLOC D'ALIMENTATION ATX 1 × 120 × 25 mm 6 × PCI-E ; 5 × COM ; 1 × VGA 13,3" LCD ; 2 × USB 3.0 - Oui

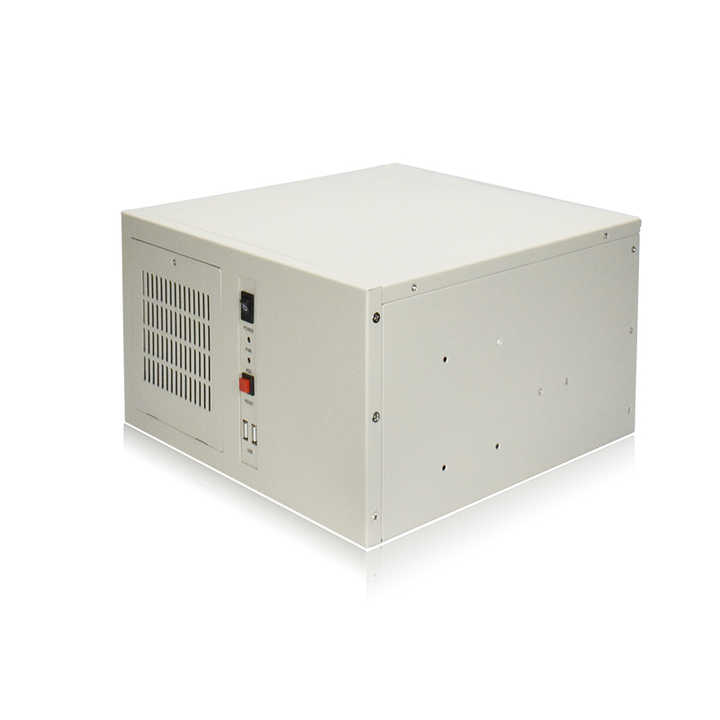

Steel Wallmount Server Case Boîtier mural ISC-WM7CX330-L Support mural (7 emplacements) 330 × 330 × 174 ATX 305 × 244 (12 × 9.6") ; Micro-ATX 245 × 245 (9.6 × 9.6") ; Mini-ITX 170 × 170 (6.7 × 6.7") 1 × 3,5" HDD ; 1 × 2,5" HDD/SSD Aucun Bloc d'alimentation ATX standard 1 × 120 × 25 mm 7 × PCIe pleine hauteur Interrupteur d'alimentation ; interrupteur de réinitialisation ; LED de réseau ; LED de défaut ; 2 × ports USB 2.0 Acier SGCC, 1,2 mm Oui

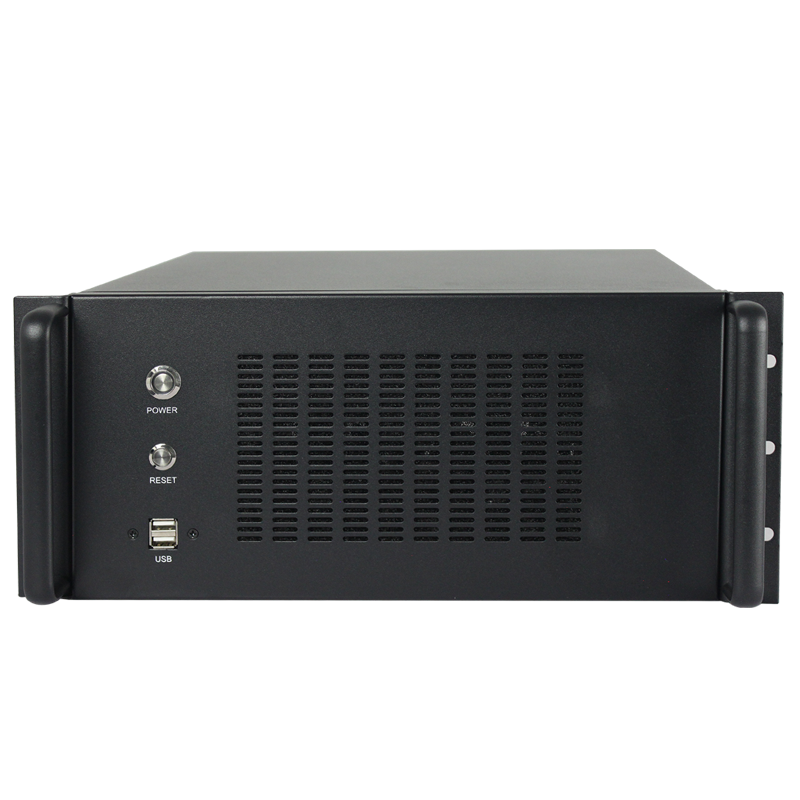

7-Slot Wallmount Server Chassis Valise murale ISC-WMS37B-M Support mural (7 emplacements) 330 × 330 × 160 ATX 305 × 245 (12 × 9.6") 2 × 3,5" + 1 × 2,5" disque dur ou 1 × 3,5" + 2 × 2,5" disque dur Aucun BLOC D'ALIMENTATION ATX 2 × 80 × 25 mm 7 × PCI-E 2 × USB 2.0; Power & Reset switches Acier SGCC, 1,2 mm Oui

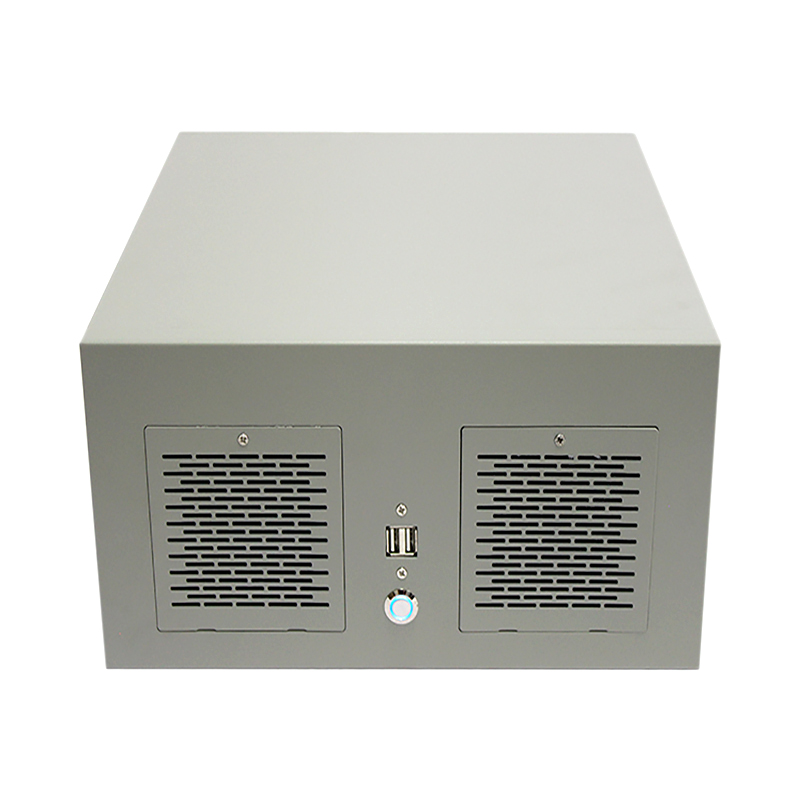

7-Slot Steel Wallmount Chassis Valise murale ISC-WMS37W-M Support mural (7 emplacements) 320 × 330 × 195 ATX 305 × 245 (12 × 9.6") Jusqu'à 2 disques durs de 2,5 pouces ou 1 disque dur de 3,5 pouces Aucun BLOC D'ALIMENTATION 1U FLEX 2 × 80 × 25 mm 7 × pleine hauteur 2 × USB 2.0 ; LED d'alimentation ; panneau amovible avec filtre à poussière Acier zingué, 1,2 mm Oui
Steel Wallmount Server Chassis Valise murale ISC-WMS38B-M Support mural (7 emplacements) 330 × 406 × 196.5 ATX 305 × 345 (12 × 13") 1 × DISQUE DUR DE 3,5 POUCES 1 × CD-ROM ; 2 × disquette BLOC D'ALIMENTATION ATX 1 × 120 × 25 mm 1 × E/S + 7 × pleine hauteur 2 × USB 2.0; Power; Reset; Power & HDD LEDs; PS/2 port Acier zingué, 1,2 mm Oui

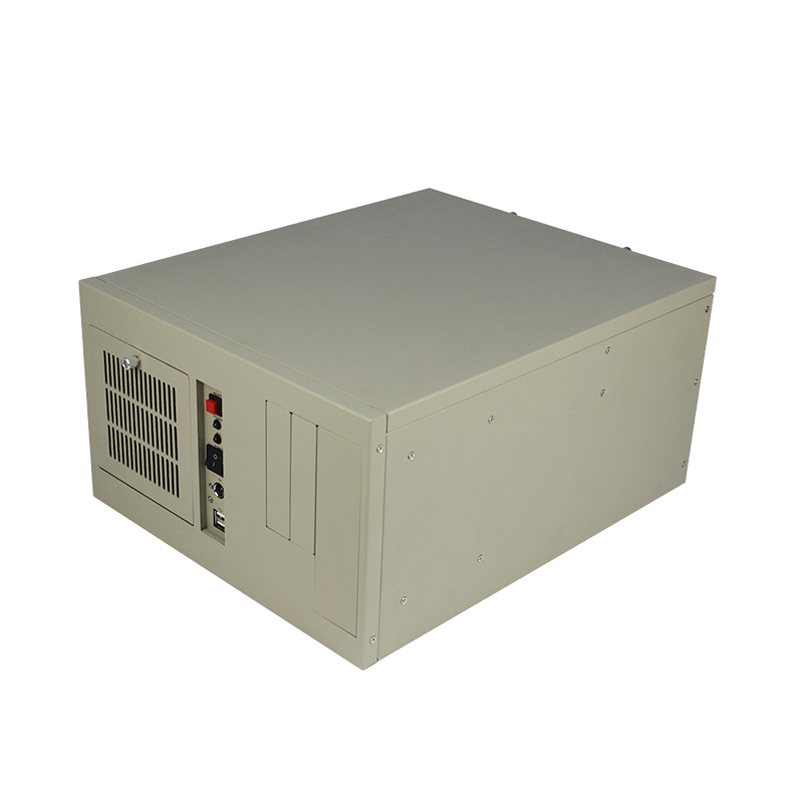

7-Slot Steel Wallmount Chassis Coffret mural ISC-WMS38W-M Support mural (7 emplacements) 330 × 406 × 196.5 ATX 305 × 345 (12 × 13") 1 × DISQUE DUR DE 3,5 POUCES 1 × CD-ROM ; 2 × disquette BLOC D'ALIMENTATION ATX 1 × 120 × 25 mm 1 × E/S + 7 × pleine hauteur 2 × USB 2.0; Power; Reset; Power & HDD LEDs; PS/2 port Acier zingué, 1,2 mm Oui

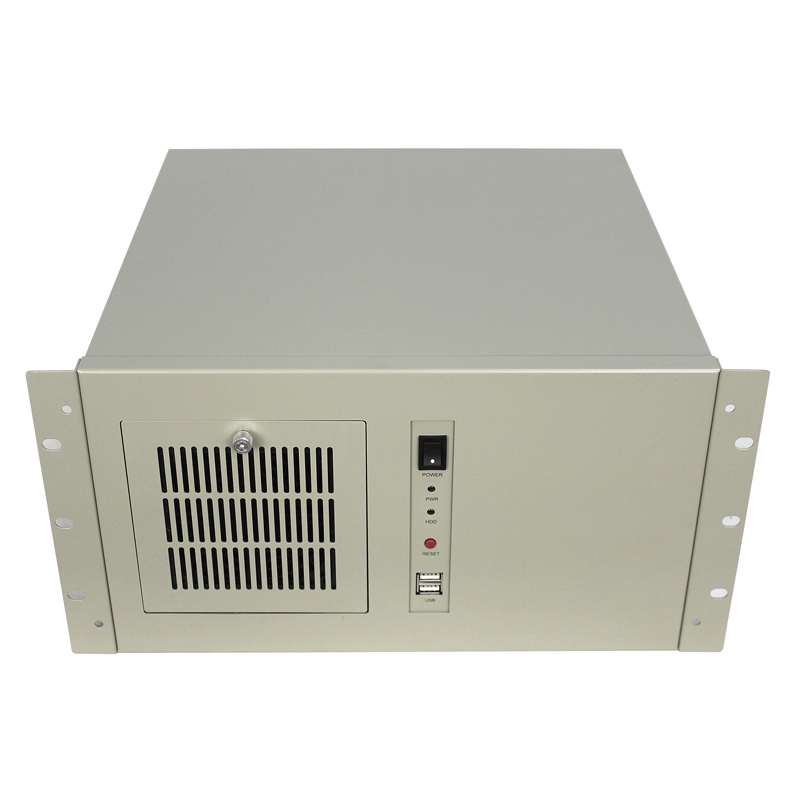

7-Slot Wallmount Case Valise murale ISC-WMS39W-M Support mural (7 emplacements) 383 × 330 × 190 ATX 305 × 245 (12 × 9.6") 1 × DISQUE DUR DE 3,5 POUCES Aucun BLOC D'ALIMENTATION ATX 1 × 120 × 25 mm 1 × E/S + 7 × pleine hauteur 2 × USB 2.0; Power; Reset; Power & HDD LEDs; PS/2 port Acier zingué, 1,2 mm Oui

How Do Motherboard and Backplane Choices Shape the Chassis?

Compatibility depends on mounting points, rear I/O alignment, connector locations, slot geometry, and component clearances. A case advertised for ATX motherboards may accept smaller formats, but an SBC build needs the correct PICMG backplane and matching CPU-card interface.

Which Chassis Product Formats Are Available?

What Chassis Expansion, Bay, Cooling, and Power Details Matter?

Formats range from Mini-ITX enclosures to larger shoebox-style platforms for microATX, ATX, or PICMG configurations. Choose according to card count, storage, service clearance, mounting orientation, installation envelope, future upgrades, service intervals, and replacement planning.

  • Small format: mini itx for limited card requirements.
  • Standard format: micro atx or an atx motherboard for more I/O.
  • SBC format: CPU card with six-, eight-, or ten-slot passive interfaces.
  • Installation: A wall mount chassis may also sit on a desktop; confirm brackets and orientation.

Expansion capacity involves more than opening count. Confirm card length, height, thickness, electrical interface, connector position, and airflow obstruction. Storage planning should distinguish front-accessible drive bays from an internal 3.5 position and account for any 5.25 device.

  • Slots: Opening count alone does not confirm card fit.
  • Cooling: Match airflow and filter service to heat and dust.
  • Power supply: Confirm form factor, output, connectors, and redundancy needs.

The design trade-off is direct: more cards and storage demand airflow, power, and service clearance.

How Should Buyers Select a Chassis for the System?

Start with the computing platform, then work outward to cards, storage, thermals, power, and installation. This sequence reduces late-stage problems with slot spacing, cable routing, airflow, maintenance clearance, and wall access during assembly and servicing.

  • Provide the exact platform model.
  • List slot types, quantities, and card dimensions.
  • Define storage and bay-access needs.
  • Specify cooling and power requirements.
  • Confirm orientation, cabling, and space limits.

Wall Mount Chassis FAQ and Configuration Support

Will my motherboard fit?

Fit depends on form factor, mounting holes, rear I/O, cooler height, power connectors, and installed cards. Send the manufacturer and model number for confirmation rather than relying only on an ATX or microATX label.

Usable capacity depends on openings, electrical interfaces, card thickness, card length, cooling clearance, and adjacent connectors. Share the complete card list so interference and airflow issues can be reviewed before quotation.

Choose storage by capacity, media type, front access, cabling, and maintenance. Confirm whether the build needs a 3.5 HDD position, 2.5 SSD mount, or 5.25 device because bay arrangements differ.

More Questions

Ready to Configure the Right Wallmount Industrial Chassis?

Share your motherboard or backplane model, expansion-slot count, card dimensions, storage needs, cooling demand, power requirements, mounting orientation, and available installation space. HF Technology can review component fit, airflow, cable access, and service clearance to help identify a suitable wallmount chassis configuration.
