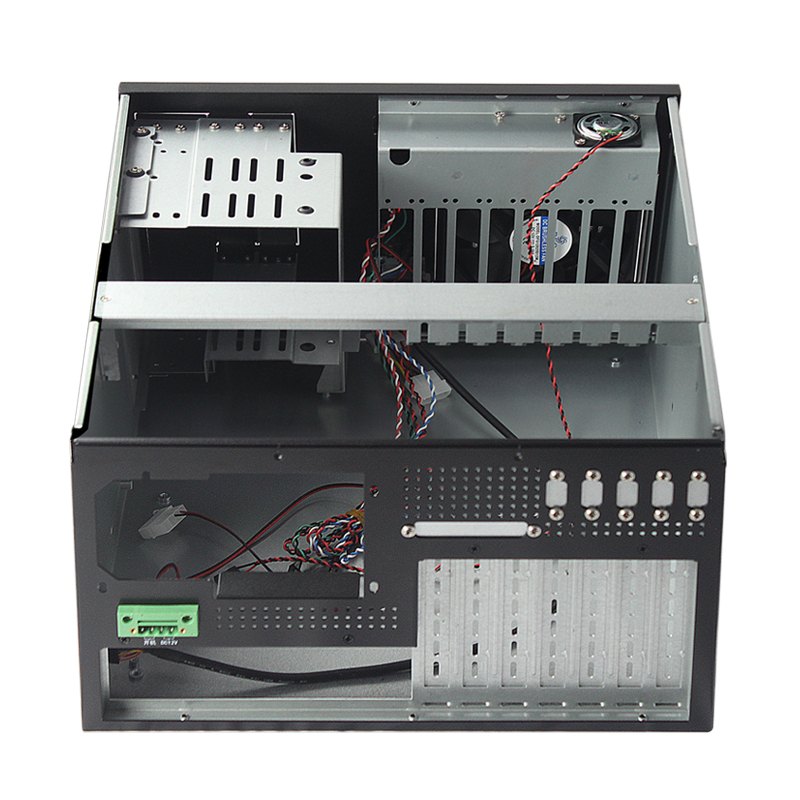

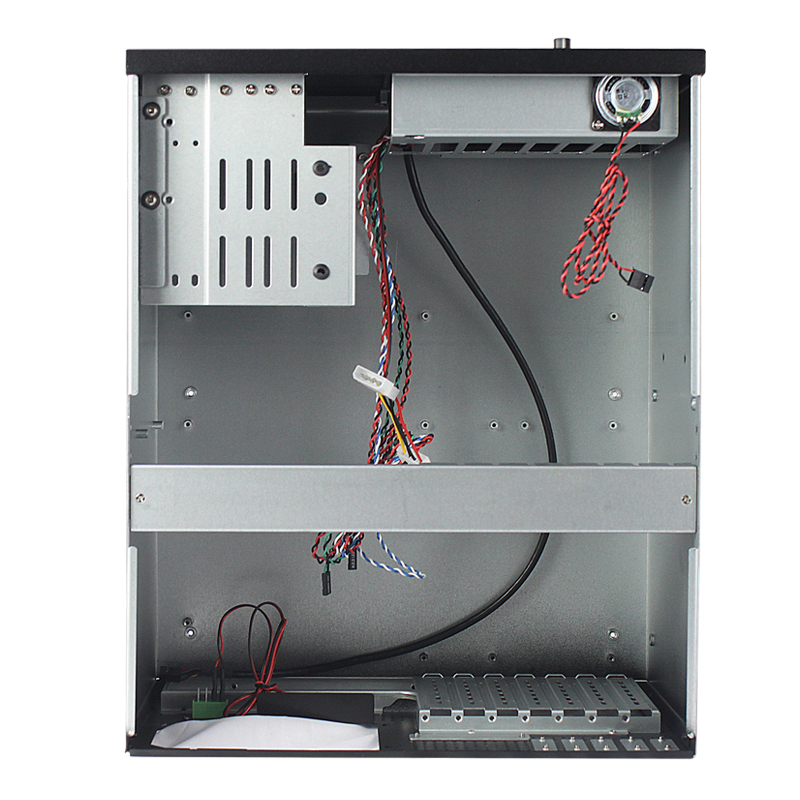

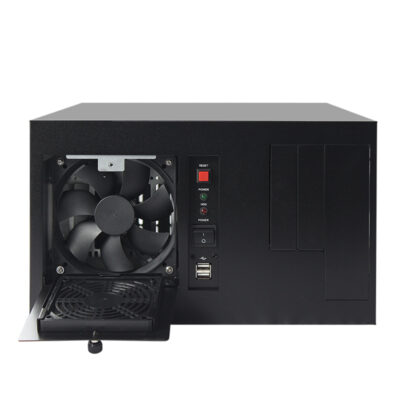

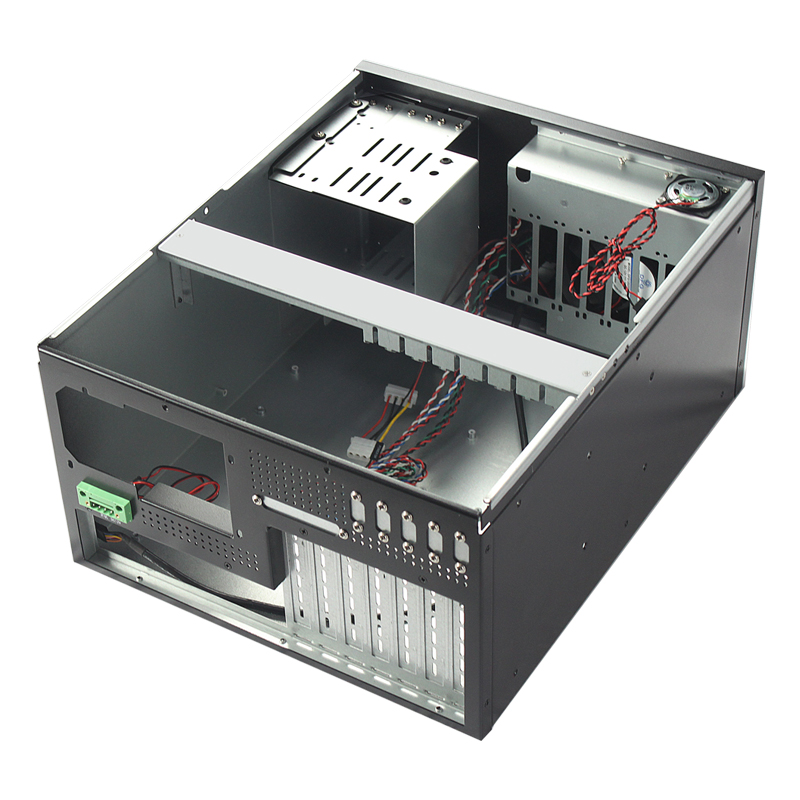

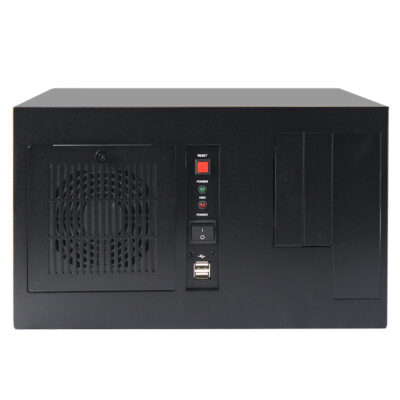

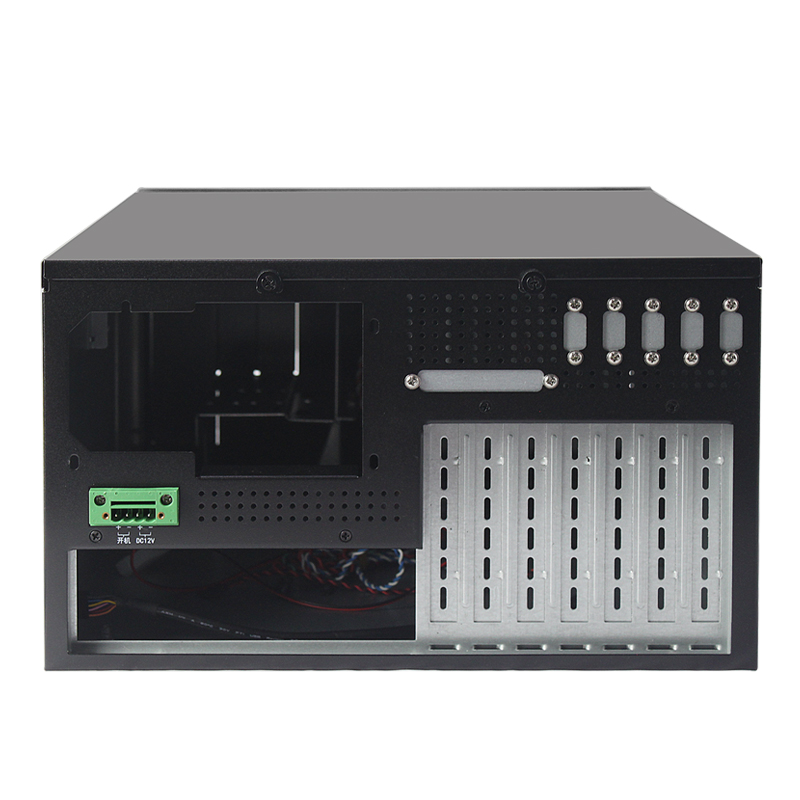

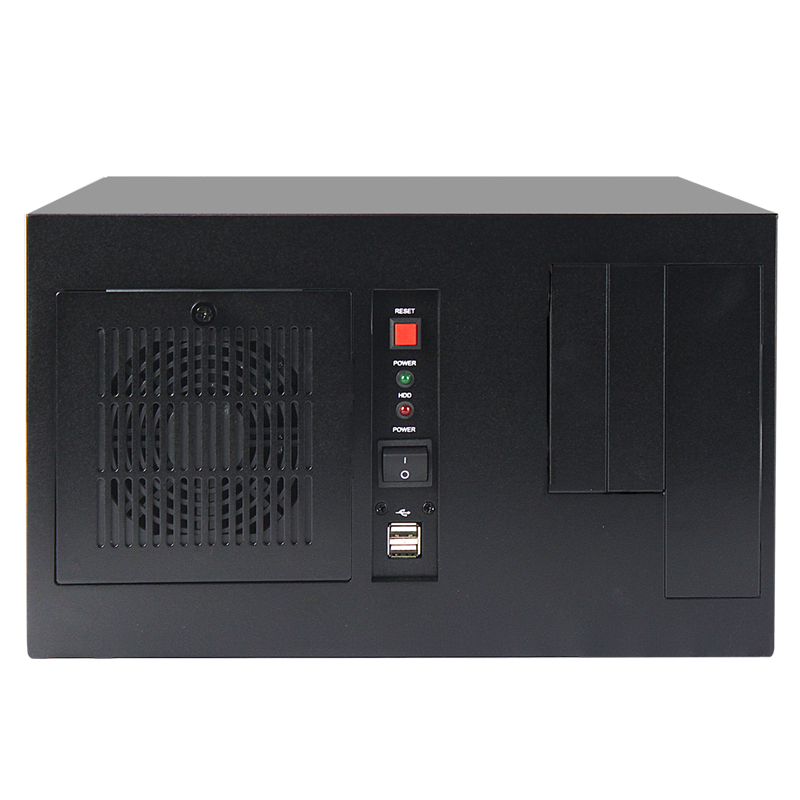

ISC WMS38B M is a steel wallmount server chassis for 12 x 13-inch EEB, ATX, and Micro-ATX boards, with seven full-height PCI slots, legacy drive bays, one 12025 fan, and ATX PSU support. Built for integrators, OEM projects, and bulk sourcing.
Product Overview: ISC WMS38B M is a compact wallmount chassis for space-limited server and control builds.
Product Category: Steel wallmount server case with seven full-height PCI slots.
Key Configuration: 330 x 406 x 196.5 mm, one 3.5-inch bay, one CD-ROM bay, two floppy bays, and one 12025 fan.
Compatibility: Designed for 12 x 13-inch EEB, ATX, and Micro-ATX boards with ATX PSU support; confirm clearance before ordering.
Applications: Enterprise IT, edge systems, security monitoring, industrial control, and integration.
Procurement Value: For system integrators, OEM customers, distributors, prototypes, customization, and bulk sourcing.
| Model | ISC-WMS38B-M |
|---|---|
| Dimensions(mm) | 330(W)*406(D)*196.5 mm(H) |
| Main Board | 12"*13"(305 *345MM) |
| Hard Disk | One 3.5-inch Hard Disk |
| CD-ROM | One CO-ROM and Two Floppy Disk Drives |
| Power | ATX PSU |
| Fan | One 12025 Fan |
| Expansion Slot | One I/O Expansion Slot,Seven Full High and Straight PCI Slots |
| Panel Setting | Two USB2.0; One Power Switch;One Restart Switch;One Power Indicator;One HD Indicator;One PS/2. |
| Case Material | Ma Steel flowers-free zinc plating |
| Material Thickness | 1.2MM |
| Packaging size | 56*46*33CM(0.085CBM) |
| Gross weight | 9.93KG |
| N.W | 6.82KG |
| Container loading quantity | 20＂：329 40＂：682 40HQ＂：800 |
