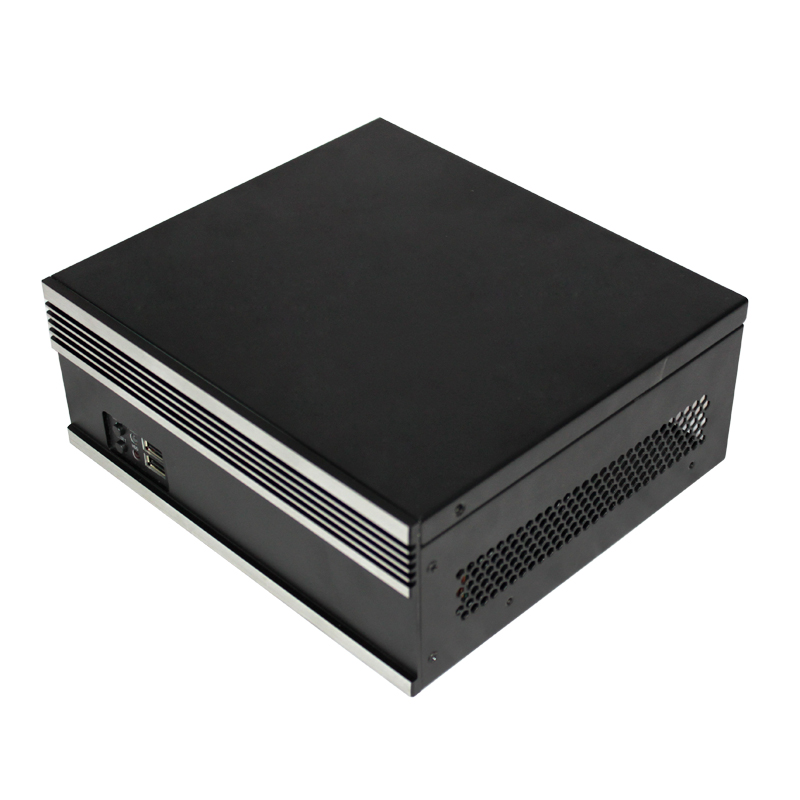

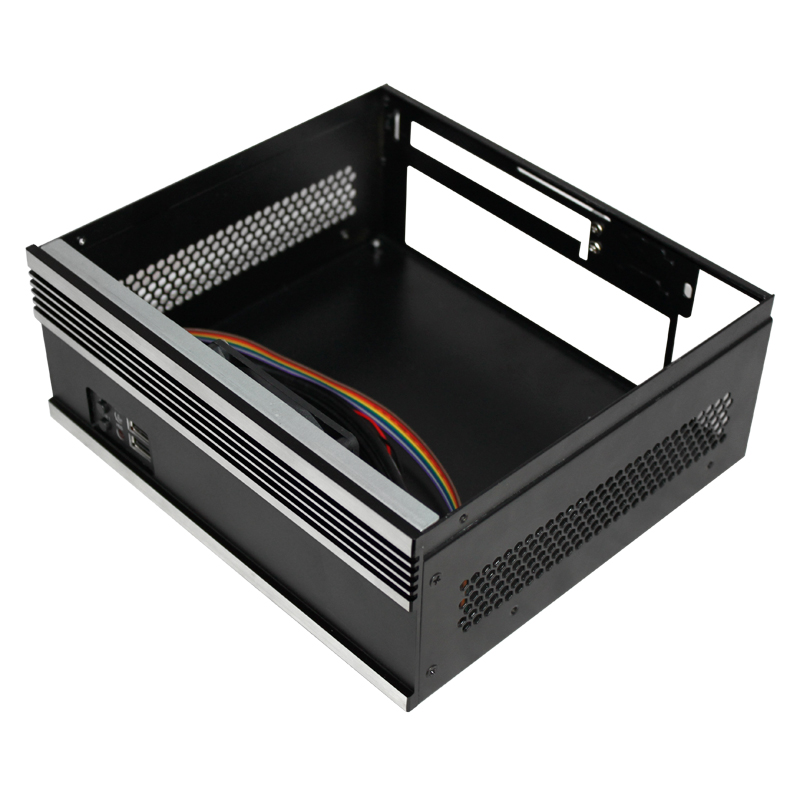

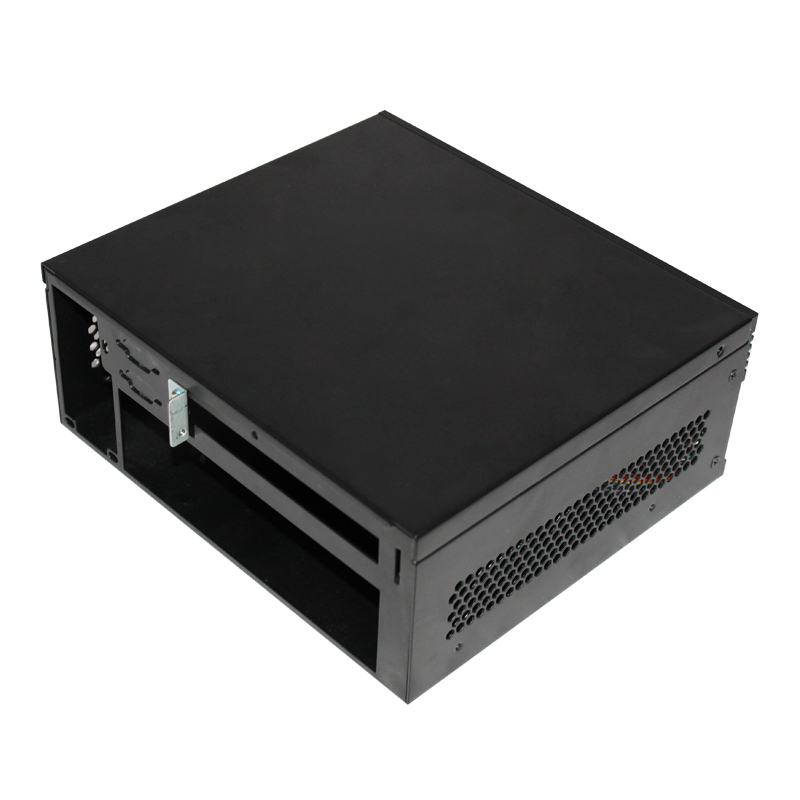

Compact aluminum Mini ITX chassis for 170 x 170 mm boards, with one 3.5-inch or two 2.5-inch drives, one PCI-E slot, Flex PSU support and an 8025 fan. Designed for compact servers, office systems and OEM/ODM procurement.

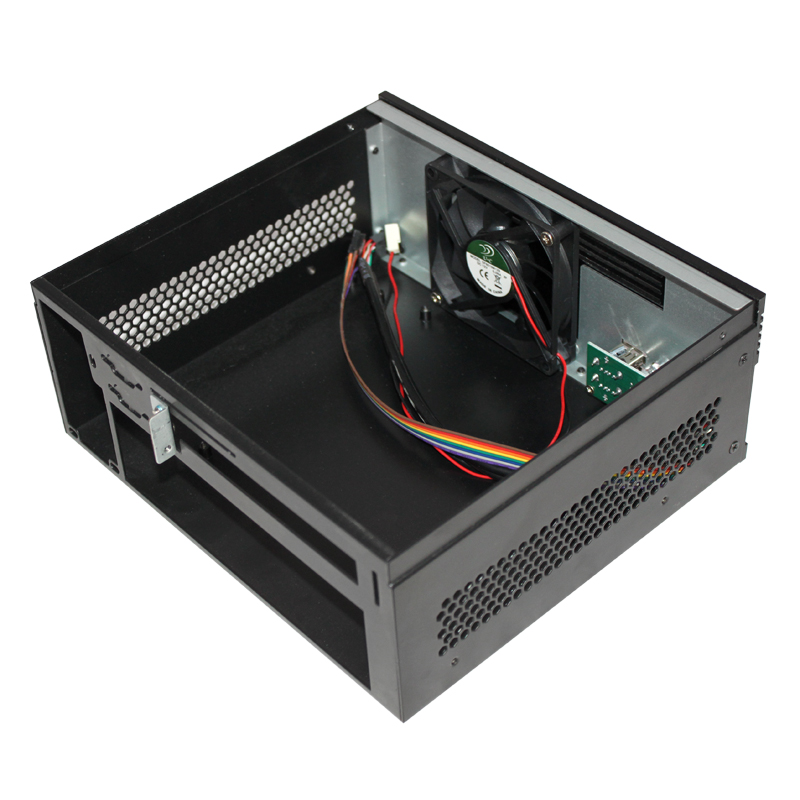

The ISC ITXS21 M is a compact aluminum Mini ITX chassis for small-footprint office, edge, storage, and light server projects.
Product Category:
ITX case for desktop-style deployment.
Key Configuration:
Supports a 170 x 170 mm motherboard, one 3.5-inch or two 2.5-inch drives, one PCI-E slot, Flex PSU format, and one 8025 fan.
Compatibility:
Confirm card clearance, PSU choice, front I/O, and included accessories before ordering. This enclosure is not a complete server system.
Applications:
Designed for system integrators, IT providers, developers, research labs, and appliance builders.
Procurement Value:
Suitable for OEM/ODM customization, prototyping, volume sourcing, and distributor cooperation.
| Model | ISC-ITXS21-M |
|---|---|
| Dimensions(mm) | 280(W)*230(D)*88.9 mm(H) |
| Main Board | 7"* 7"(170*170MM) |

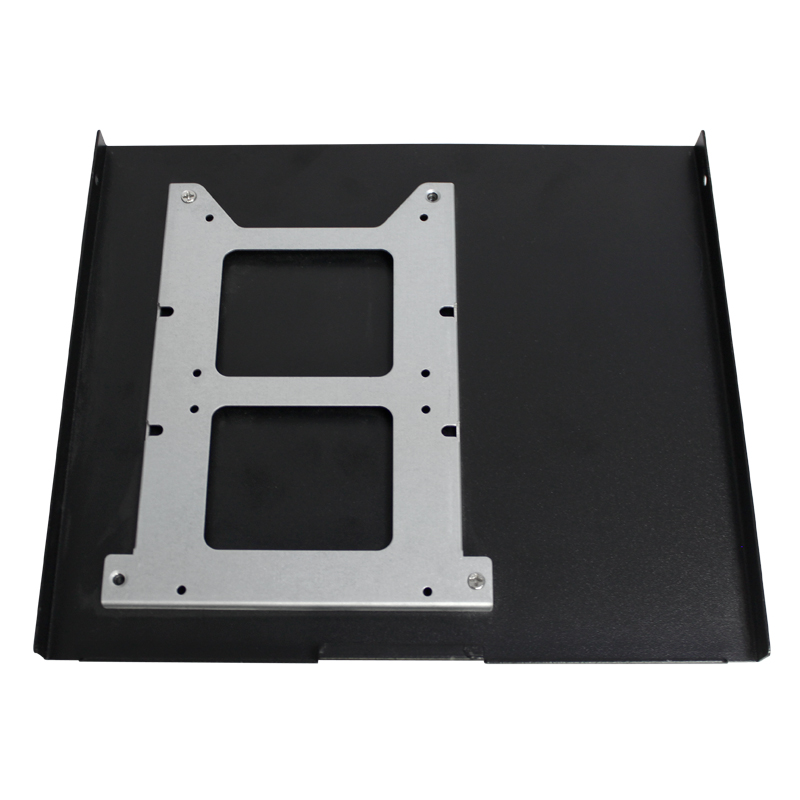

| Hard Disk | 1*3.5-inch Hard Disk or 2*2.5-inch Hard Disks |
| CD-ROM | No |
| Power | FLEX PSU |

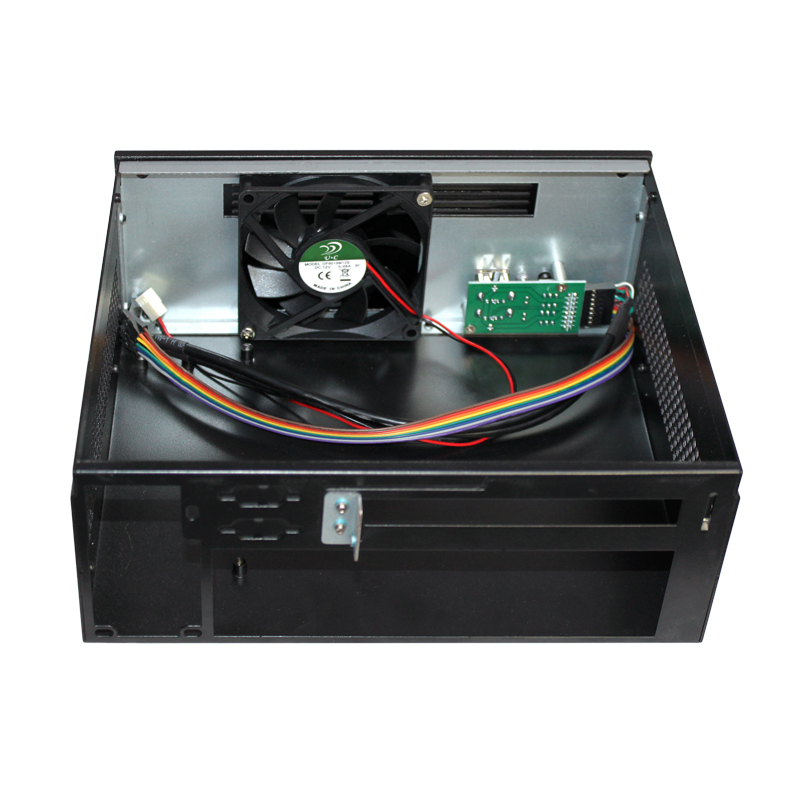

| Fan | One 8025 Fan |

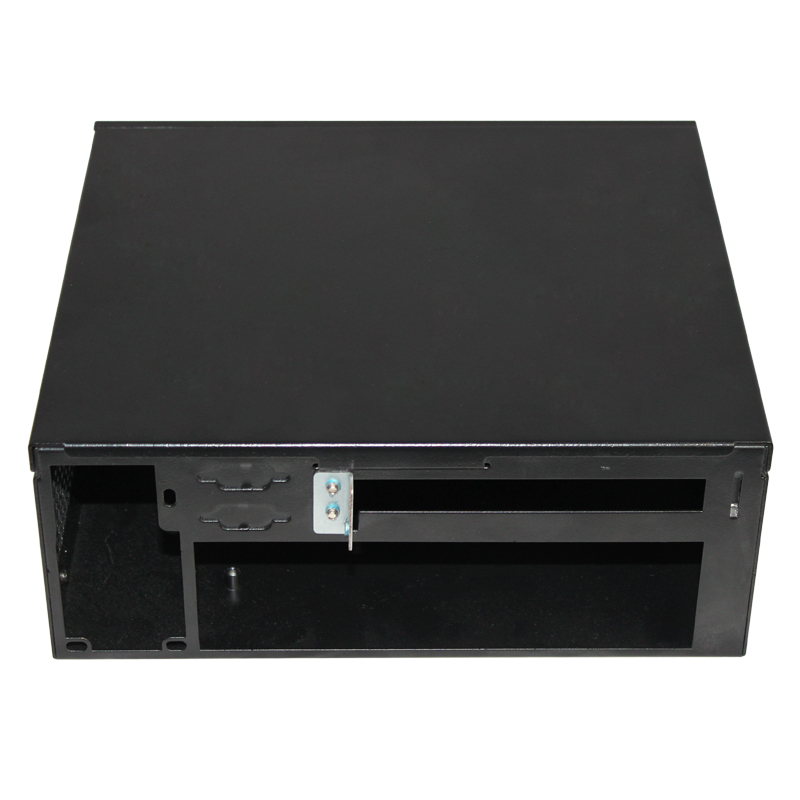

| Expansion Slot | 1*PCI-E slot |

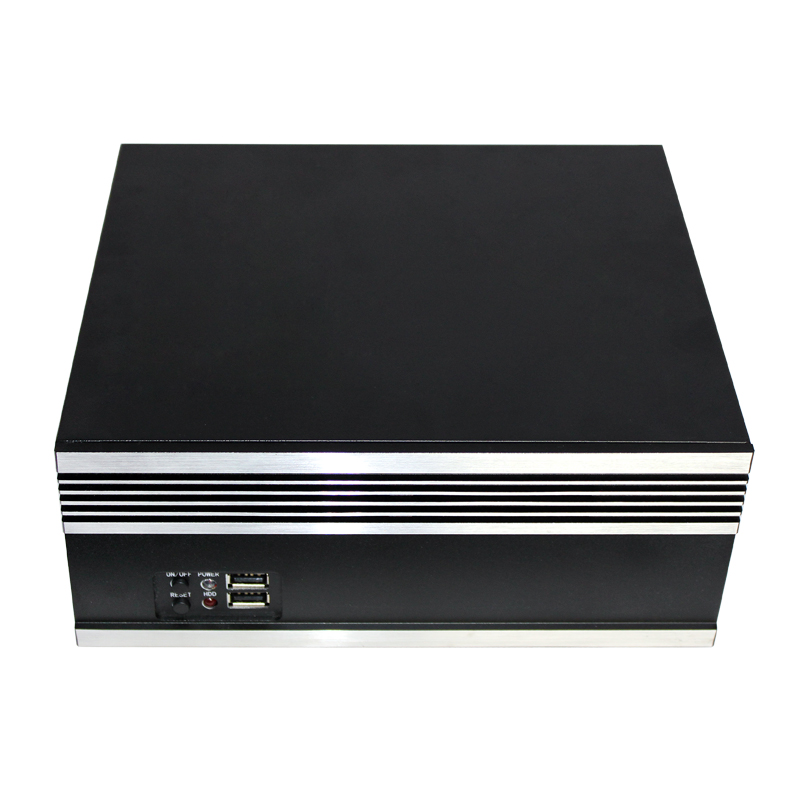

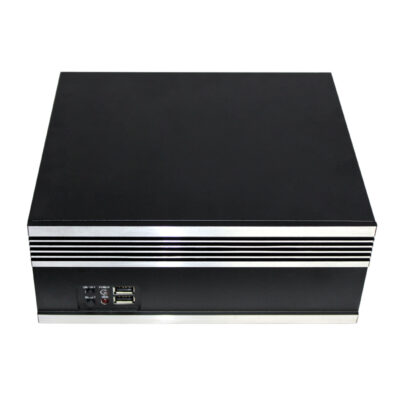

| Panel Setting | Two USB2.0; One Power Switch; One Restart Switch; One Power Indicator; One HD Indicator |
| Case Material | Aluminum |
| Material Thickness | 1.2mm |
| Packaging size | 30*27*12 CM |
| Gross weight | 1.73 |
| N.W | 1.2 |
