Custom heat shrink insulated copper busbar for EV batteries, energy storage, switchgear and power distribution. Supports OEM bending, punching, plating and insulation design.

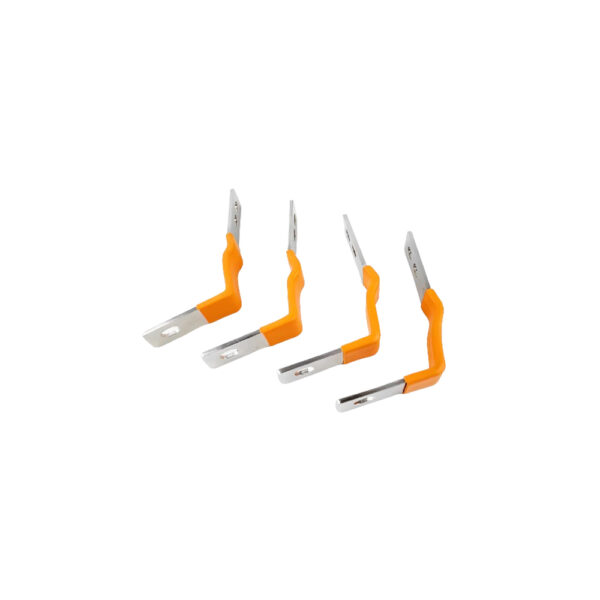

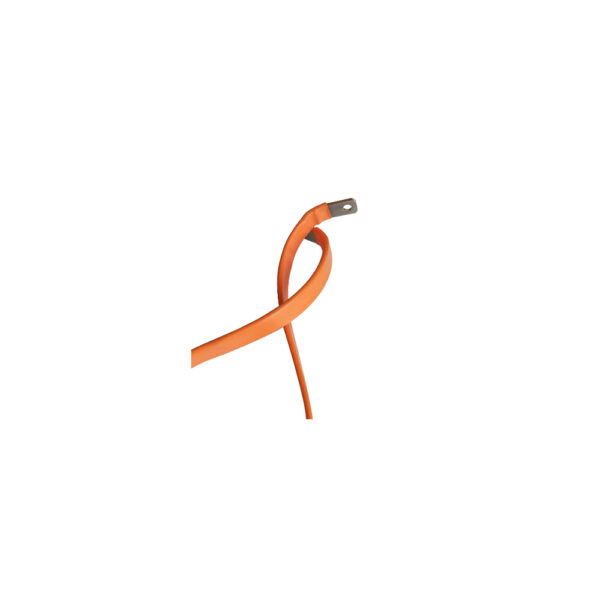

Our Heat Shrink Tube Insulated Copper Busbars are engineered to provide exceptional electrical insulation and durability for various applications. This busbar is forming a tight insulation layer by covering heat-shrinkable tube on the surface of copper busbar. The material is radiation cross-linked polyolefin or environmentally friendly halogen-free flame retardant polymer with excellent electrical properties, temperature resistance and mechanical strength. This product is not only used to improve the insulation protection level of busbar, but also can shorten the distance between phases, adapt to the trend of miniaturization of switchgear, and at the same time, it has the functions of antirust, anti-villain short-circuit and so on.
| Material Standard | Heat Shrink Tube Insulated Copper Busbar |
|---|---|
| Copper Grade: | GB : T2 Copper with Min. 99.95% DIN: E-Cu58 (Number: 2.0065) EN: Cu-ETP ( Number: CW004A) ISO: Cu-ETP UNS: C11000 JIS: C1100 BS: C101 Other Material also can be customized |
| Copper Foil Thickness | 0.1mm, 0.2mm and 0.5mm (0.5mm is not so flexible) |
| Copper foil width | 10mm-300mm |
| Insulation surface | PE heat shrink tube |
| Surface Plating | Nickel, tin or silver plated etc |
| Inside diameter before shrinkage: | Φ12mm~Φ200mm (low voltage) to Φ235mm (high voltage). |
| Shrinkage ratio: | 2.5:1, wall thickness increases to 1.0~3.2mm after shrinkage (thicker for reinforced type). |
| Voltage level: | Covering 1kV to 35kV, some high-voltage models support 25kV (e.g. TE Connectivity’s Rikan BPTM series). |
| Shrinkage temperature: | 84℃~120℃ (low-pressure), 160℃ (high-pressure heat-resistant test). |
| Material | Copper with PE heat shrink insulation |
|---|---|
| Insulation Type | Heat shrink tube insulated |
| Surface Treatment | Tin, nickel, silver or custom plating |
| Structure | Custom bent rigid busbar |
| Application | EV battery, ESS, switchgear connection |
| Service Type | OEM/ODM custom manufacturing |
