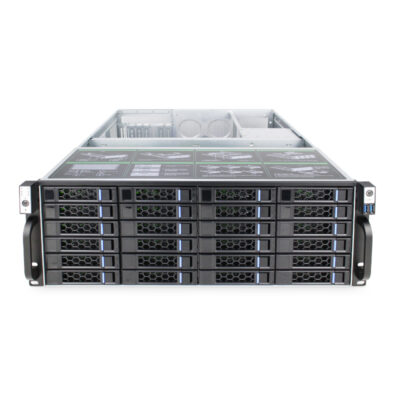

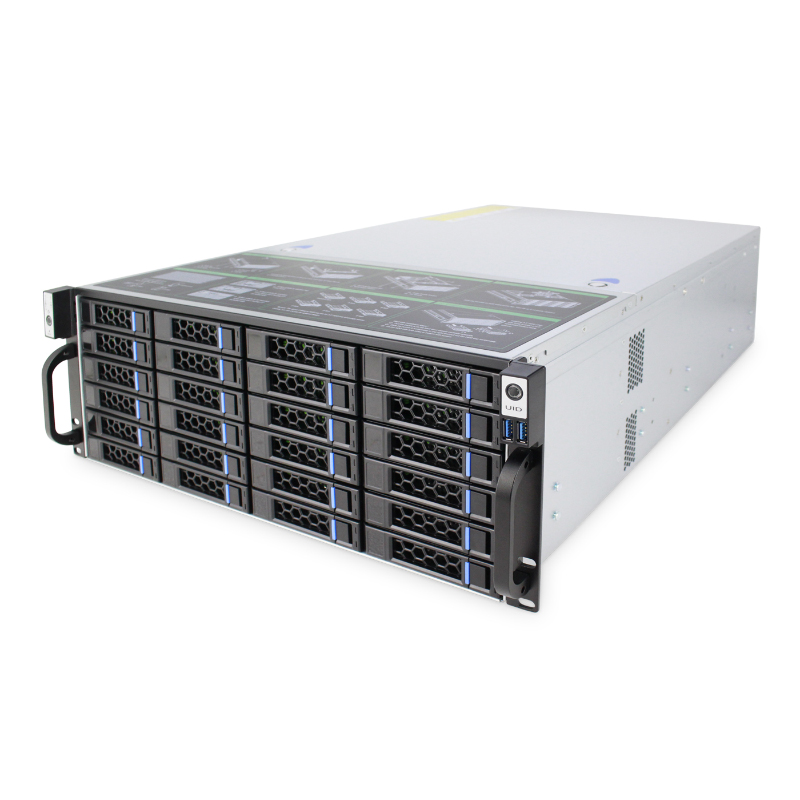

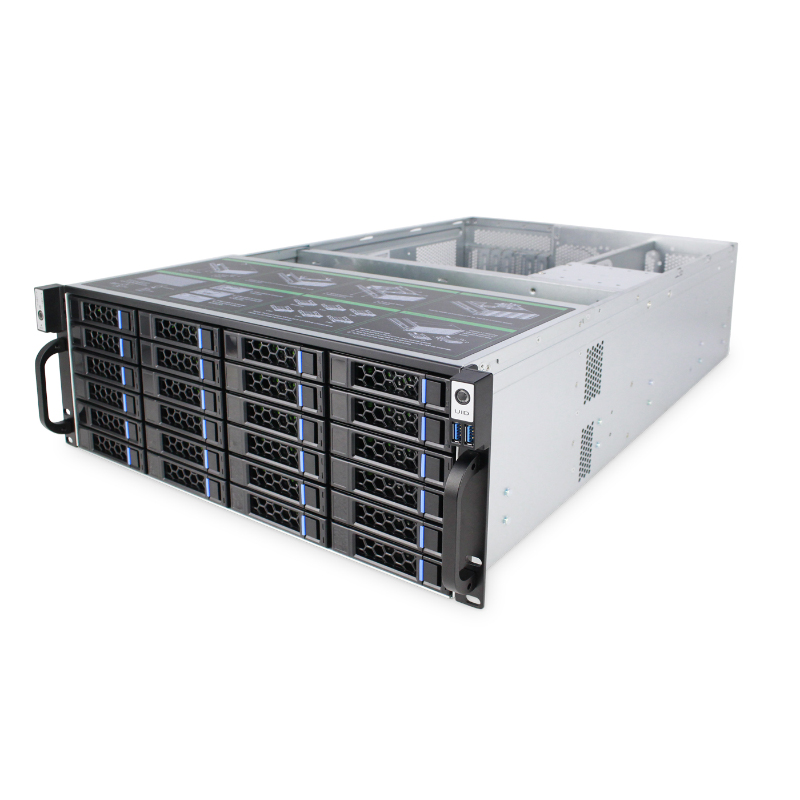

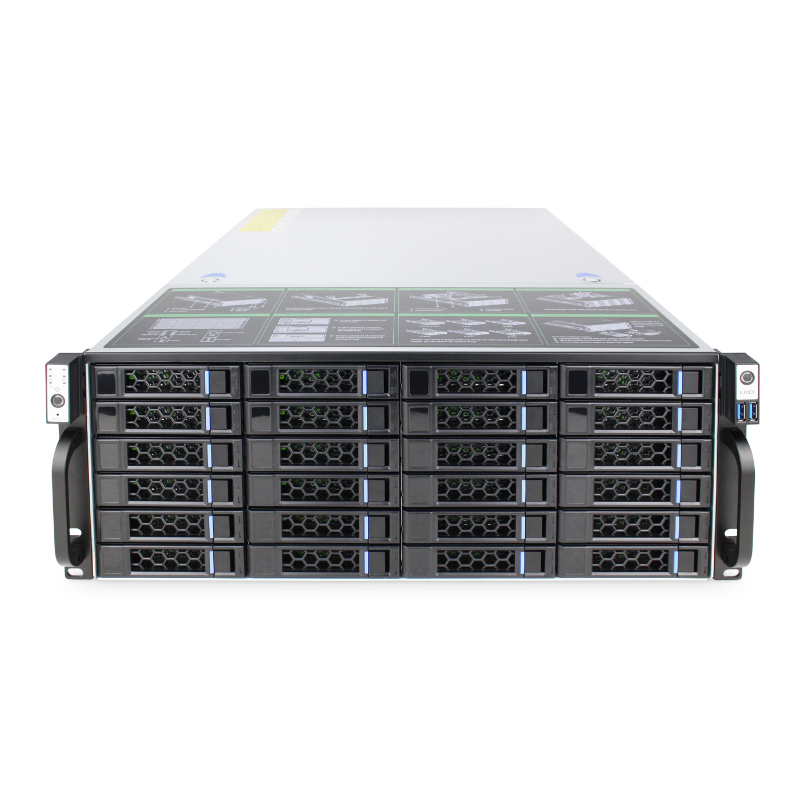

ISC-SC465-H24-T is a 4U rackmount storage chassis with 24 front 3.5-inch bays supporting 2.5-inch drives, 3 internal 2.5-inch bays, 7 full-height expansion slots, ATX/CRPS PSU support, and OEM/ODM value for storage and surveillance projects.

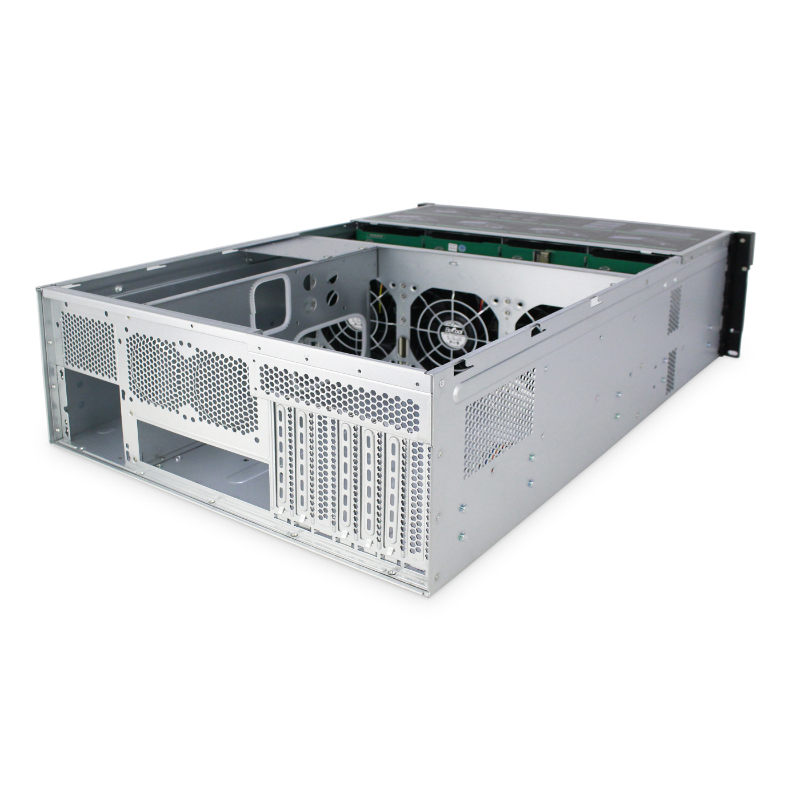

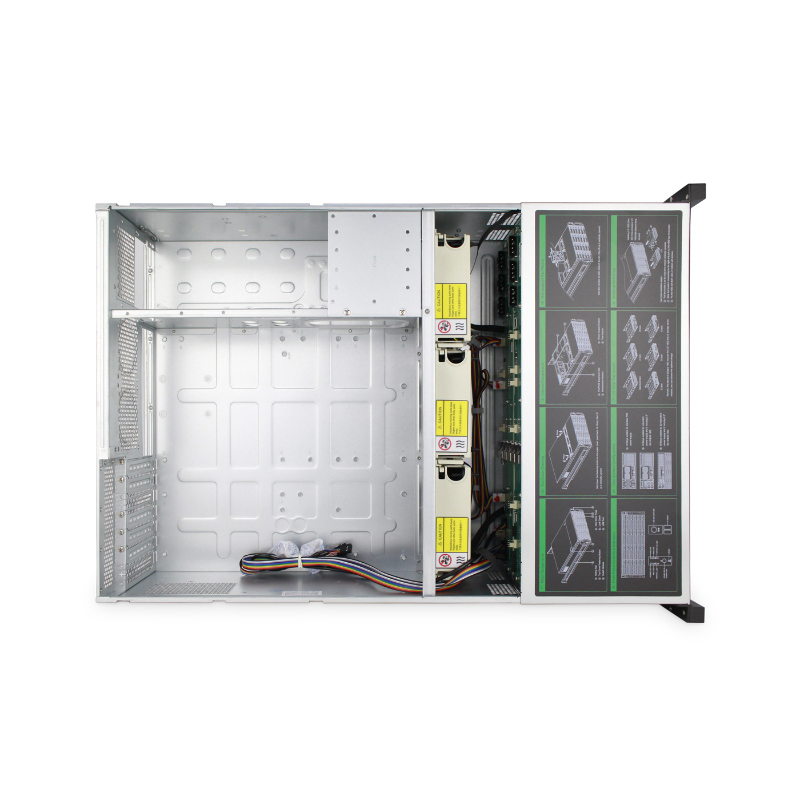

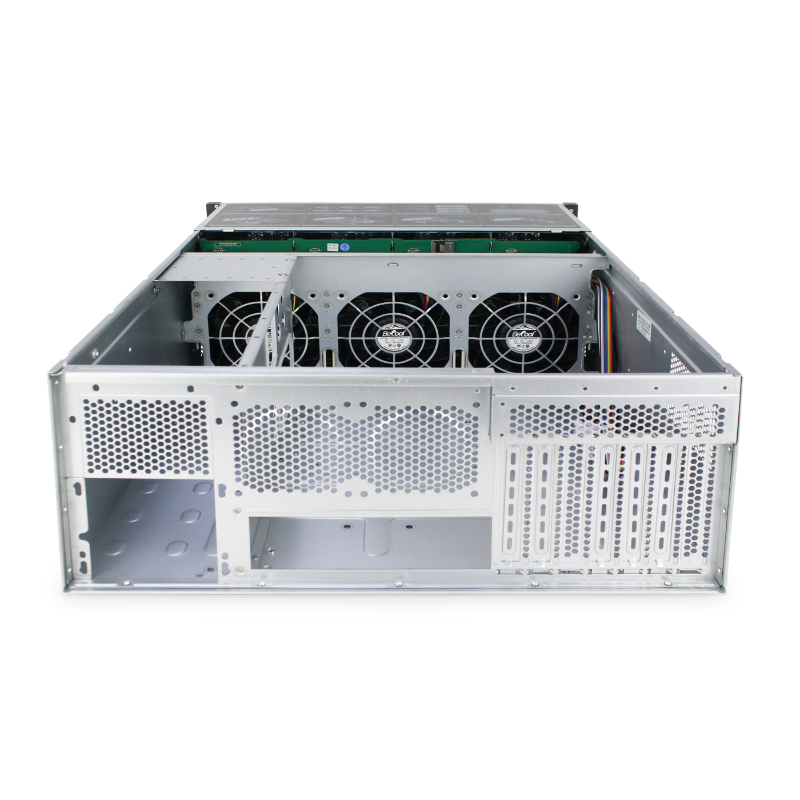

The ISC-SC465-H24-T is a 4U rackmount storage chassis made from 1.0 mm SGCC fingerprint-resistant sheet metal. Front-access bays, a top-cover release, and three 120 mm fan positions with two standard hot-swappable fans support airflow, durability, and easier maintenance.
It provides 24 front 3.5-inch bays for selected 2.5-inch drives, three internal 2.5-inch bays, seven full-height PCI/PCIe slots, and ATX or CRPS PSU support. Designed for cloud storage, big-data, surveillance, private-cloud, and integration workloads, it suits data centers, integrators, OEM customers, and distributors. Confirm motherboard, backplane, rail, cable, and PSU configurations before ordering.
| Modèle | ISC-SC465-H24-T |
|---|---|
| Taille de l'étui | Profondeur 560 mm × largeur 437,5 mm × hauteur 176 mm |

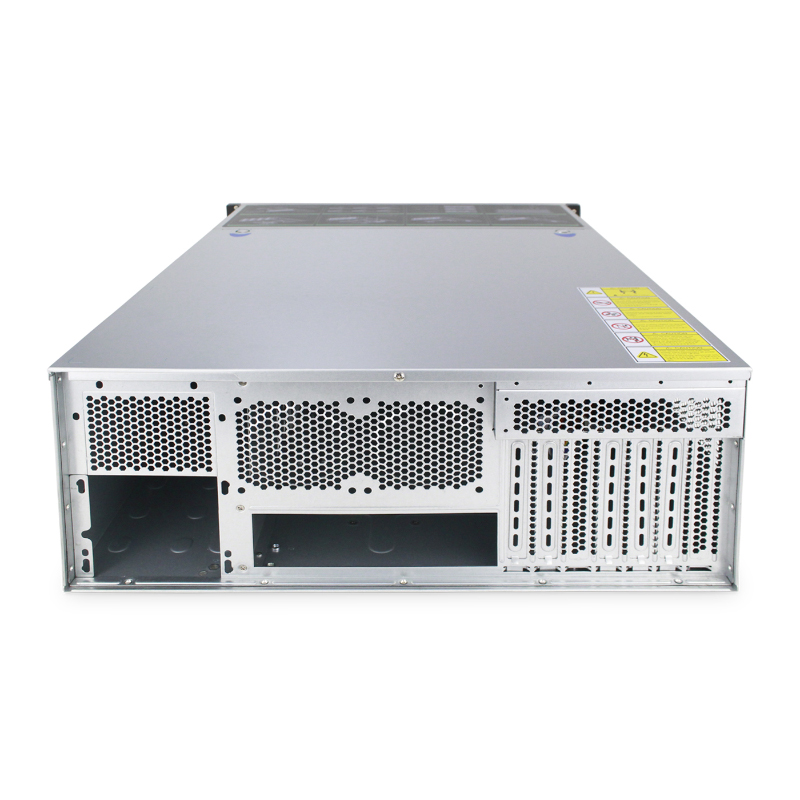

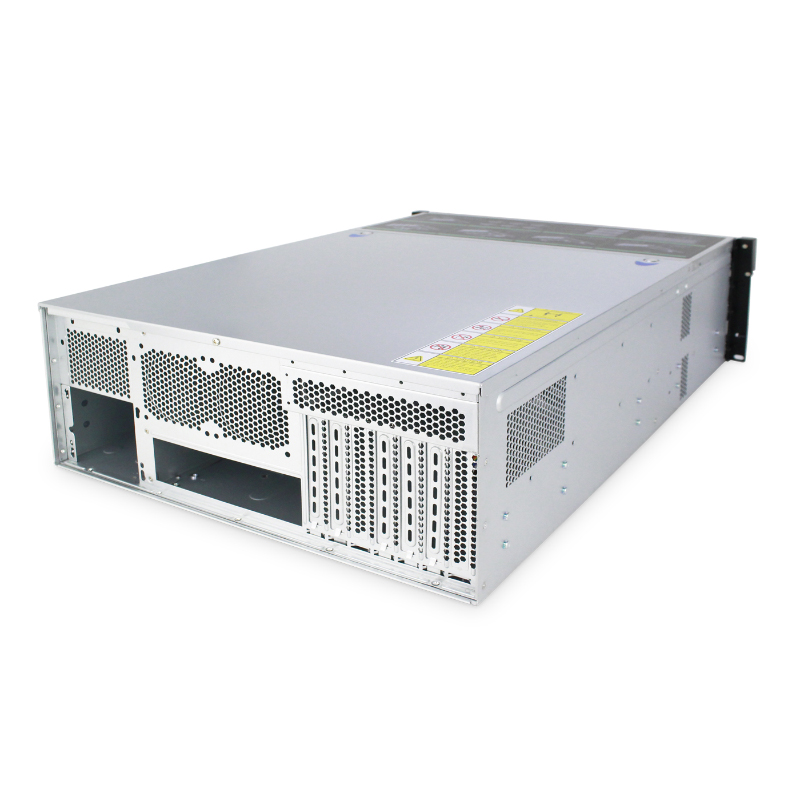

| Direction des fentes d'extension arrière | 7 emplacements d'extension PCI/PCIE pleine hauteur, insertion verticale |
| Couvercle du guide d'air | Non |
| Domaine d'application | Stockage en nuage, informatique en nuage, big data, surveillance de la sécurité et autres domaines. |
| Matériau | Respectueux de l'environnement, résistant aux empreintes digitales 1.0mm SGCC |
| Disque dur | 24 front 3.5" HDDs (compatible with 2.5" HDD/SSD), 3 internal 2.5" HDD/SSDs; hard disk extraction box adopts EMI-proof design, with light guide, which can indicate the working status of hard disk; slide rail design, smooth extraction |
| Taille de la carte mère | Standard motherboard of 12" × 10.5" and below |
