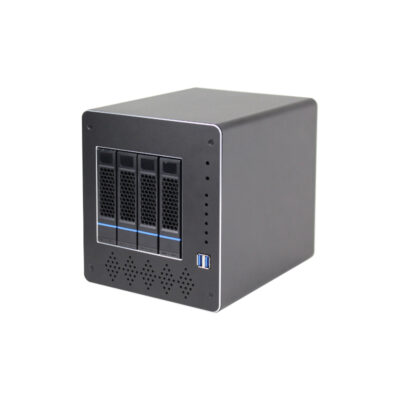

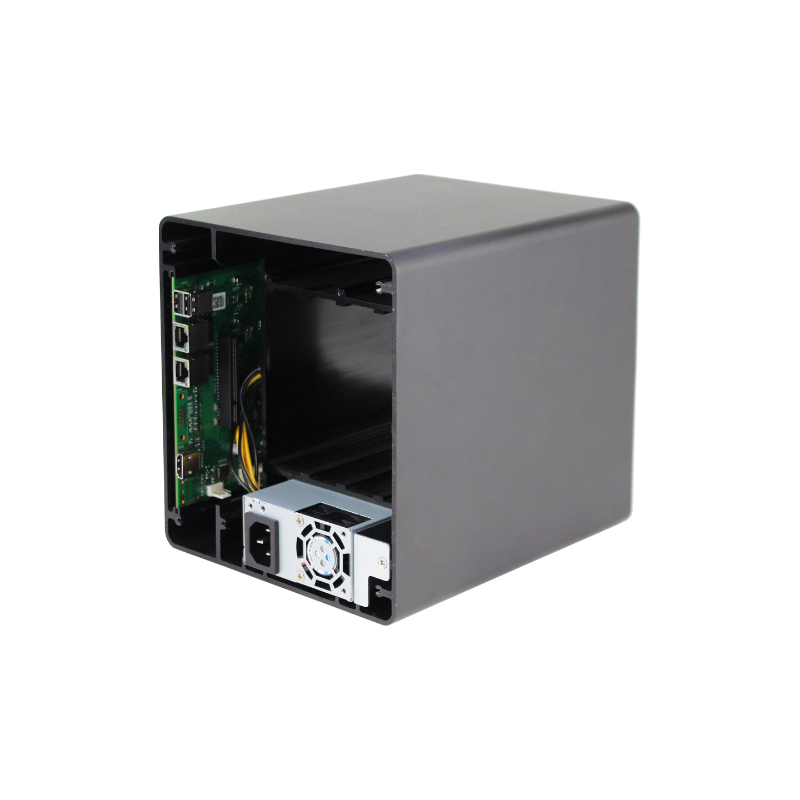

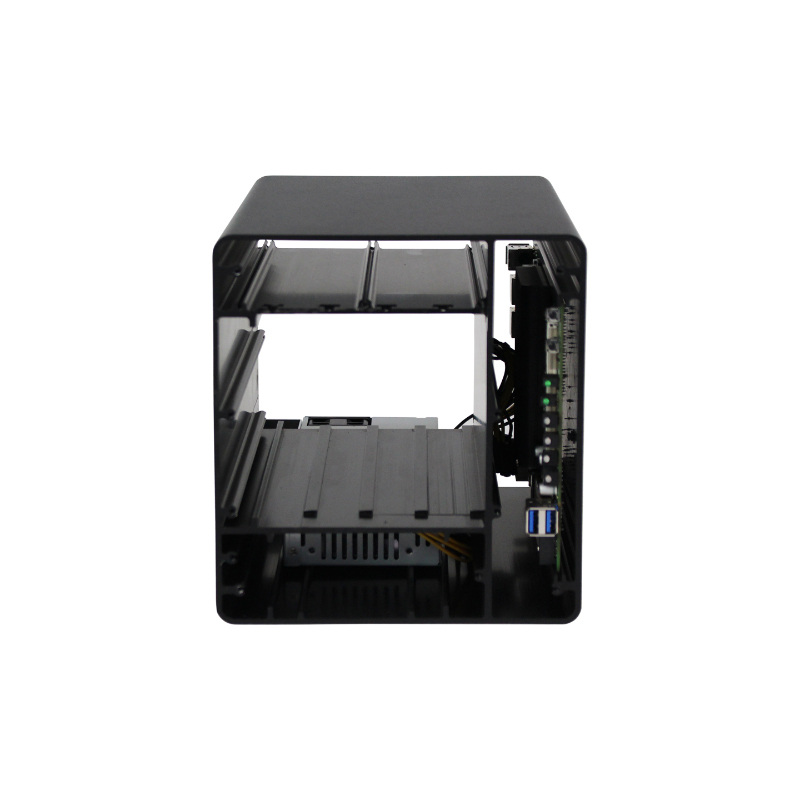

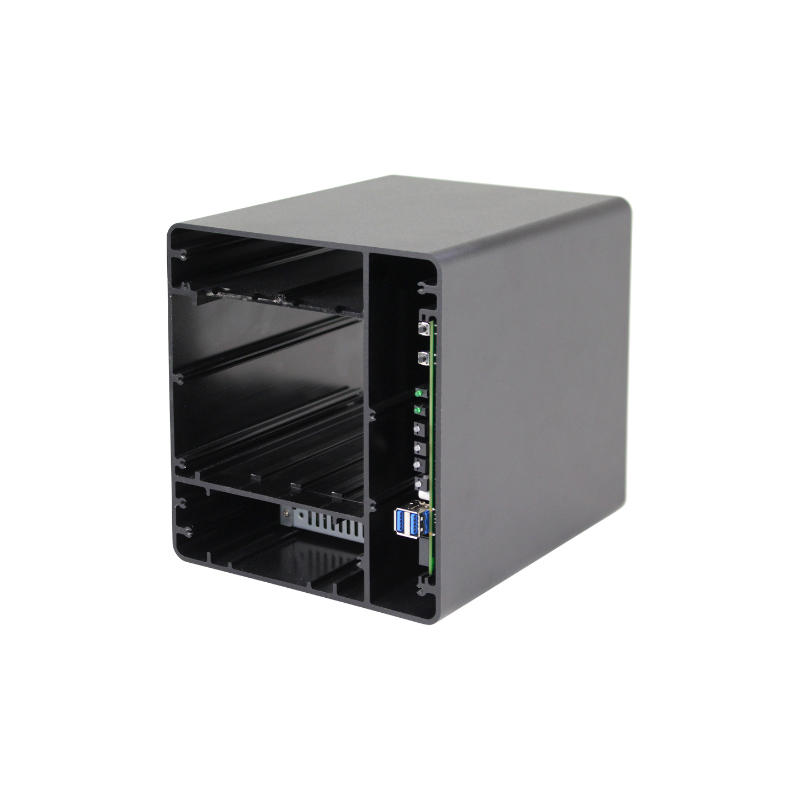

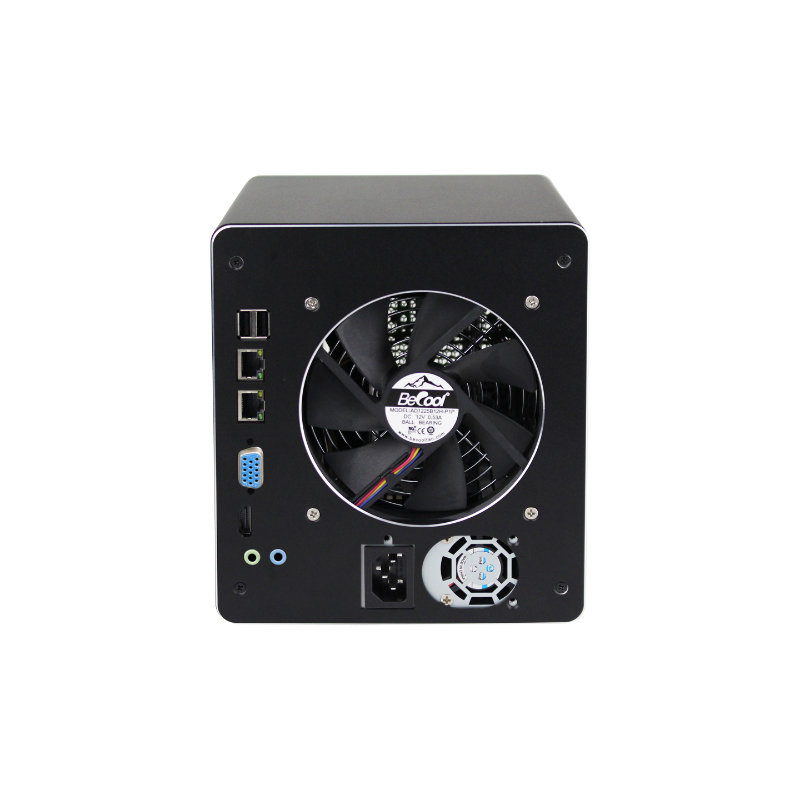

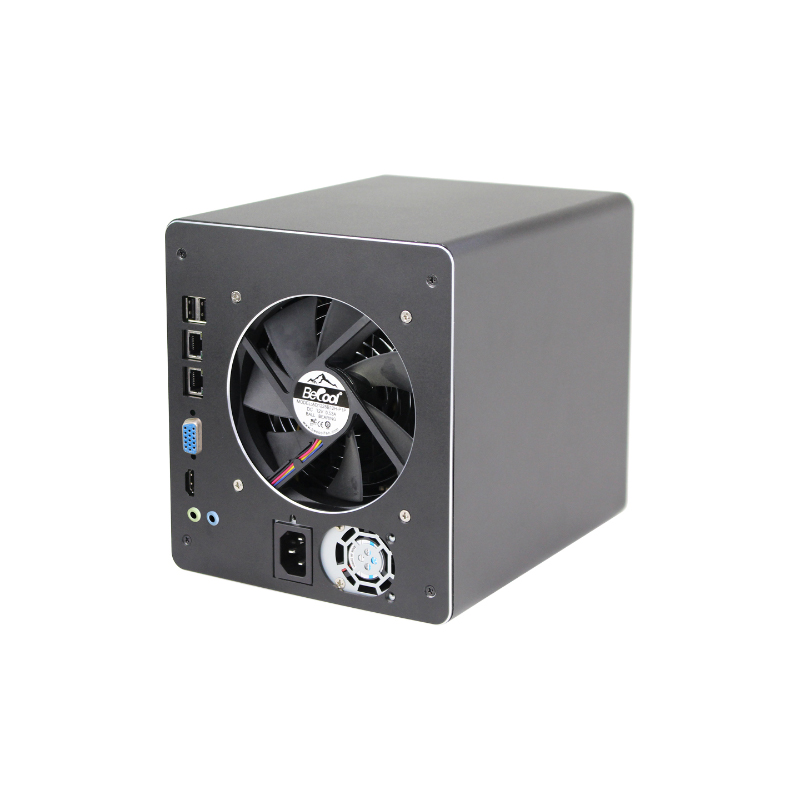

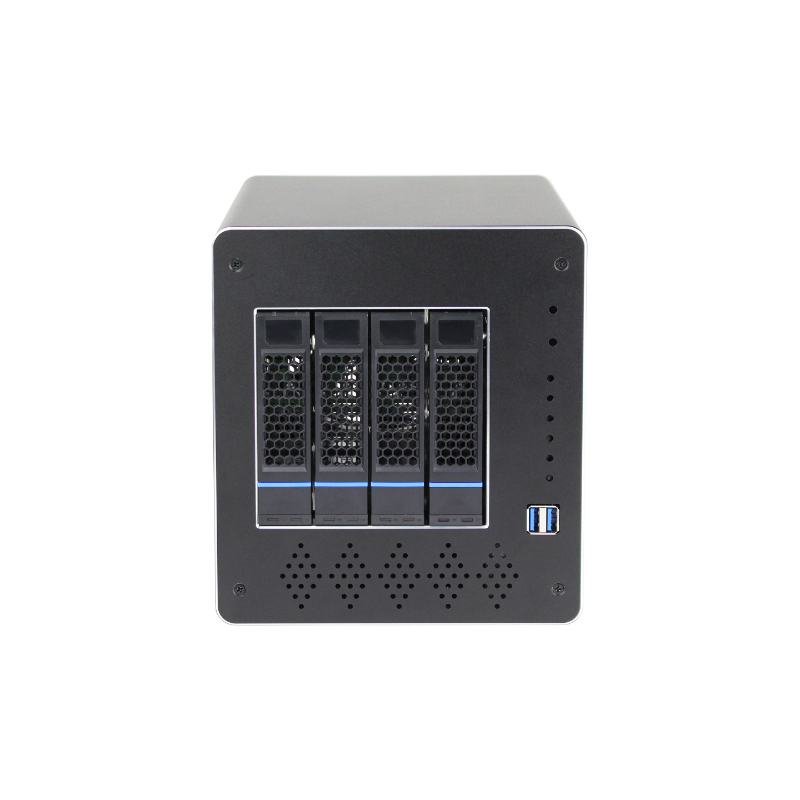

Compact ISC NS04AFB T 4-bay NAS enclosure with four 3.5-inch bays, 2.5-inch drive compatibility, Mini-ITX support, a 120 mm cooling fan, and two front USB ports. Designed for private cloud, office storage, OEM/ODM projects, and volume sourcing.
Product Overview: ISC NS04AFB T is a compact 4-bay NAS enclosure; core system hardware is configured separately.
Product Category: Mini-ITX NAS case for desktop storage.
Key Configuration: Four 3.5-inch bays, 2.5-inch drive compatibility, 120 mm fan, two front USB ports, and frosted black aluminum profile.
Compatibility: Designed for customized 6.7 x 6.7-inch Mini-ITX motherboards; PSU, backplane, drives, and cables depend on configuration.
Applications: Private cloud, office video storage, backup, and small-business file services.
Procurement Value: For integrators, distributors, and OEM/ODM buyers seeking configurable volume supply.
| Modelo | ISC-NS04AFB-T |
|---|---|
| Dimensiones (mm) | Profundidad 263mm × Anchura 160mm × Altura 180mm |
| Material | Perfil de aluminio |
| HDD Bit | 4 standard 3.5" hard drive bays, compatible with 2.5" hard drives |
| Fan Position | 1 ventilador 12025 |
| Suitable for Motherboard | Customized Mini-ITX motherboard (6.7"*6.7") |
| Interfaz USB | 2 puertos USB frontales |
| Luces indicadoras e interruptores | LED de alimentación*1, LED de disco duro*1, SW de alimentación*1, Reset*1 |
| Fuente de alimentación | Fuente de alimentación Flex 1U |
| Color | El perfil de aluminio es negro esmerilado, la superficie exterior está rociada con pintura de caucho, efecto esmerilado, moda de gama alta |
| Campo de aplicación | Ampliamente utilizado en almacenamiento doméstico, nube privada, vídeo de oficina y otros campos |
