An industrial rackmount chassis is a rugged computer enclosure that houses processing, storage, power, and expansion hardware in a standard 19-inch equipment frame. It helps protect internal components while organizing service access for automation, manufacturing, telecom, surveillance, edge computing, AI, industrial computer, and rackmount server applications.
A rackmount chassis is a metal housing engineered for installation on standardized mounting rails. It provides the mechanical structure, airflow path, power integration, and access points needed to build a serviceable industrial computer chassis.
A rackmount case supports front-to-rear airflow, protected access, and industrial computing.
sfFEGVSGVgv
| صورة المنتج | عامل الشكل | Model Product Link | الأبعاد (مم) | حجم اللوحة الأم (مم) | دعم محرك الأقراص (الكمية) | عدد المعجبين | نوع الطاقة | سُمك المادة (مم) | الوزن الصافي (كجم) | الوزن الإجمالي (كجم) | مجال التطبيق | التخصيص |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

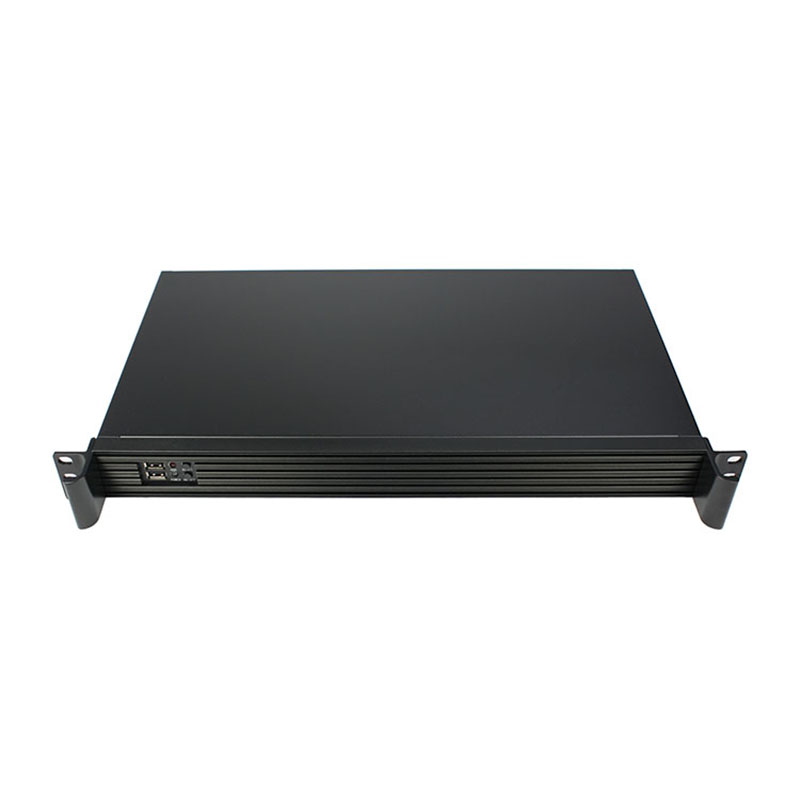

1U | علبة ISC-SC1U1U250L-M 1U Rackmount Case 1U Rackmount | 482×250×44.5 (19.0″×9.8″×1.8″) | 170×170 (6.7″×6.7″) | قرص صلب 1×3.5 بوصة أو 2×2.5 بوصة | 2 | طاقة مرنة 1U 1U | 1.0 | 2.55 | 3.65 | خادم للأغراض العامة | نعم |
|

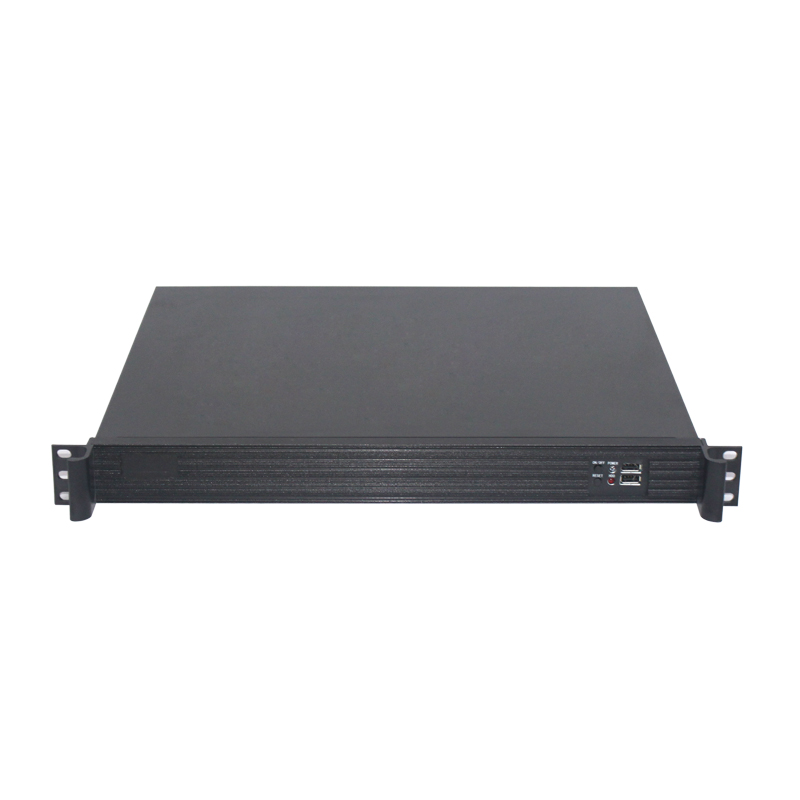

1U | علبة ISC-SC1U390L-M 1U Rackmount Case 1U Rackmount | 482×390×44.5 (19.0″×15.4″×1.8″) | 305×340 (12.0″×13.4″) | قرص صلب 1×3.5 بوصة أو 2×2.5 بوصة | 2 | طاقة قياسية 1U 1U | 1.0 | 3.518 | 4.832 | خادم للأغراض العامة | نعم |
|

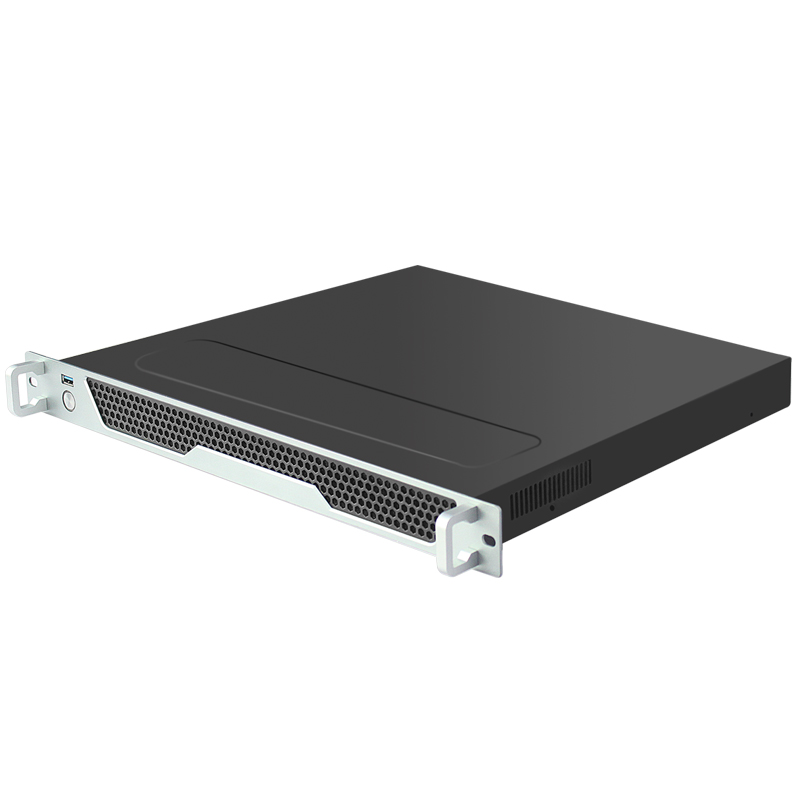

1U | علبة ISC-SC1U400400LD-M 1U Rackmount Case 1U Rackmount | 482×400×44.5 (19.0″×15.7″×1.8″) | 305×245 (12.0″×9.6″) | قرص صلب 2×3.5 بوصة أو 4×2.5 بوصة | 2 | وحدة PSU المرنة | 1.0 | 3.68 | 5.2 | خادم للأغراض العامة | نعم |
|
1U | علبة تثبيت على حامل 1U 1U ISC-SC1U550F-M | 482×550×44.5 (19.0″×21.7″×1.8″) | 305×245 (12.0″×9.6″) | 4×3.5″ قرص صلب 4×3.5″ | 4 | طاقة قياسية 1U 1U | 1.2 | 6.171 | 7.421 | خادم للأغراض العامة | نعم |
|

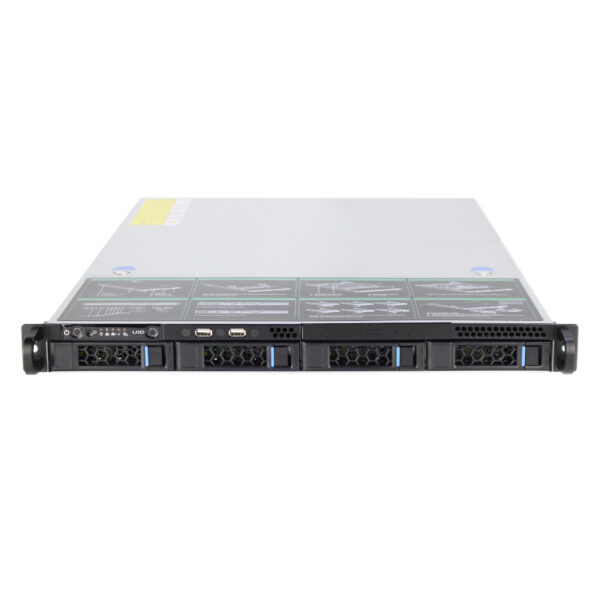

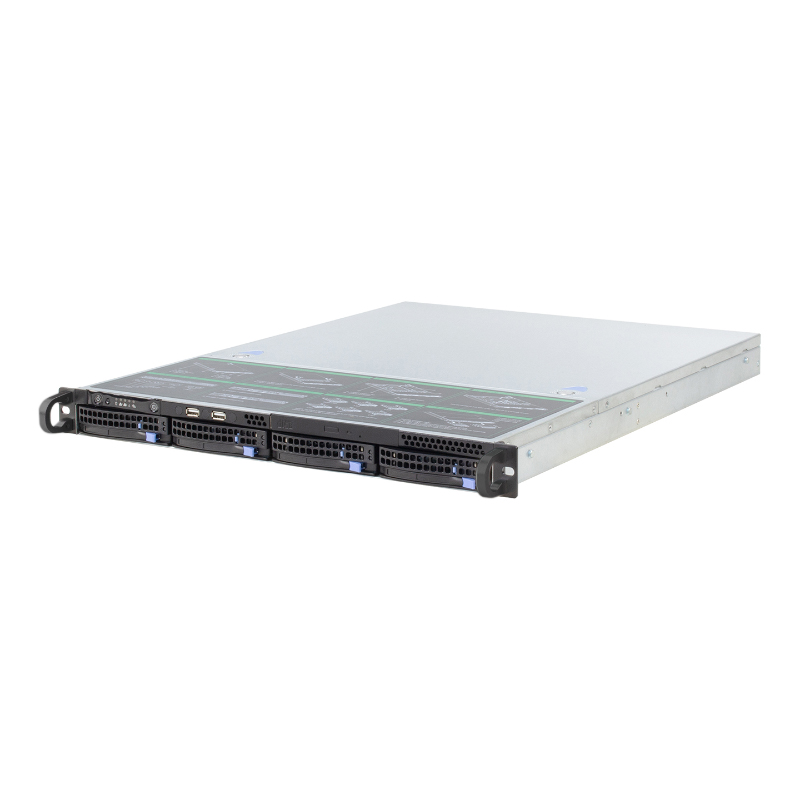

1U | علبة ISC-SC-SC1U560-H4-T 1U Rackmount Case 1U Rackmount | 560×437.5×44.5 (22.0″×17.2″×1.8″) | ≤305×267.5 (≤12.0″×10.5″) | 4 × 3.5 × 3.5 بوصة أمامية + 1 × 2.5 بوصة داخلية (5 إجمالاً) | 3 | طاقة قياسية 1U 1U | 1.0 | غير متاح | غير متاح | التخزين السحابي، والحوسبة السحابية، والبيانات الضخمة، والمراقبة الأمنية | نعم |
|

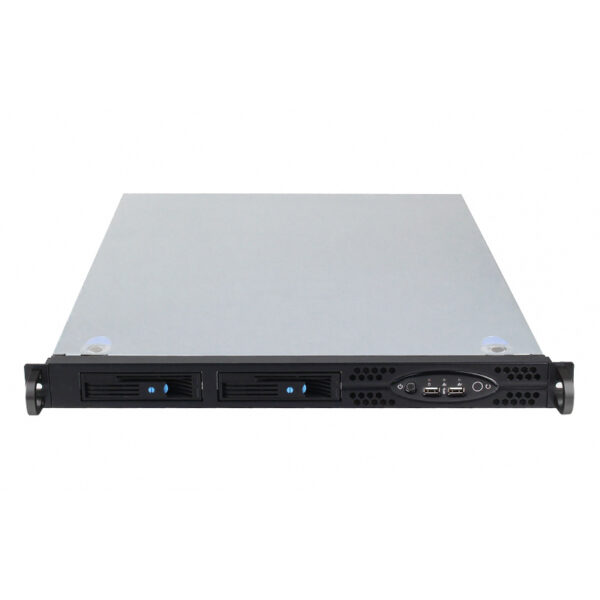

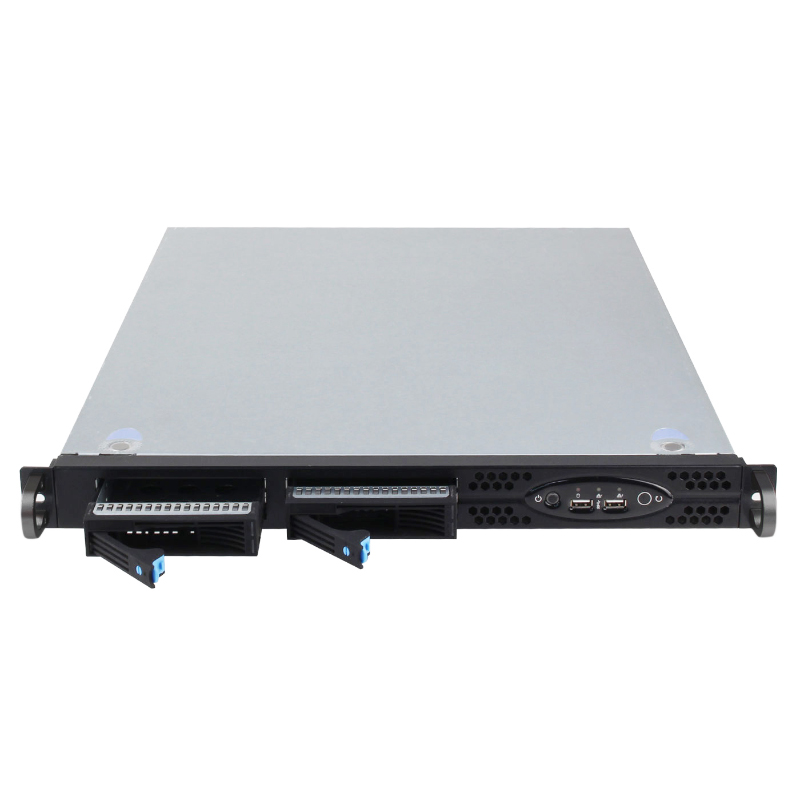

1U | علبة ISC-SC-SC1U580-H2-T 1U Rackmount Case 1U Rackmount | 580×437.5×44 (22.8″×17.2″×1.7″) | ≤305×267.5 (≤12.0″×10.5″) | 2×3.5 بوصة أمامية (متوافقة مع 2.5 بوصة) | 3 | طاقة قياسية 1U 1U | 1.0 | غير متاح | غير متاح | التخزين السحابي والحوسبة السحابية والبيانات الضخمة | نعم |
|

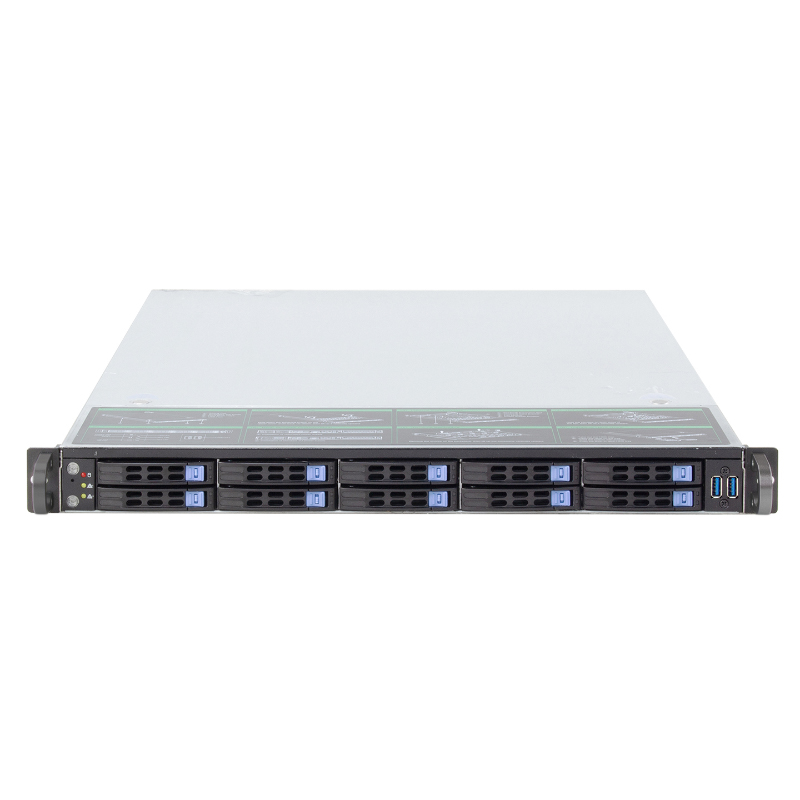

1U | علبة ISC-SC-SC1U650-H10-T ذات الحامل 1U Rackmount | 650×437.5×44 (25.6″×17.2″×1.7″) | ≤305×330 (≤12.0″×13.0″) | 10×2.5″ قرص صلب أمامي 10×2.5″ | 4 | طاقة قياسية 1U 1U | 1.0 | غير متاح | غير متاح | التخزين السحابي والبيانات الضخمة والأمان | نعم |
|
1U | علبة ISC-SC-SC1U650A-H10-T ذات الحامل 1U Rackmount | 650×437.5×44 (25.6″×17.2″×1.7″) | ≤305×330 (≤12.0″×13.0″) | 10×2.5″ قرص صلب أمامي 10×2.5″ | 6 | وحدة تزويد بالطاقة زائدة عن الحاجة سوبر مايكرو 500 وات | 1.0 | غير متاح | غير متاح | التخزين السحابي والحوسبة السحابية والبيانات الضخمة | نعم |
|

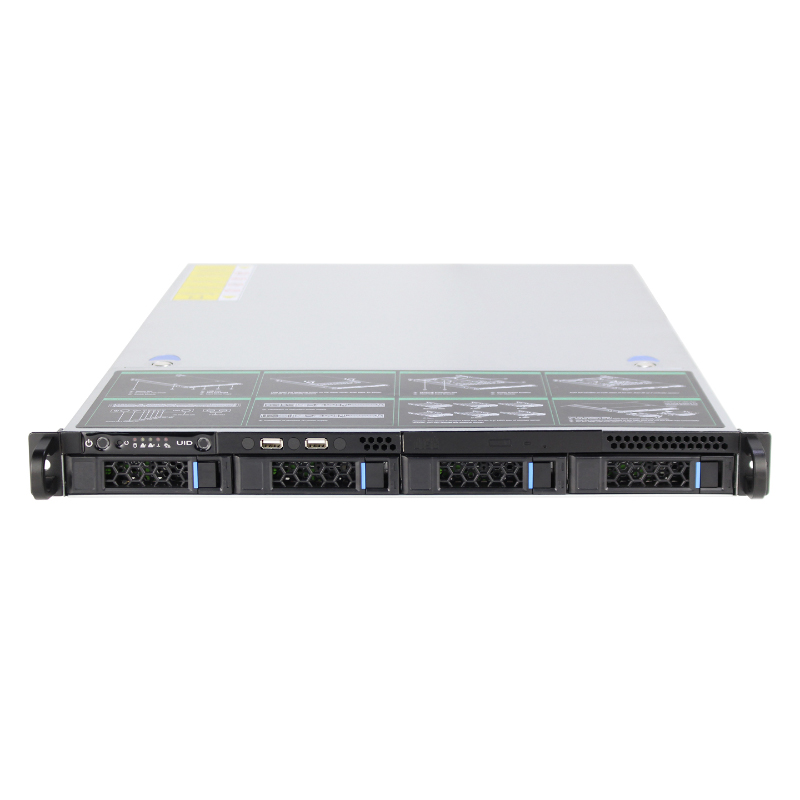

1U | علبة ISC-SC-SC1U650A-H4-T ذات الحامل 1U Rackmount | 650×437.5×44.5 (25.6″×17.2″×1.8″) | ≤347×330 (≤13.7″×13.0″) | 4 × 3.5 × 3.5 بوصة أمامية + 1 × 2.5 بوصة داخلية (5 إجمالاً) | 4 | 1U قياسي 1U (بطول يصل إلى 300 مم لوحدة تزويد بالطاقة) | 1.0 | غير متاح | غير متاح | التخزين السحابي، والحوسبة السحابية، والبيانات الضخمة، والمراقبة الأمنية | نعم |
|

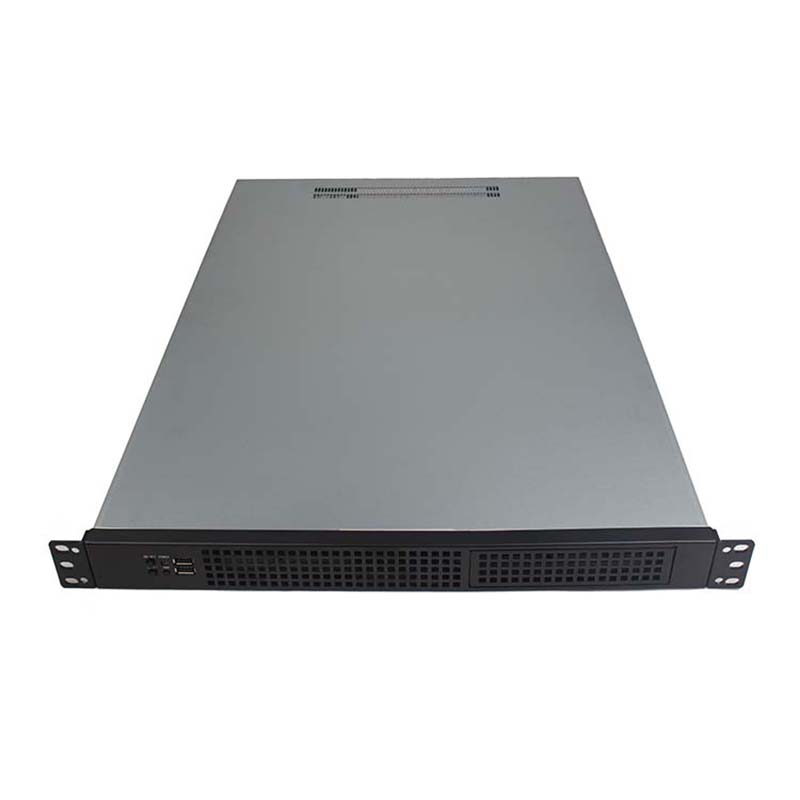

1U | علبة ISC-SC-SC1U650F-M 1U Rackmount Case 1U Rackmount | 482×650×44.5 (19.0″×25.6″×1.8″) | 305×340 (12.0″×13.4″) | قرص صلب مقاس 4×3.5 بوصة أو 8×2.5 بوصة | 4 | وحدة تزويد بالتيار الكهربائي الخاصة 1U بعرض 100 مم | 1.2 | 6.94 | 8.83 | خادم للأغراض العامة | نعم |
|

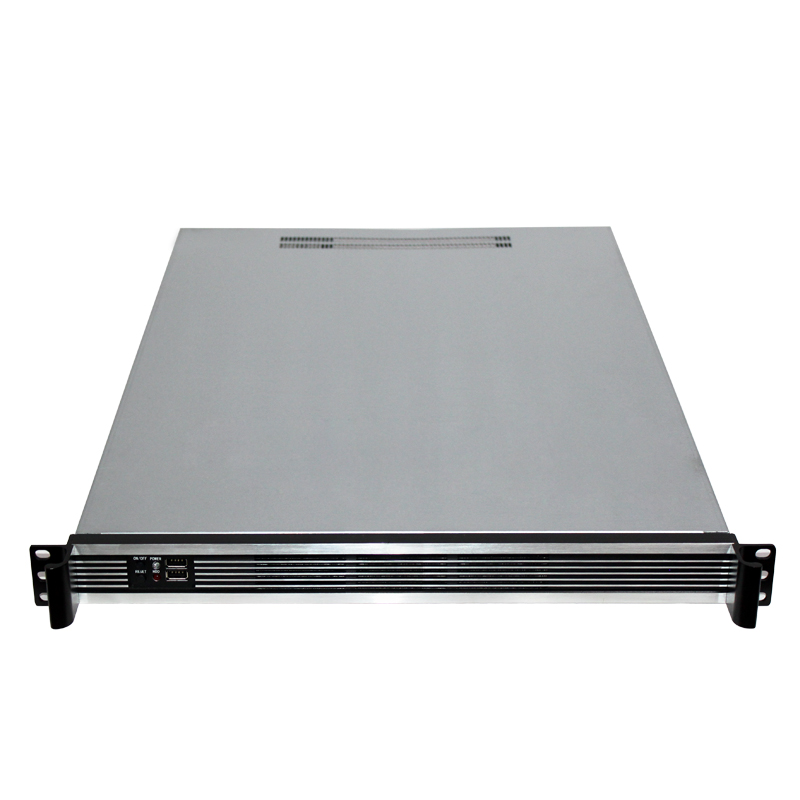

1U | علبة ISC-SC-SC1U650L2-M 1U Rackmount Case 1U Rackmount | 482×650×44.5 (19.0″×25.6″×1.8″) | 305×340 (12.0″×13.4″) | قرص صلب 4×3.5 بوصة أو 4×2.5 بوصة | 4 | طاقة قياسية 1U 1U | 1.2 | غير متاح | غير متاح | الخادم | نعم |
|

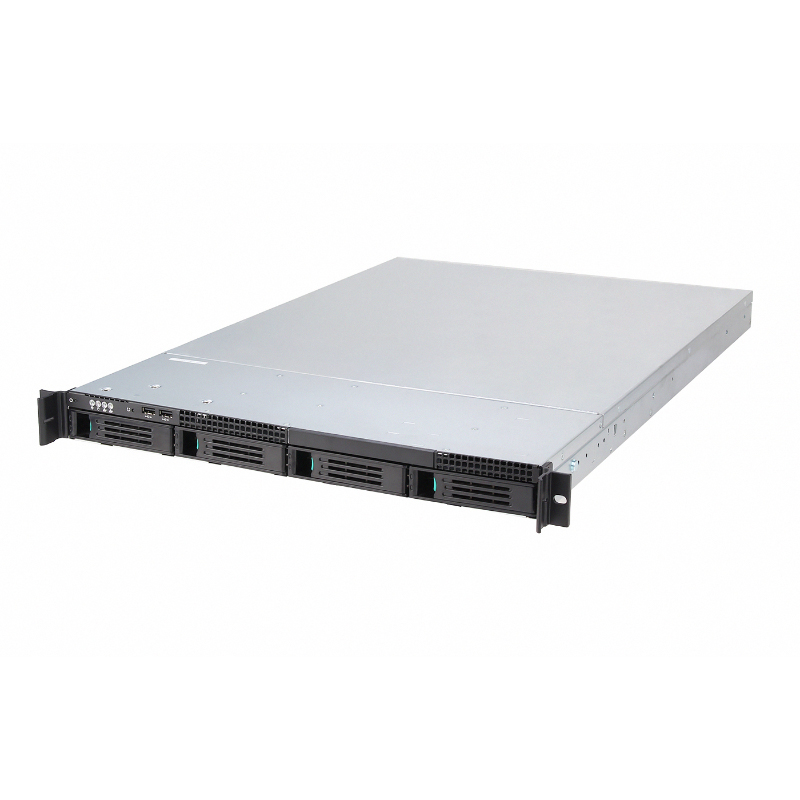

1U | علبة ISC-SC-SC1U670-H4-T 1U Rackmount Case 1U Rackmount | 670×432×44 (26.4″×17.0″×1.7″) | ≤305×330 (≤12.0″×13.0″) | 4×3.5″ قرص صلب أمامي 4×3.5″ | 4 | طاقة قياسية 1U 1U | 1.0 | غير متاح | غير متاح | التخزين السحابي والحوسبة السحابية والبيانات الضخمة | نعم |
|

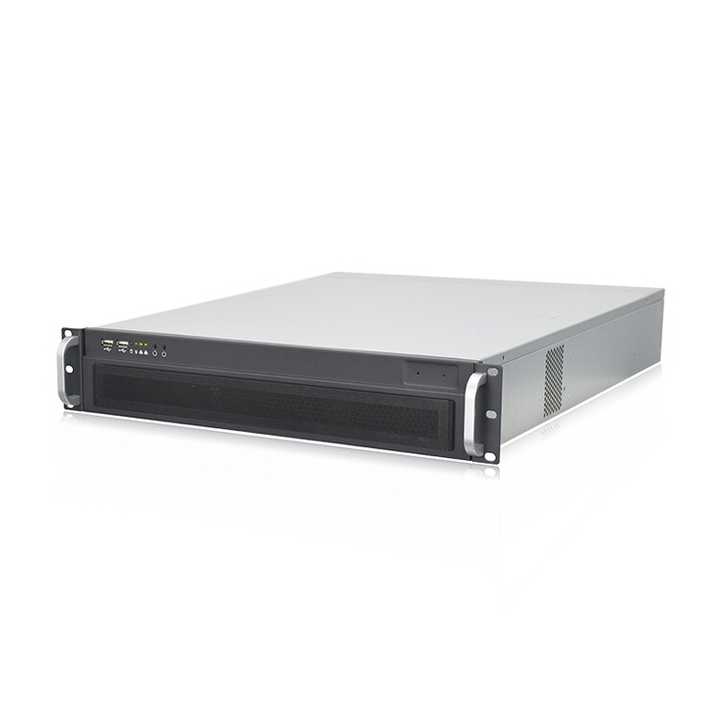

2U | علبة ISC-RC2550A-L 2U Rackmount Case 2U Rackmount | 550×430×89 (21.7″×16.9″×3.5″) | ATX/ميكرو ATX/ميني ITX | 6×3.5″ أو 4×3.5″+2×2.5″ | 3 | وحدة تزويد بالطاقة قياسية واحدة / ATX | 1.0 | غير متاح | 11.0 | غير متاح | نعم |
|

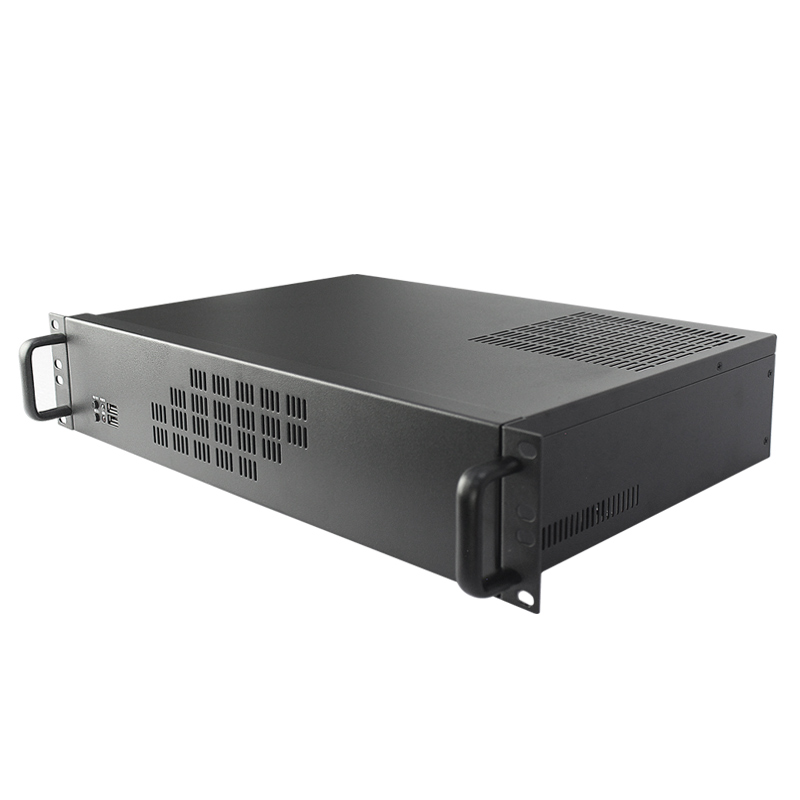

2U | علبة ISC-RC2U300U300F-M 2U Rackmount Case ISC-RC2U300F-M | 482×300×89 (19.0″×11.8″×3.5″) | Micro ATX (245×245) (9.6″×9.6″) | قرص صلب مقاس 4×3.5 بوصة أو 7×2.5 بوصة | 2 | وحدة تزويد الطاقة ATX PSU | 1.0 | 4.8 | 6.0 | غير متاح | نعم |
|

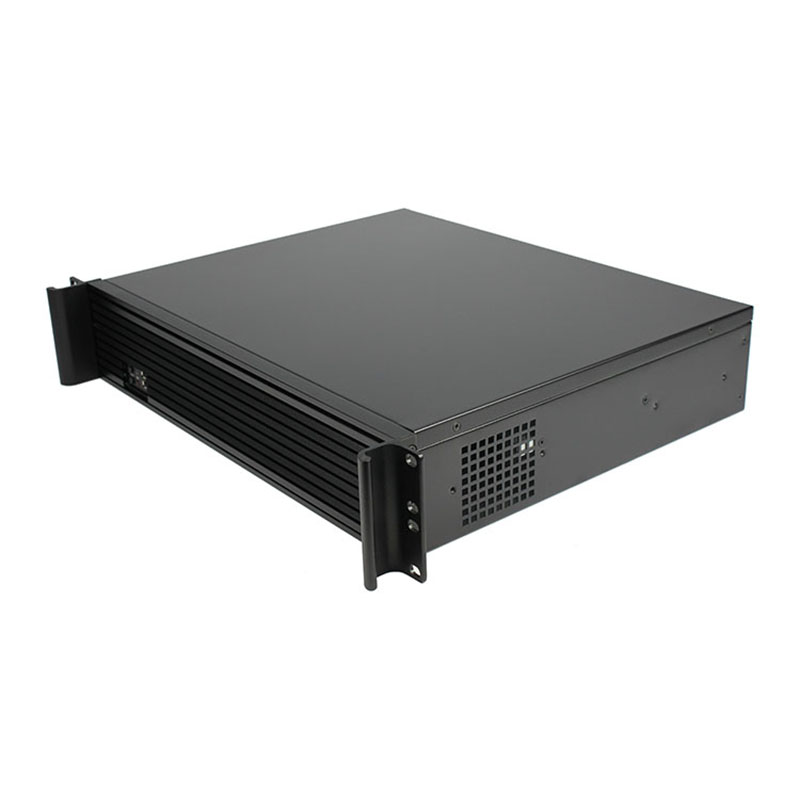

2U | علبة ISC-RC2U310L-M 2U Rackmount Case ISC-RC2U310L-M | 482×350×89 (19.0″×13.8″×3.5″) | 305×245 (12.0″×9.6″) | 2×2.5″ أو 1×3.5″ قرص صلب 2×2.5″ أو 1×3.5″ | 2 | وحدة PSU خاصة 1U 1U | 1.2 | 4.2 | 5.7 | غير متاح | نعم |
|

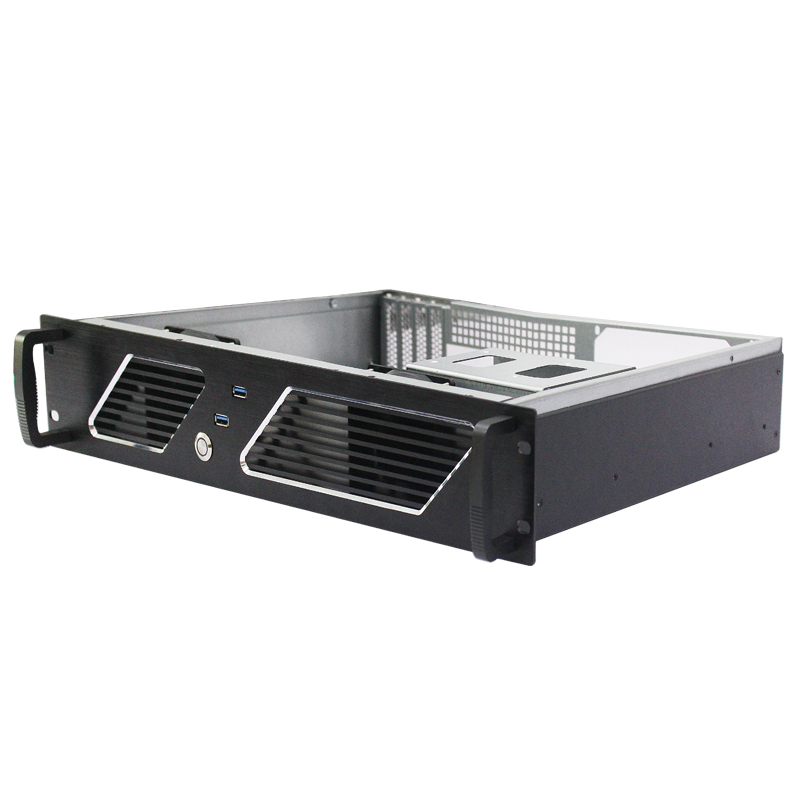

2U | علبة ISC-RC2U350E-M ذات الحامل 2U Rackmount | 482×350×89 (19.0″×13.8″×3.5″) | 245×245 (9.6″×9.6″) | قرص صلب 3×3.5 بوصة | 2 | وحدة تزويد الطاقة ATX PSU | 1.2 | 5.9 | 6.3 | غير متاح | نعم |
|

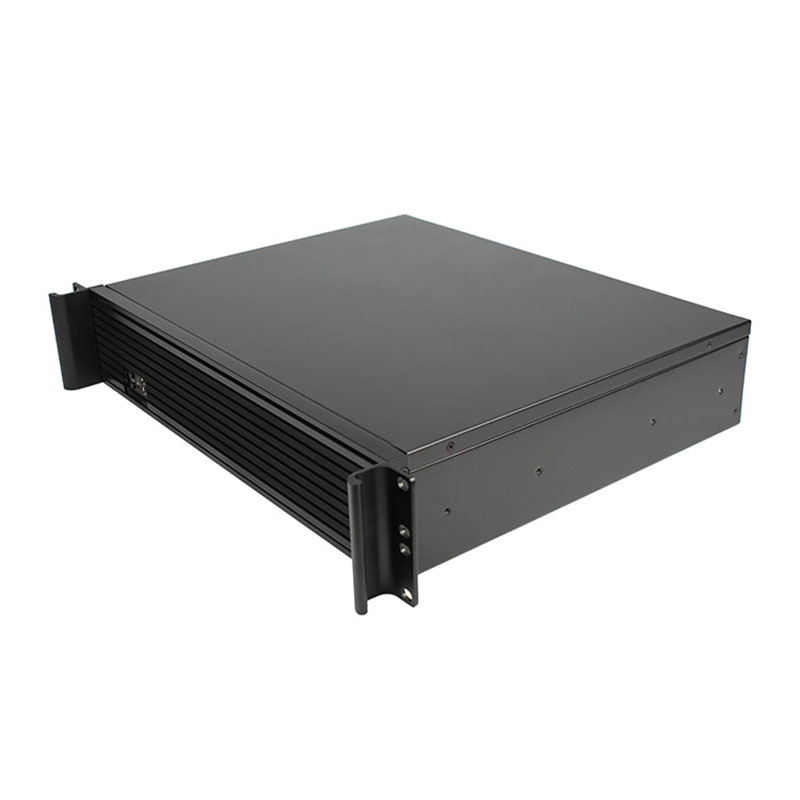

2U | علبة ISC-RC2U350L-M 2U Rackmount Case ISC-RC2U350L-M | 482×350×89 (19.0″×13.8″×3.5″) | 245×245 (9.6″×9.6″) | قرص صلب 3×3.5″ أو 2×2.5″+1×3.5″ أو 2×2.5″+3.5″ | 2 | وحدة تزويد الطاقة ATX PSU | 1.2 | 4.253 | 5.797 | غير متاح | نعم |
|

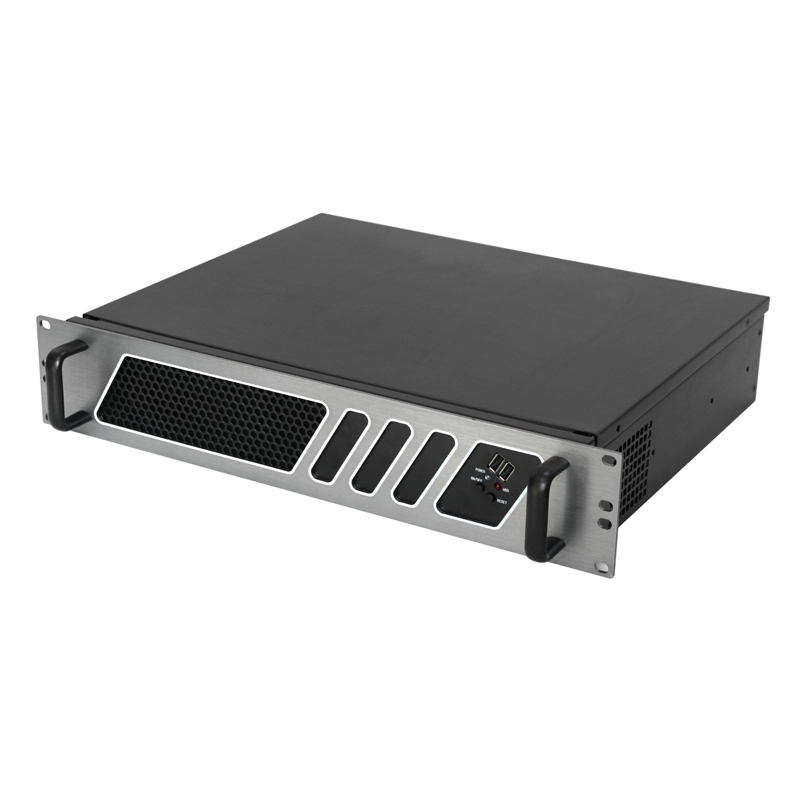

2U | علبة ISC-RC2U Rackmount 2U Rackmount ISC-RC2U350L1-M | 482×350×89 (19.0″×13.8″×3.5″) | 245×245 (9.6″×9.6″) | قرص صلب 3×3.5 بوصة | 2 | وحدة تزويد الطاقة ATX PSU | 1.2 | 4.383 | 5.927 | غير متاح | نعم |
|

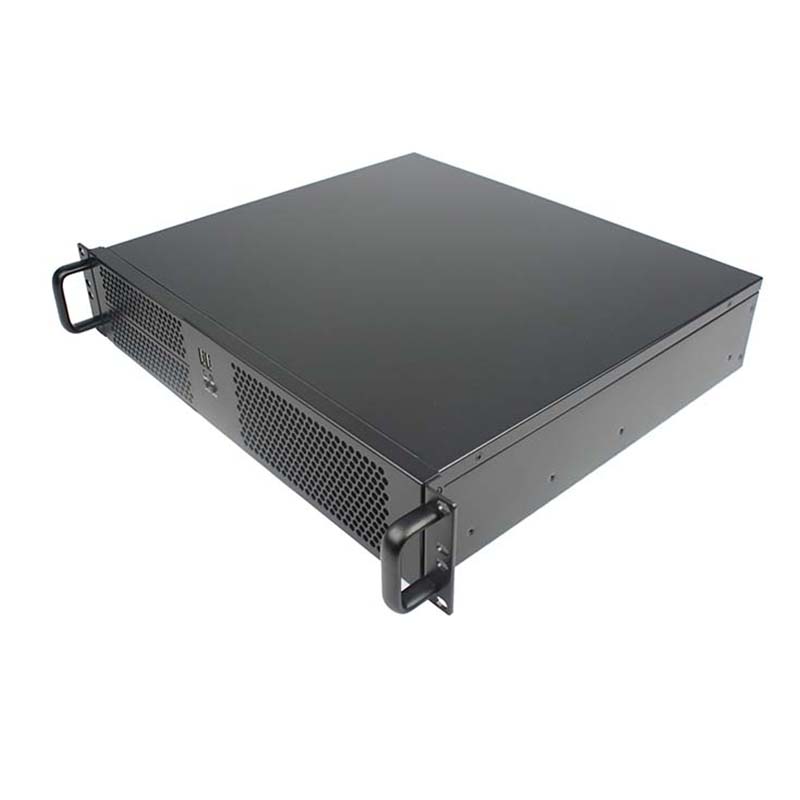

2U | علبة ISC-RC2U390F-M 2U Rackmount Case ISC-RC2U390F-M | 482×390×133 (19.0″×15.4″×5.2″) | 305×245 (12.0″×9.6″) | قرص صلب 8×3.5 بوصة | 2 | وحدة تزويد الطاقة ATX PSU | 1.0 | 5.85 | 7.58 | غير متاح | نعم |

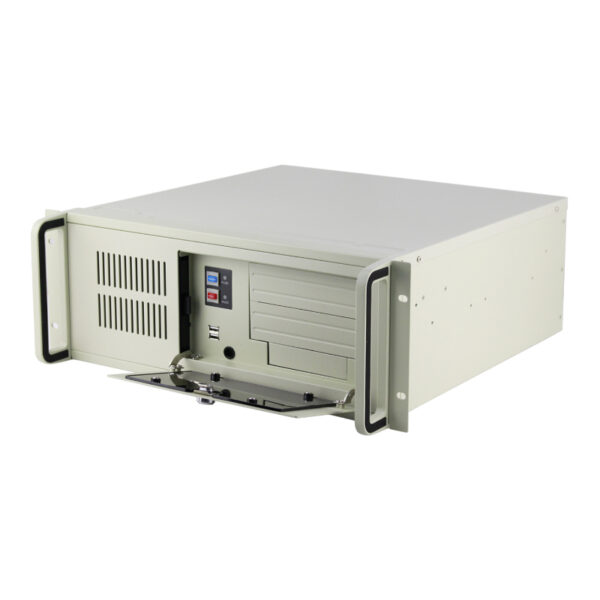

ISC-RC4U508F-T is a 4U SGCC steel rackmount case with 1 × 3.5-inch…
4U rackmount chassis with ATX, M-ATX and ITX support, three 3.5-inch HDD…
The ISC RC4U610L T is a 4U SGCC rackmount chassis with one…

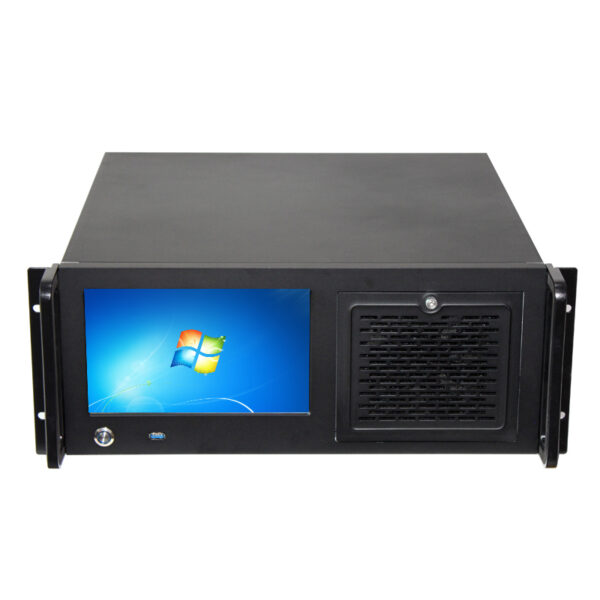

The ISC-RC4U450C-M is a 4U SGCC steel rackmount case with 7 full-height…
The ISC RC4U610P T is a 4U rackmount chassis with two 3.5-inch…
ISC-RC4U810E-T is a 4U rackmount server chassis with 1×3.5-inch and 2×5.25-inch bays,…
ISC-RC3U390L-M is a 3U rackmount server chassis with 11 x 3.5-inch drive…

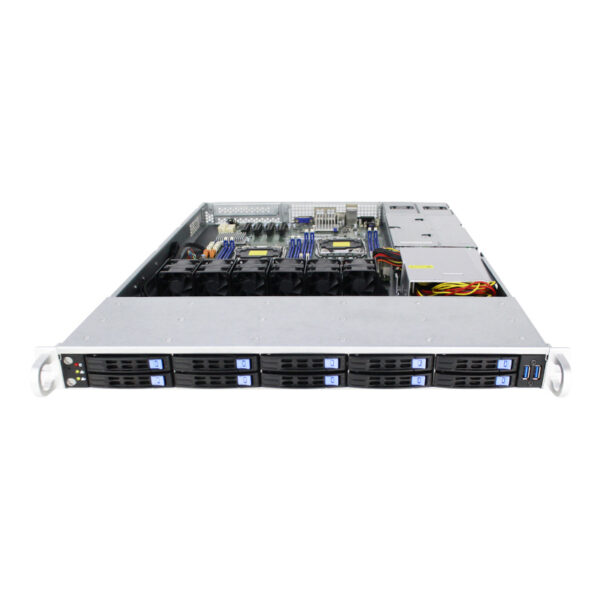

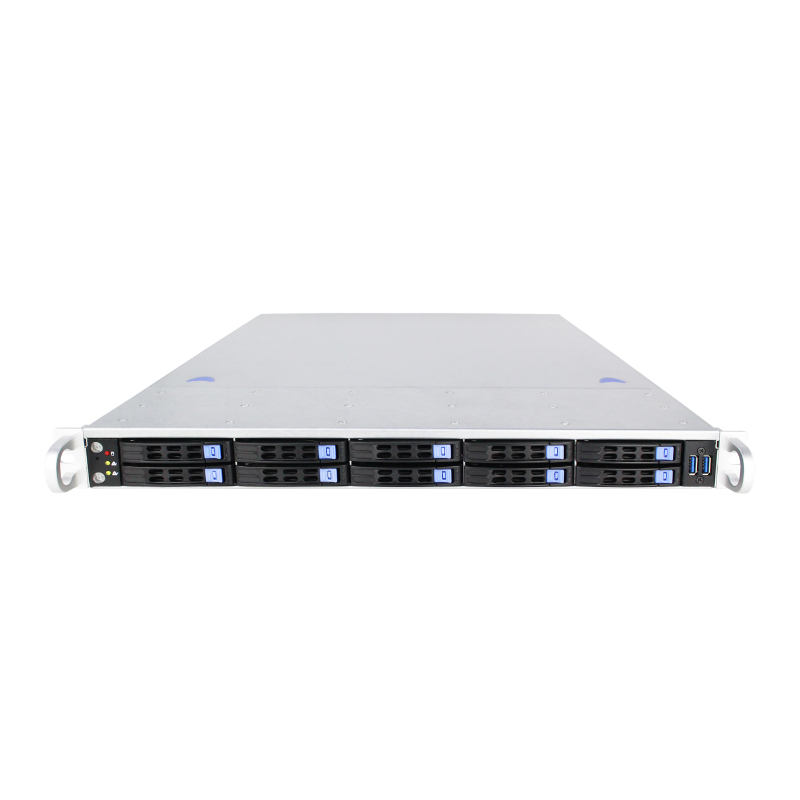

ISC-SC1U650A-H10-T is a 1U SGCC steel rackmount chassis with 10 front 2.5-inch…
Compact 1U rackmount server chassis with two front 3.5-inch bays compatible with…
1U rackmount server chassis with four front-access removable drive trays, rack handles…

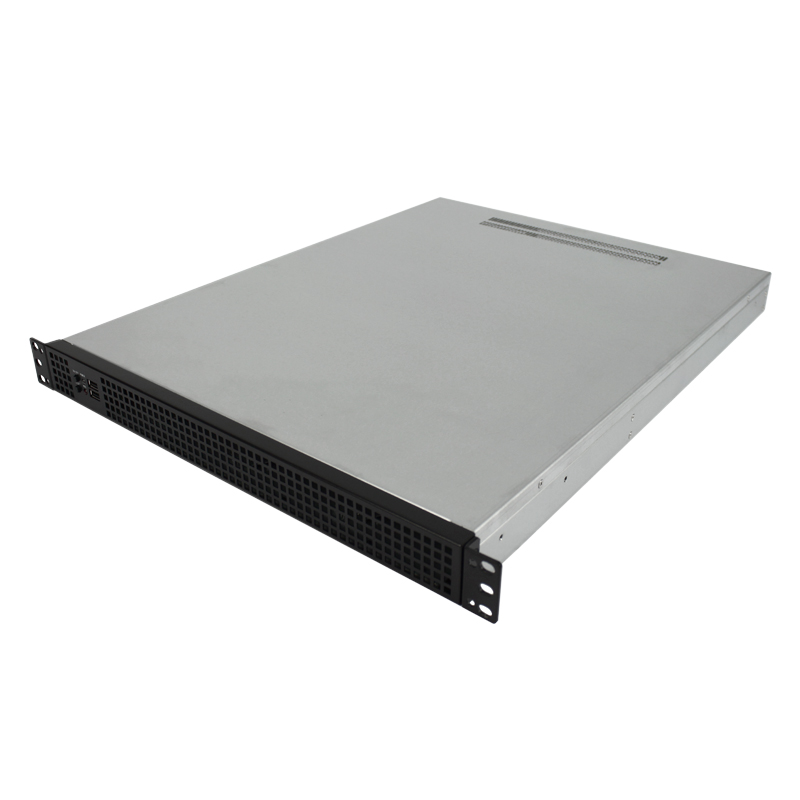

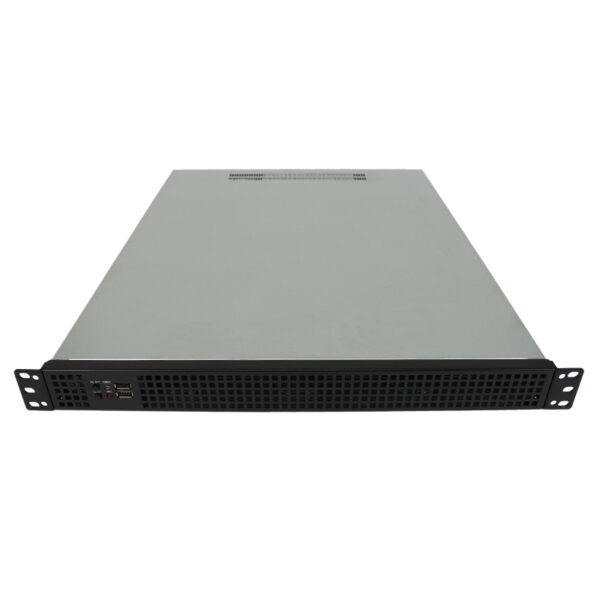

ISC-SC1U550F-M is a 1U rackmount chassis for 12 x 9.6-inch motherboards, four…

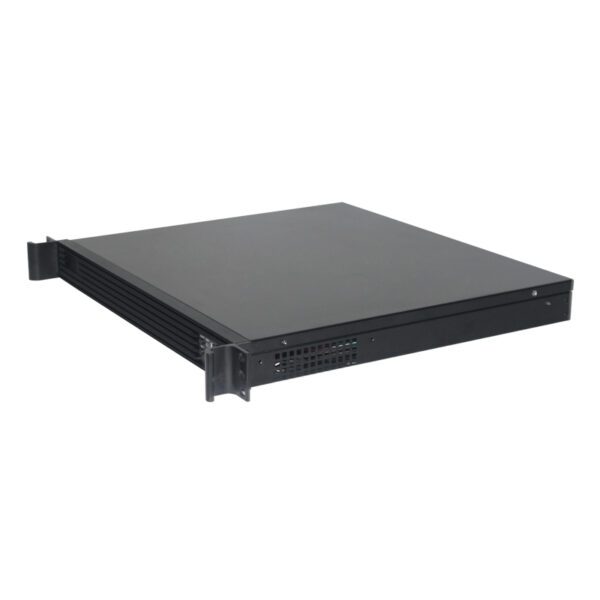

ISC-SC1U390L-M is a compact 1U rackmount server chassis for 12 x 9.6…
The right height balances available vertical space against component clearance, expansion, airflow, and service needs. One rack unit, written as “U,” equals 1.75 inches of vertical space.
A 1U platform maximizes equipment packing for space-constrained deployments but usually requires low profile cards and compact cooling. A 2U design adds room for storage and expansion, while 3U and 4U formats generally provide more clearance for full-height hardware and easier maintenance. Taller formats can be useful where additional drives, specialized electronics, or separation between heat-producing parts matters. Confirm depth as carefully as height, especially in shallow horizontal racks.
This format is often selected when a system needs broad component choice without moving to an unusually tall housing. Its height can support an ATX motherboard, full-height expansion cards, larger cooling paths, and accessible cabling, depending on the internal layout.
A well-planned 4U chassis may accommodate several 3.5-inch storage devices, a 5.25-inch bay, and multiple add-in cards. Compared with thinner platforms, it can provide more drive capacity and maintenance access around connectors, fans, and power hardware. The result is not automatically better performance; the value comes from matching usable space to the required functionality.
Start with the processor architecture, slot count, card dimensions, and I/O required by the application. A conventional ATX design suits many general-purpose builds, while a single board computer can connect to a passive backplane when the project requires a different slot topology or field-replaceable compute board.
PICMG specifications include system host board interfaces designed to connect PCIe peripherals through backplanes. Confirm that the selected motherboard, risers, slot hardware, and add-in devices are electrically and mechanically compatible. Board computers, graphics accelerators, frame grabbers, motion cards, and network adapters may also affect slot spacing, cable routing, and cooling fan placement.
Reliability depends on moving heat, delivering stable power, securing storage, and making routine service practical. Airflow should travel through clear ventilation paths, with fan size and placement selected for the installed heat load rather than the empty chassis.

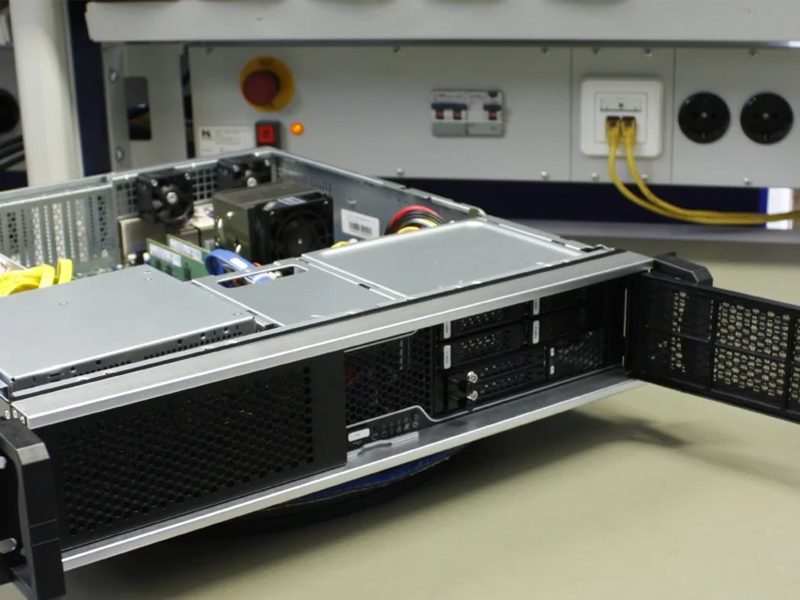

PSU wattage should cover the processor, cards, drives, startup demand, and appropriate design margin. Depending on the system design, power supplies may be fixed or hot-swappable. A front drive bay can simplify HDD storage service; removable filters help control dust; and front panel USB ports reduce the need to reach behind the system. Features such as a lockable door, tool-conscious access, and correctly positioned 120mm fans can keep components cool and enable easy maintenance.
Choose 1U or 2U for higher rack density, and 3U or 4U when you need more drives, expansion cards, cooling space, or easier servicing. Always verify rack depth and component dimensions.
A 4U chassis can provide space for ATX motherboards, full-height cards, multiple drives, and flexible power options. Exact compatibility depends on the selected model.
Available configurations may support ATX, Micro-ATX, Mini-ITX, industrial motherboards, or PICMG-style backplanes. Confirm board dimensions, mounting points, and expansion-slot requirements before ordering.
Review airflow direction, fan locations, drive heat, PSU format, wattage, and redundancy requirements. The final cooling and power design should match the installed processor, storage, and expansion cards.
Yes. OEM/ODM options include custom dimensions, port placement, airflow design, drawings, prototyping, and volume production based on your technical requirements.
Share your rack depth, motherboard form factor, expansion-card count, storage layout, PSU requirements, cooling approach, front-access needs, and operating environment. iSTONECASE will assess component fit, airflow, serviceability, and future expansion to recommend a suitable standard chassis or develop a custom OEM/ODM configuration for your industrial computing system.
