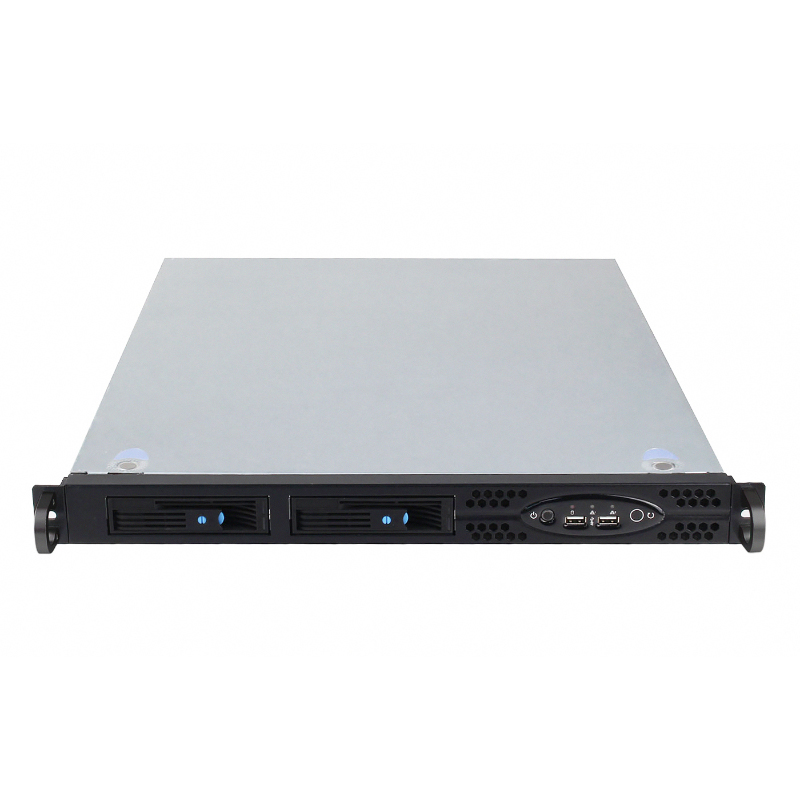

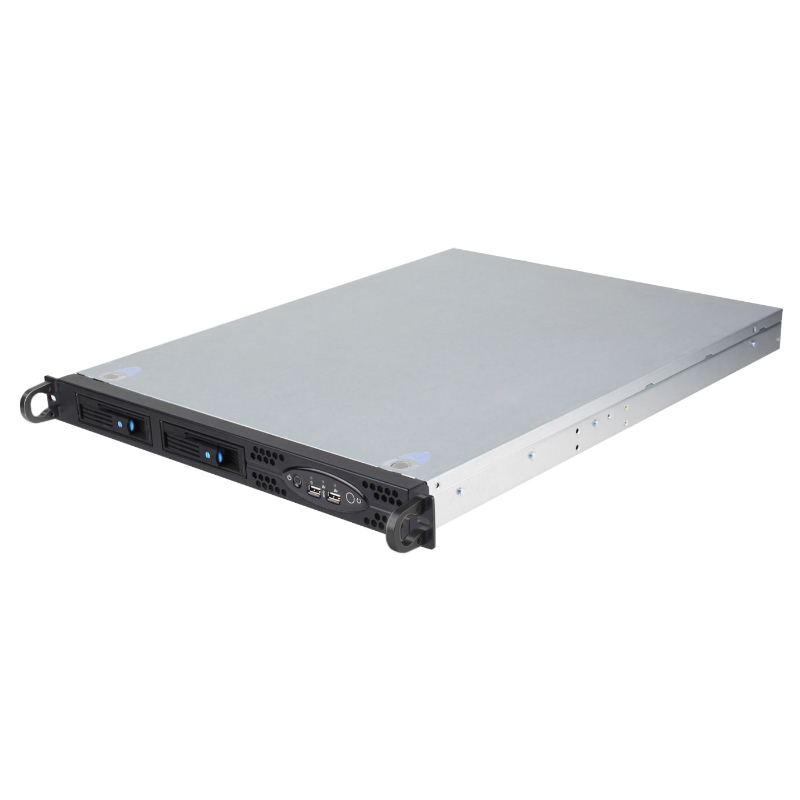

Compact 1U rackmount server chassis with two front 3.5-inch bays compatible with 2.5-inch drives, SATA backplane support, one full-height PCI/PCIe slot, and 1U PSU compatibility. Designed for data center, cloud, enterprise IT, OEM/ODM, and project procurement.

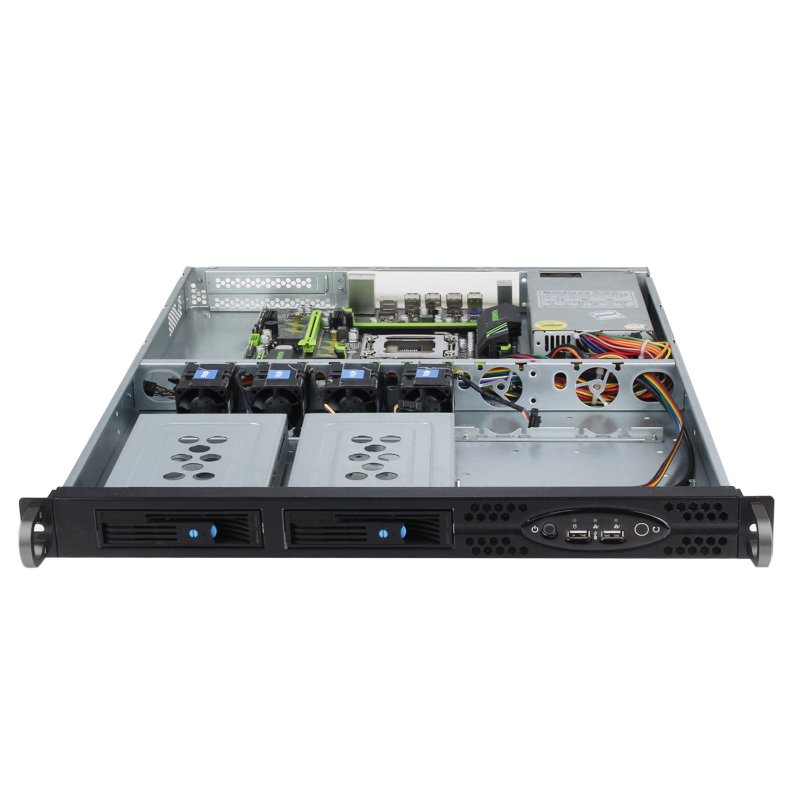

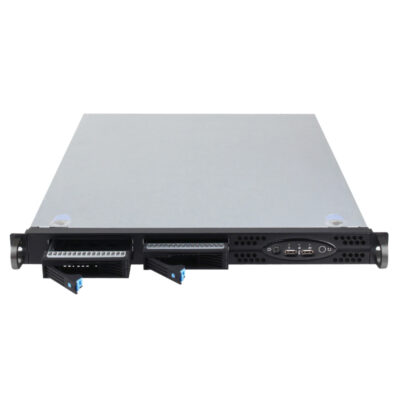

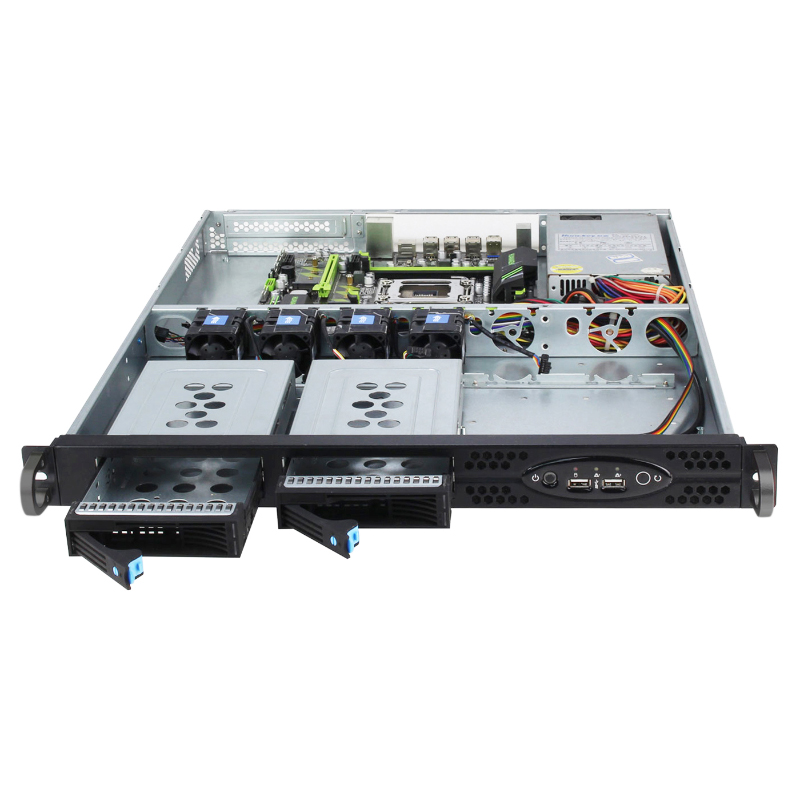

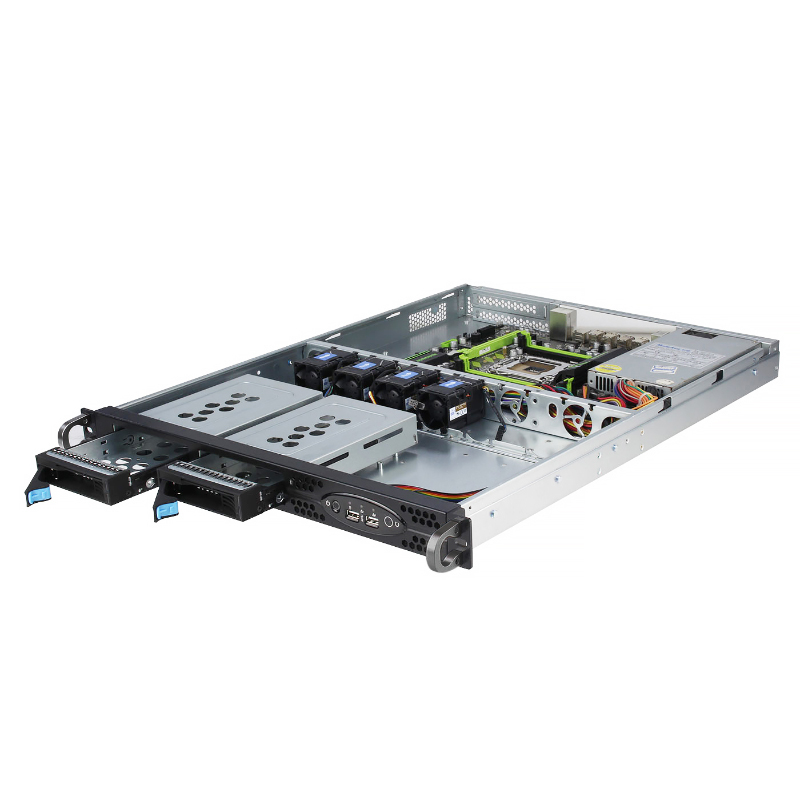

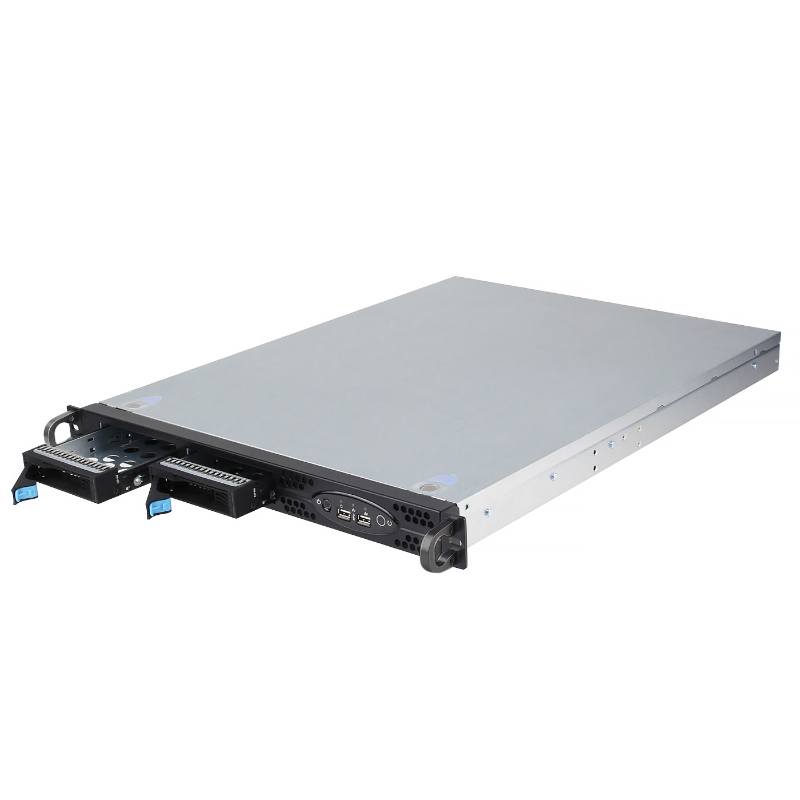

Built from 1.0 mm SGCC steel with a black treated surface, the ISC-SC1U580-H2-T has a compact 1U rackmount form measuring 580 x 437.5 x 44 mm. Front-access trays, removable cover access, and three hot-swap 4056/4028 fans, with an optional fourth, support airflow and routine maintenance.

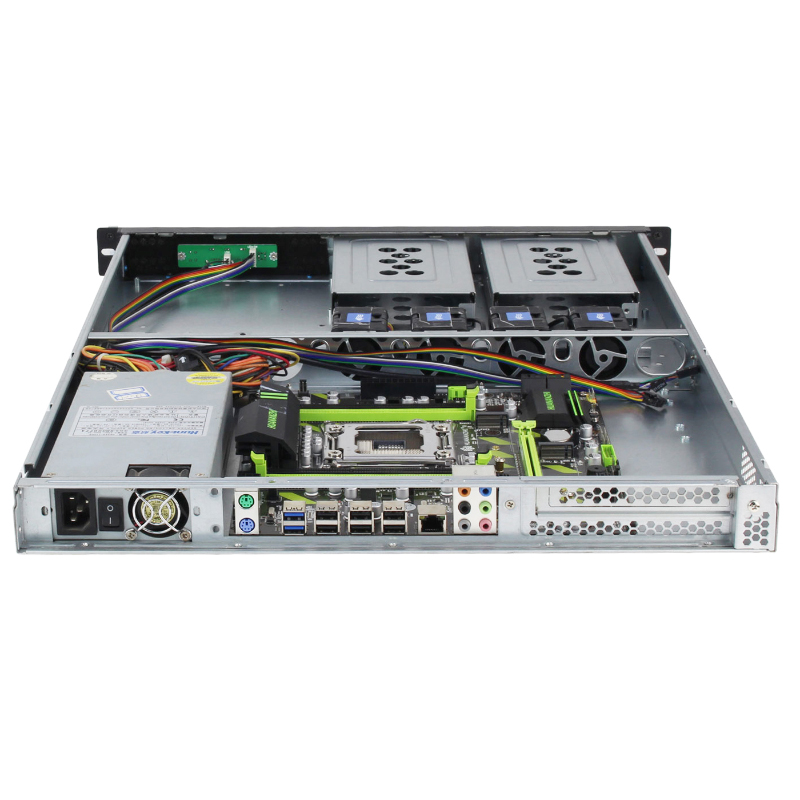

The chassis supports motherboards up to 12 x 10.5 inches, two front 3.5-inch bays compatible with 2.5-inch drives, a 6 Gb/s SATA backplane, one full-height PCI/PCIe slot, and a standard 1U PSU format. It suits cloud storage, data centers, big-data systems, enterprise IT, integrators, OEM/ODM projects, distribution, and bulk procurement; confirm rail compatibility before ordering.
| Modell | ISC-SC1U580-H2-T |
|---|---|
| Größe des Fahrgestells | 580(L)*437.5(W)*44(H)mm |
| Hauptmaterial | Hochwertige, umweltfreundliche, fingerabdruckresistente 1,0 mm SGCC |
| Oberflächenbehandlung | Die Griffe und Aufhängeösen sind sandgestrahlt und glänzend schwarz oxidiert, die Außenfläche der Frontplattenbaugruppe ist mit Sandkornschwarz (KC-31084) besprüht, die Innenteile und die Heckscheibe sind nicht besprüht. |
| Harddisk | 2 front 3.5" HDD compatible 2.5" HDD/SSD |
| Festplatten-Backplane | 6Gb/s SATA-Backplane |
| Position des Ventilators | Standardmäßig 3 Hot-Swap-Lüfter 4056/4028, optional bis zu 4 |
| Geeignetes Motherboard | 12"x10.5" and smaller motherboards |
